Durapac RPLC Series Single Acting Pancake Lock Nut Cylinders

The RPLC series is a single acting load return pancake locking collar cylinder.

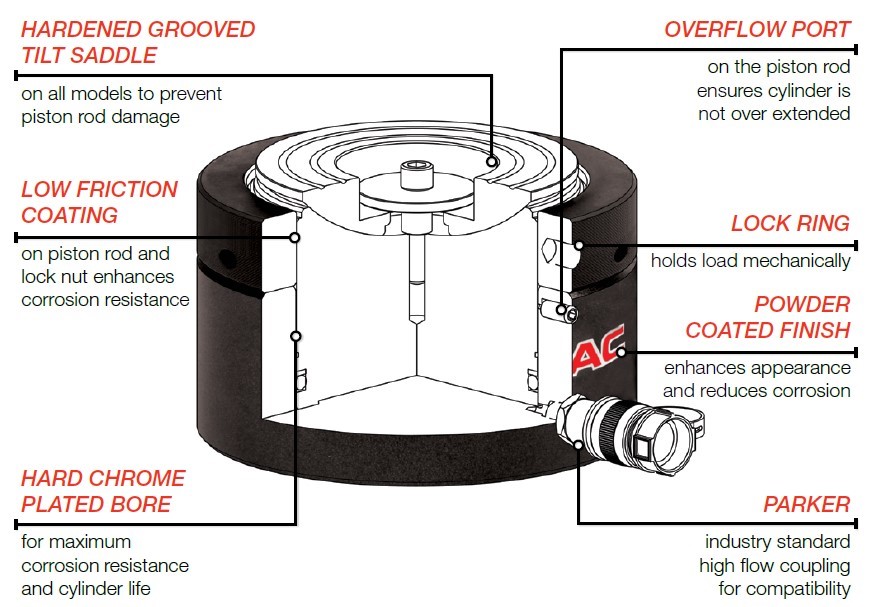

  • It is a compact design that features a threaded piston rod and lock ring.
  • When the lock ring is screwed down and engaged with the cylinder body the load can be held mechanically for extended periods.
  • Hoses and pumps can be removed until lowering is required.
  • These cylinders are ideally suited to bridge construction and maintenance.
  • All RLPC series cylinders feature a hard chrome bore for maximum corrosion resistance and a special coating on the piston rod and lock ring to resist corrosion and abrasion.
  • Integral tilt saddle and an oil overflow port which restricts piston stroke is standard on all models.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Durapac RPLC Series

Cylinder Capacity: 1027kN

Oil capacity: 733cc

Cylinder effective area: 146.8cm²

Closed height: 137mm

Outside diameter: 175mm

Piston diameter: TR136x6

Weight: 26kg

Saddle Diameter: 126mm

Saddle Protrusion: 8mm

Tilt saddle maximum angle: 5°

Locking collar

Load return

Suitable for lifting heavy loads.

Can be locked mechanically to hold loads over long periods.
