SJ5154
,

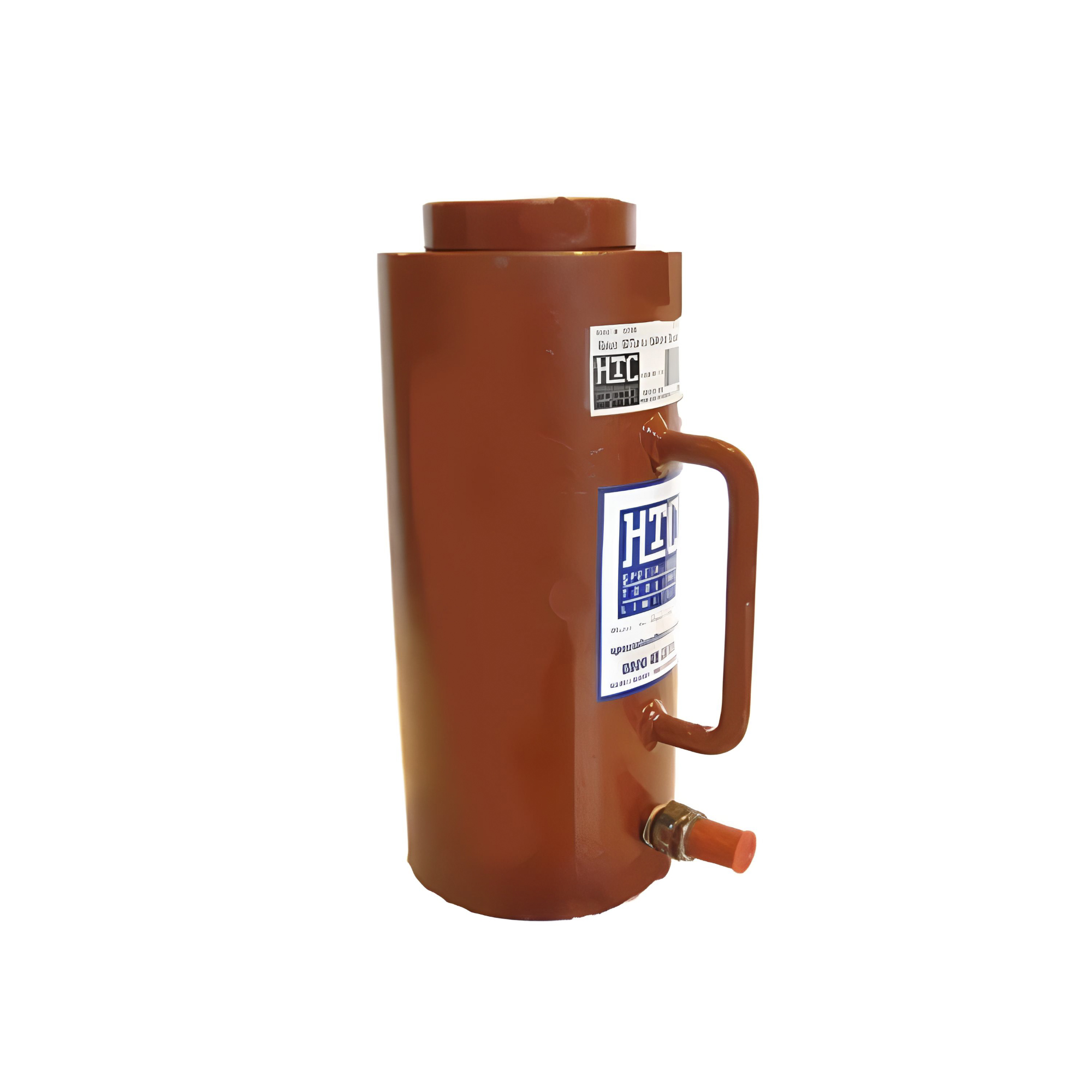

SJ5154 50 Ton Ram 300mm-CH 154mm-ST 1104CC

Single acting, spring return rams are suitable for most jacking and pressing applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 1104cc
Cylinder effective area 71.6cm²
Closed height 300mm
Stroke 154mm
Outside diameter 128mm
Piston diameter 88.5mm
Weight: 26.5kg
