RSLC502
,

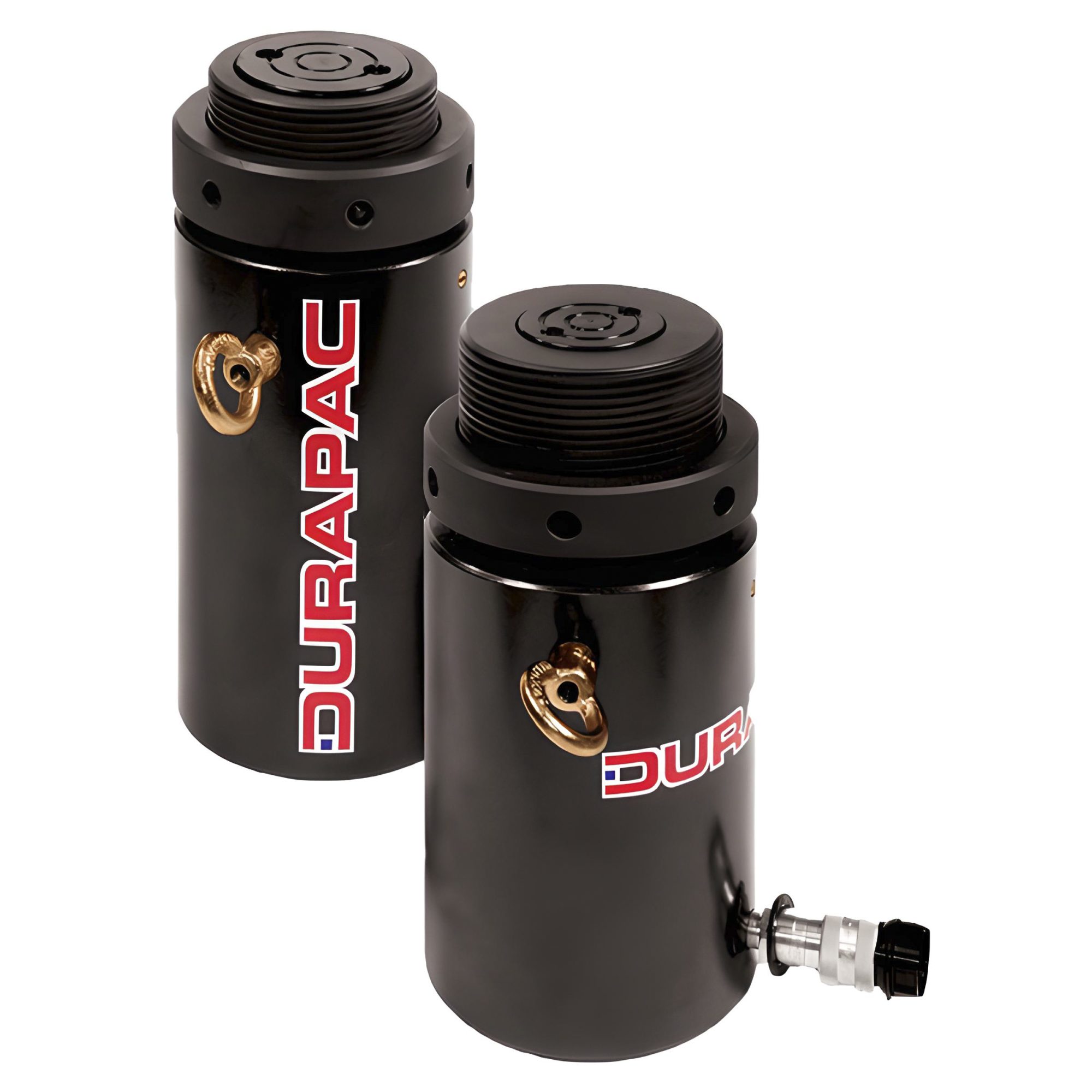

RSLC502 50 Ton Lock Collar Cylinder 164mm-CH 50mm-ST

Locking cylinders enable operators to lift and mechanically lock loads. Ideal for applications when loads need to be held for long periods of time.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity: 355cc

Stroke: 50mm

Cylinder effective area: 70.9cm²

Closed height: 164mm

Outside diameter: 125mm

Piston diameter: TR95x4

Weight: 15kg

Locking collar

Load return

Suitable for lifting heavy loads

Can be locked mechanically to hold loads over long periods
