RLP1002
,

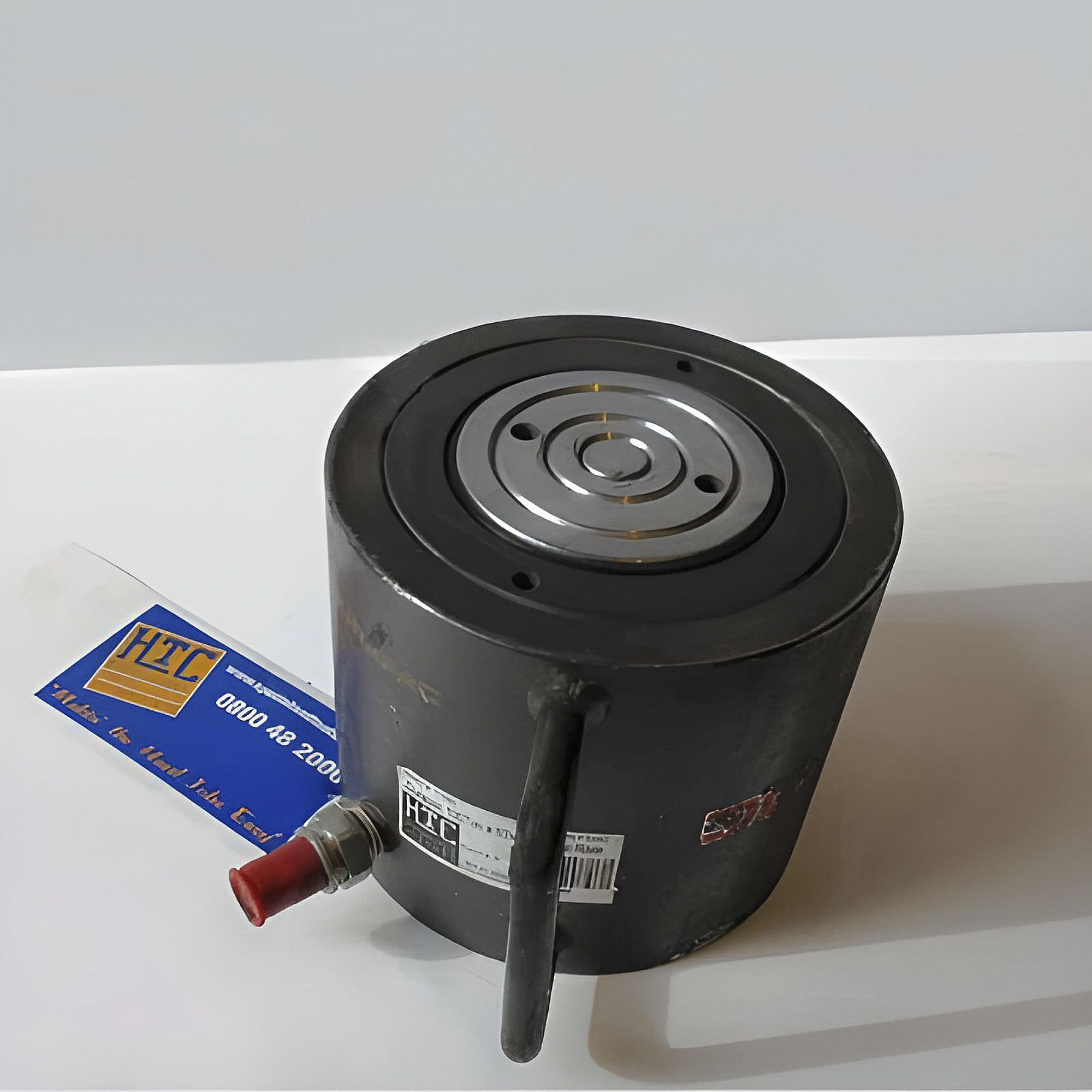

RLP1002 100 Ton Ram 141mm-CH 57mm-ST 722CC

Low height rams are very similar to flat jacks, but are slightly taller and offer more stroke. Ideal for situations where limited space or limited clearance is available.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 722cc
Cylinder effective area 127cm²
Closed height 141mm
Outside diameter 165mm
Piston diameter 92.2mm
Weight: 22.7kg
Heavy duty spring for quick return
