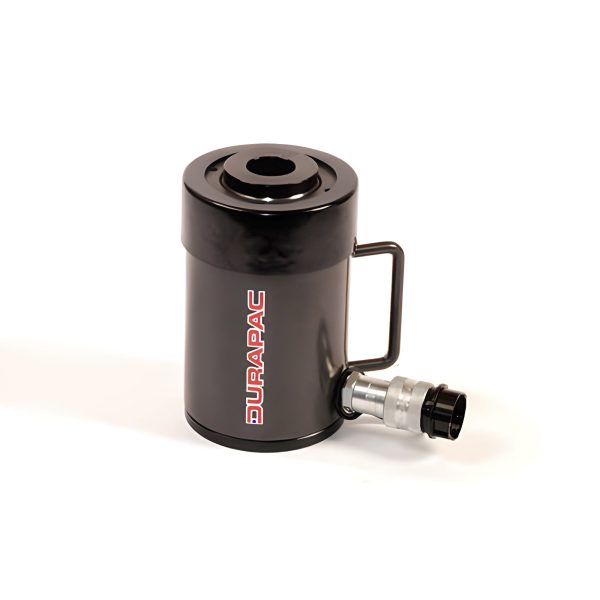

RHS306 30 Ton Ram
,

RHS306 30 Ton Ram 330mm-CH 155mm-ST Hollow Ram

Hollow cylinders / hollow rams have the added advantage of being able to fit a shaft through the middle of the cylinder. Ideal for stress testing, bearing removal or puller applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 720cm3
Cylinder effective area 46.6cm²
Closed height 330mm
Outside diameter 114mm
Piston diameter 63.5mm
Centre hole diameter 33.3mm
Stroke 155mm
Weight: 21.8kg
Heavy duty spring for quick return
