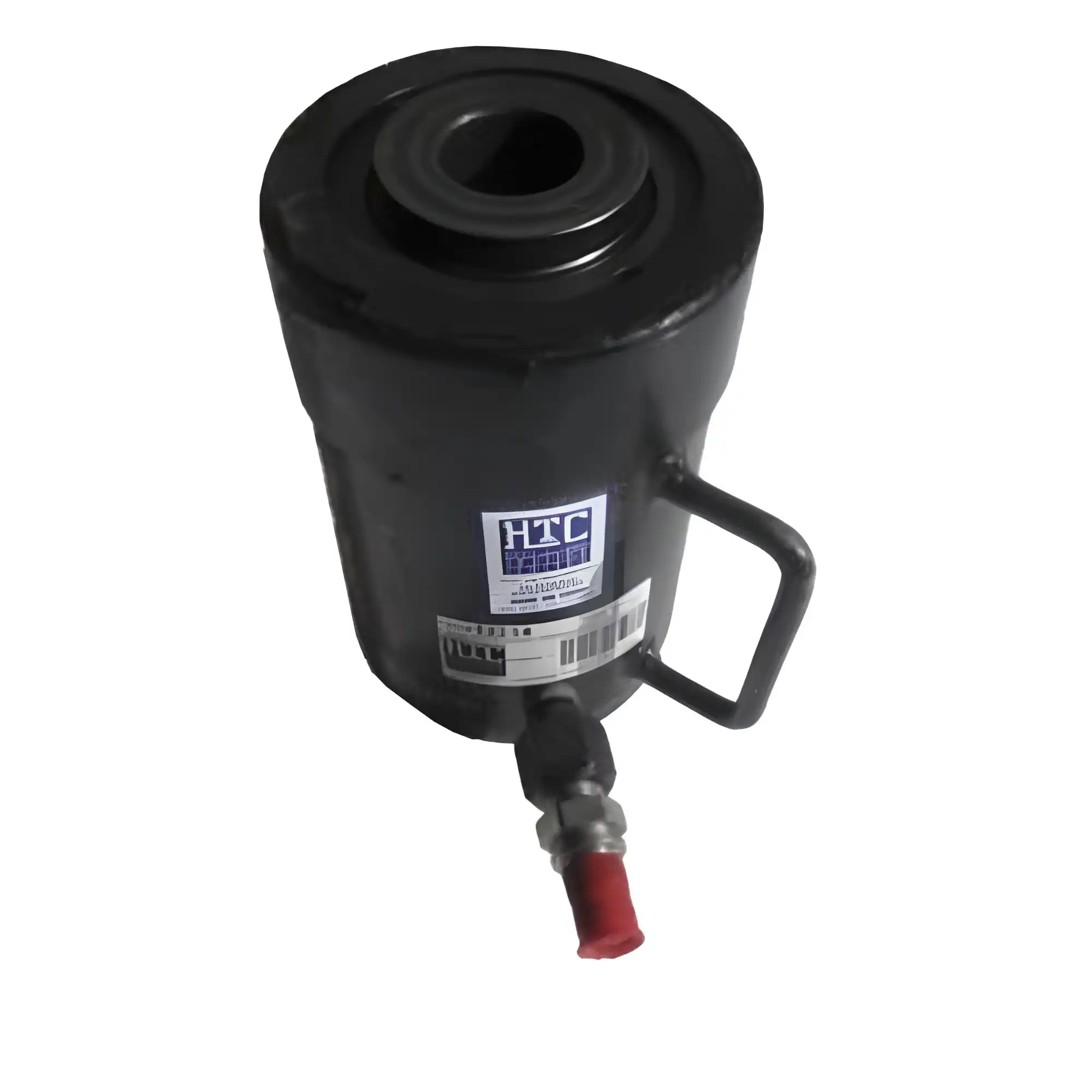

RHS302 30 Ton x 64mm Stroke

Hollow cylinders / hollow rams have the added advantage of being able to fit a shaft through the middle of the cylinder. Ideal for stress testing, bearing removal or puller applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 297cc
Cylinder effective area 46.6cm²
Closed height 178mm
Outside diameter 114mm
Piston diameter 63.5mm
Centre hole diameter 33.3mm
Stroke 64mm
Weight: 10.9kg
Heavy duty spring for quick return
