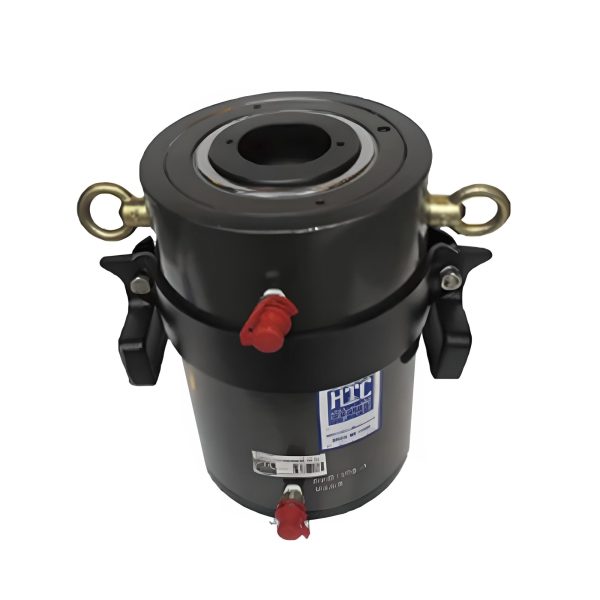

RHD1508 150 Ton Ram
,

RHD1508 150 Ton Ram 349mm-CH 203mm-ST Hollow Ram

Double acting cylinders have the advantage of a powered return as well as powered advance, giving the operator more control and the ability to use these cylinders for push and pull applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity ….cc
Cylinder effective area ADVANCE 204.1cm²
Cylinder effective area RETRACT 102.6cm²
Closed height 349mm
Outside diameter 247mm
Piston diameter 190.5mm
Centre hole diameter 79.5mm
Weight: 111kg
