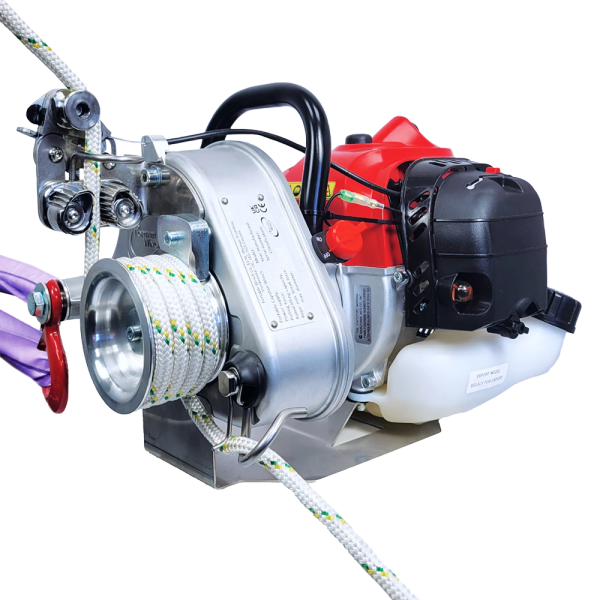

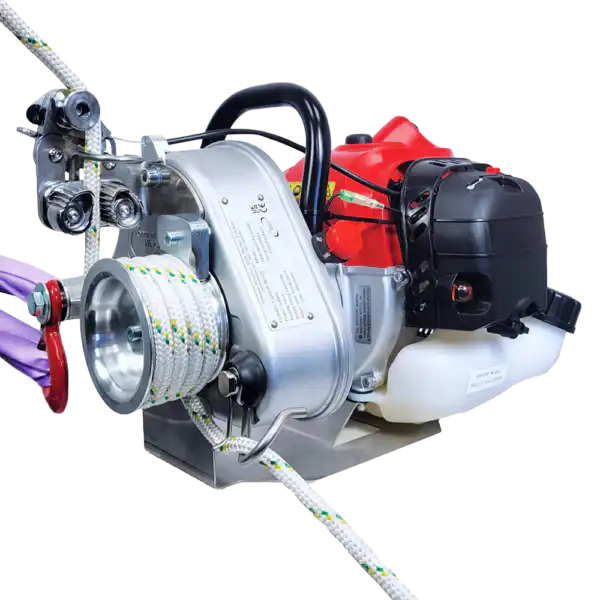

The PCW4500 is a high-performance, portable capstan winch powered by a robust Maruyama 50 cc 2-stroke CER500W engine. Engineered for professionals, this winch offers reliable and consistent pulling power for a wide range of demanding applications such as rigging, forestry, cable hauling, and remote site work in New Zealand.
Key aspects of its design emphasise safety and control: the winch features a stainless-steel rope brake that holds the load when the rope is released, a centrifugal clutch for smooth engagement, and a protective foot-plate to assist engine starting. It’s rated for 1,200 kg of true single-line pulling capacity, and you can boost the effective pulling force to up to 6,000 kg when using a block-and-tackle setup with 2 double pulleys.
Key Features & Specifications:
-
- Engine: Maruyama 50 cc CER500W (2-stroke, commercial-grade)
- Max pulling capacity (single line): 1,200 kg
- Expanded pull potential (with 2 double pulleys): up to 6,000 kg
- Drum / Capstan diameter: 76 mm
- Rope brake: Stainless-steel progressive capture system
- Centrifugal clutch for smooth operation
- Protective plate for foot placement at start-up
- Fuel: 2-stroke petrol/oil mix
- Weight: ~13 kg (very portable for the power delivered)
- Warranty: 5 years on the motor
Available to hire from HTC, this winch is ideal for contractors, riggers, and maintenance crews in New Zealand who require a lightweight but powerful pulling solution — and prefer a hire option to avoid owning and transporting heavy, specialised gear.
