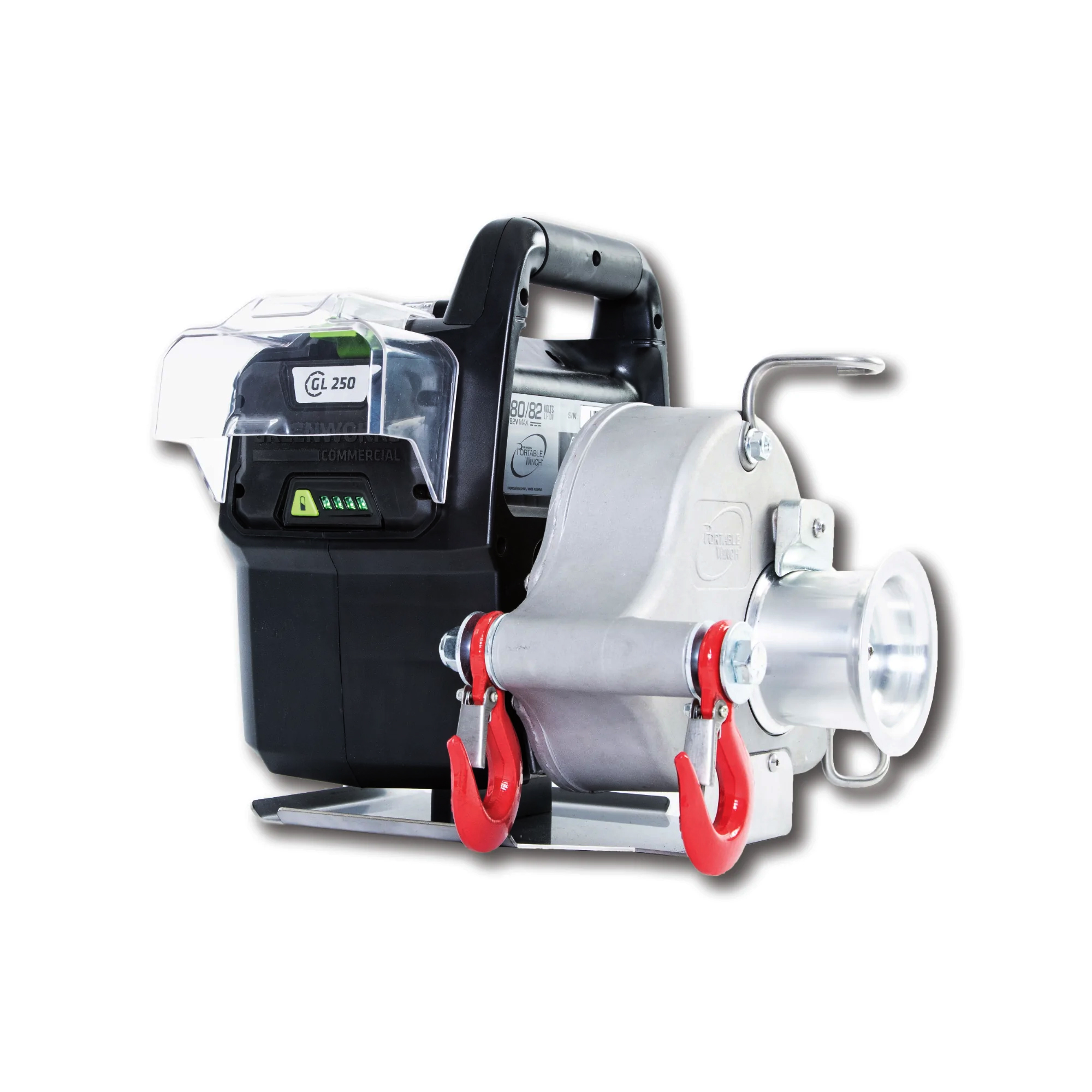

PCW-3000Li Battery Capstan winch

PCW3000-LI Battery Capstan winch
The PCW3000-Li develops a remarkable pulling force of 1,000 kg. By using a pulley system, you can go up to five times (5x) this pulling force.

Equipped with a powerful motor settable to three speeds, the PCW3000-Li can be used both indoors and outdoors.

Made in Canada by Portable Winch

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

Designed to be used year-round, the winch can be operated down to -14 degrees Celsius without affecting its autonomy or performance.

Depending on the speed selected, the weight of the load drawn and the amperage of the battery used, the operator will benefit from an autonomy varying between 20 and 40 minutes of continuous pulling, without loss of power. If necessary, a few seconds are enough to change the battery on the field and continue at the same pace. It accepts 80/82 V Lithium-Ion batteries from 2 to 6Ah from several major brands (not included).

The features of the PCW3000-Li, such as its maintenance-free motor and push button starter, make this winch a zero emissions tool in addition to being zero hassle.

PCW-3000Li Battery Capstan winch specifications:

SPEED
Speed 1 : 8.1 m/min
Speed 2 : 10 m/min
Speed 3 : 11.6 m/min

ROPE
Length : Unlimited
Pulling : Double braided with low stretch (not included)
Minimum Diameter : 10 mm
Maximum Diameter : 12 mm
Ideal diameter : 10 mm

CAPSTAN DRUMS
Standard : 76 mm
Optional : N/A

WEIGHT & DIMENSIONS
Weight : 9.5 kg
