D5150
,

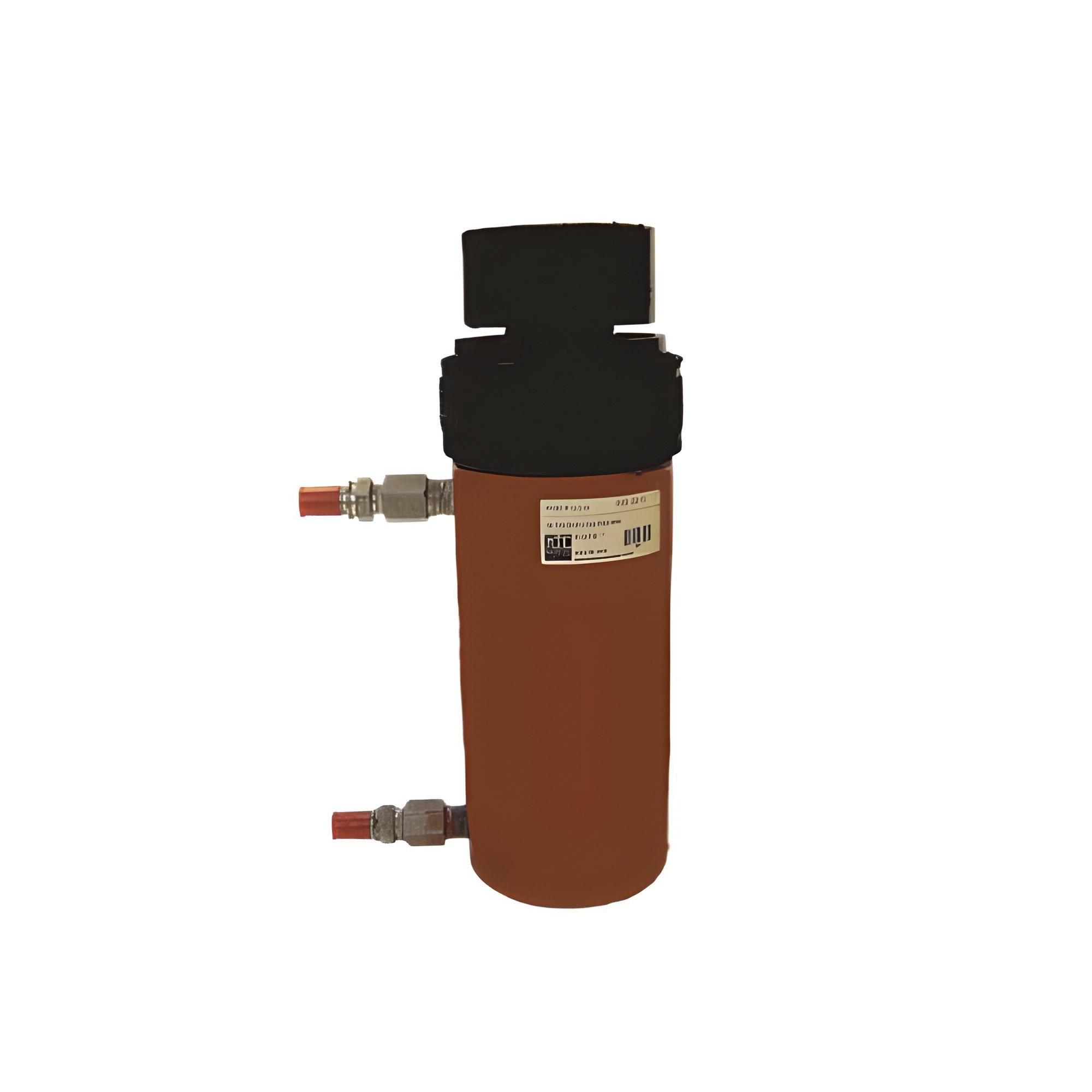

D5150 50 Ton Ram 387mm-CH 150mm-ST

Double acting cylinders have the advantage of a powered return as well as powered advance, giving the operator more control and the ability to use these cylinders for push applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

Enquire
Save or Print Page

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 1075cc
Cylinder effective push area 71.63cm²
Cylinder effective pull area 40.04cm²
Closed height 387mm
Outside diameter 128mm
Piston diameter 63mm
Weight: 31.5kg
