Your Complete Rail Solutions Provider
From hydraulic rail tools and lifting systems to precision measurement and maintenance equipment, our solutions are built to improve safety, reliability, and efficiency in the field. By combining world-class equipment with comprehensive local support, we provide dependable solutions that help keep rail operations running smoothly and projects on track.
Discover Our Complete Railway Solutions Range
C2D Rescue Trolley for Damaged Bogies
Categories: Rail Equipment, Trolleys
- For towing rolling stock with damaged bogies.
- 2 sturdy wheel carriers with adjustable blocks, suitable for wheels of up to 700 to 1260 mm Ø
- 2 connecting frames secure the wheel housing with quick- release type pins.
- 190 mm Ø wheels.
- 4 carrying handles.
- 22.5 t/unit useful load.
Impact Sockets
Categories: Rail Equipment, Tools & Accessories
Made of case-hardened and tempered nickel chrome steel alloy.
Pin fastening or Ball fastening or mixed fastening.
Pins and Rubber O-rings are supplied as standard with sockets.
Socket spring clips are available as an option.
We carry stock of the following sizes that are commonly used in the NZ railway industry:
510 – Bi-Square Deep 3/4″ Square Drive X 1″ A/F 8 Point Standard.
419 – Bi-Square 1″ Drive X 40MM A/F 8 Point Standard.
423 – Bi-Square 1″ Drive X 36.5MM (1.7/16″) A/F 8 Point Standard.
424 – Bi-Square 1″ Drive X 25.4MM 8 A/F Point Sandard.
426 – Bi-Square 1″ Drive X 32MM A/F 8 Point Standard.
446 – Bi-Square 1″ Drive X 3/4″ A/F 8 Point Standard.
483 – Bi-Square 1″ Drive X 41MM (1.5/8″) A/F 8 Point Standard.
782325STU – STUMEC 7/8″DR 25.4MM A/F Bi-Square, 8 Point Standard.
7836.5STU – STUMEC 1″DR 36.5MM A/F Bi-Square, 8 Point Standard.
7840BSTU – STUMEC 7/8″DR 40MM A/F Bi-Square, 8 Point Standard.
Other sizes available on request.
Stihl BT 45 Hand Held Petrol Drill
Categories: Rail Equipment, Tools & Accessories
- STIHL Portable, petrol-driven drill
- Power: 0.75kW
- Chuck: 1/2″”
- Weight: 4.8 kg
- Two speed
- Reversible
AP3 Compact Pandrol Eclip Machine
Categories: Rail Equipment, Tools & Accessories
Fully hydraulic compact machine.
High output design with integrated head for inserting or extracting Pandrol Fast Clips.
TS2 Coach Screwing and Fish Plate Bolting Machine
Categories: Coach Screwing, Rail Equipment
- The TS2 is perfect for intensive operations which require high output performance.
- Unbolting is easy as the machine offers a high untightening torque while tightening is managed through a two speed gear box, allowing you to achieve optimum efficiency.
- The TS2 is economical due to its sturdy design and low maintenance requirements, saving you money over the life of the machine.
RCFF Combination Track Gauge and Level
Categories: Rail Equipment, Tools & Accessories
The RCFF model combination rule for track equipment inspection, track gauge and super elevation measurement is an instrument specifically designed for on-track and on-site measurement of the following parameters:
– track gauge
– super elevation in algebraic values
- Sturdy and lightweight track tool for quick and accurate reading of track gauge, track cant, on graduated rules protected by Plexiglas.
- Made of yellow anodised aluminium channel section protecting all vulnerable parts.
- Fixed support insulated telescopic support of shockproof cast aluminium.
- Available for every track gauge from 1000 mm.
Carbide Tip Cutters
Categories: Rail Equipment, Tools & Accessories
High quality super micro-grain carbide tips for long tool life.
Smooth cutting triple edge tooth geometry reduces vibration.
Profiled flute for rapid swarf evacuation.
Suitable for most materials and applications.
Need to be cooled and lubricated by a pressurised coolant feed. For longer cutter life we use and recommend HTC Coolcut concentrate.
Radio Controlled Self-Propelled Laying and Renewal Gantry
Categories: Rail Equipment, Switch/panel installation Equipment
Modular system to lay or renew track panels and turnouts without deformation
Powerful: 20 t of lifting capacity
Accurate: 3-way control of the load
Radio Controlled: one operator can control up to 8 PEMs
Supports can extend up to 5 m to suit all handling configurations and unload turnouts from transport wagons
Self-propelled: 5 kmph
Use with transport trolleys LEM 460 or alone for slewing only
Watch the tools that make hard jobs easy in action!
Airtec Master 35 Impact Wrench Carrier
The Airtec Master 35 Carrier is a wheeled trolley designed to support the Master 35 petrol tool and other compatible power tools, including the Maxim Pneumatic Rusty Clip Remover. An adjustable arm suits tools of different weights, and the carrier assembles or dismantles in a few minutes without tools. It reduces manual handling, improves operator comfort, and increases productivity on site.
Track Jacks
Heavy-duty lifting solutions built for rail track alignment, maintenance, and infrastructure work—designed for stability, durability, and safe operation in the field.

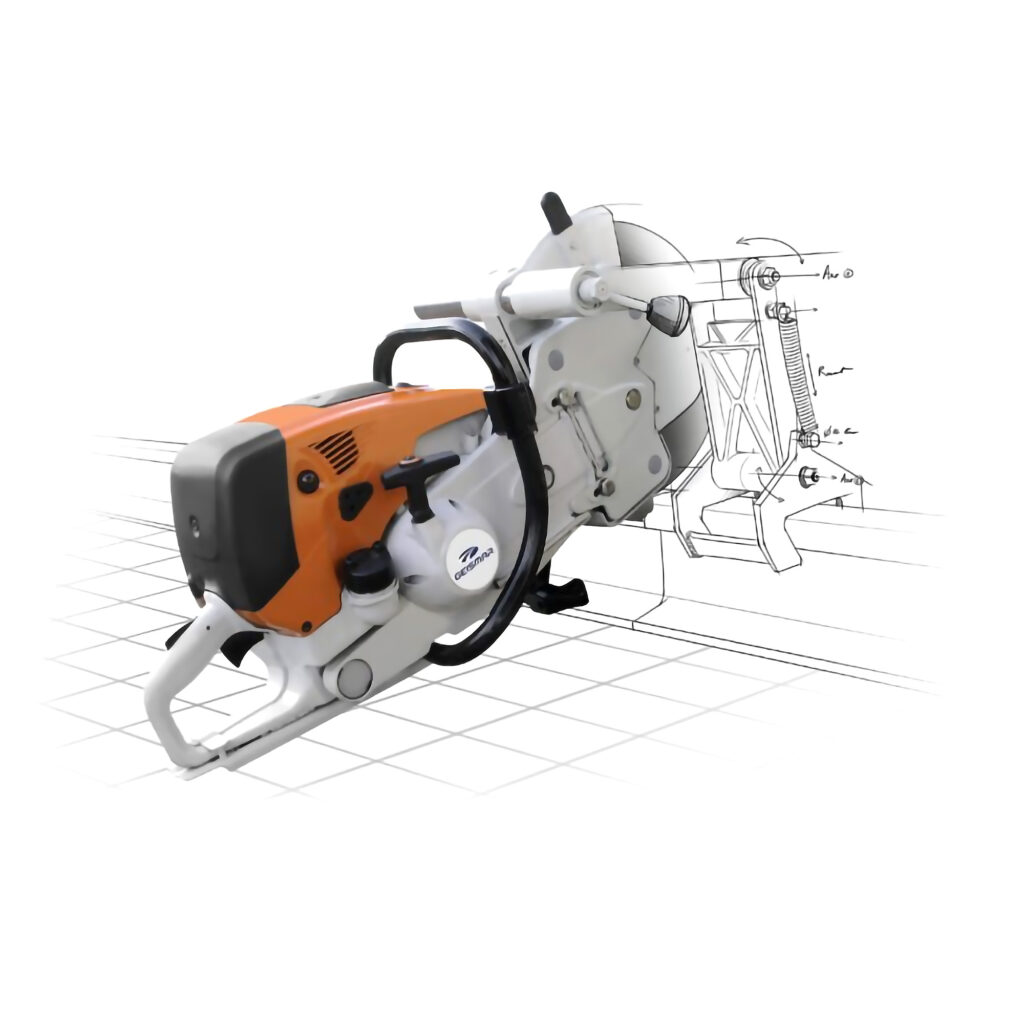

Rail Saw
Professional-grade rail saws engineered for fast, precise rail cutting—built for durability, accuracy, and reliable performance in demanding rail maintenance environments.
Rail Tensors
Professional-grade hydraulic rail tensors. Designed for rapid deployment, modular frames and obstructionless profiles allow for seamless welding and maintenance without interrupting traffic flow.
