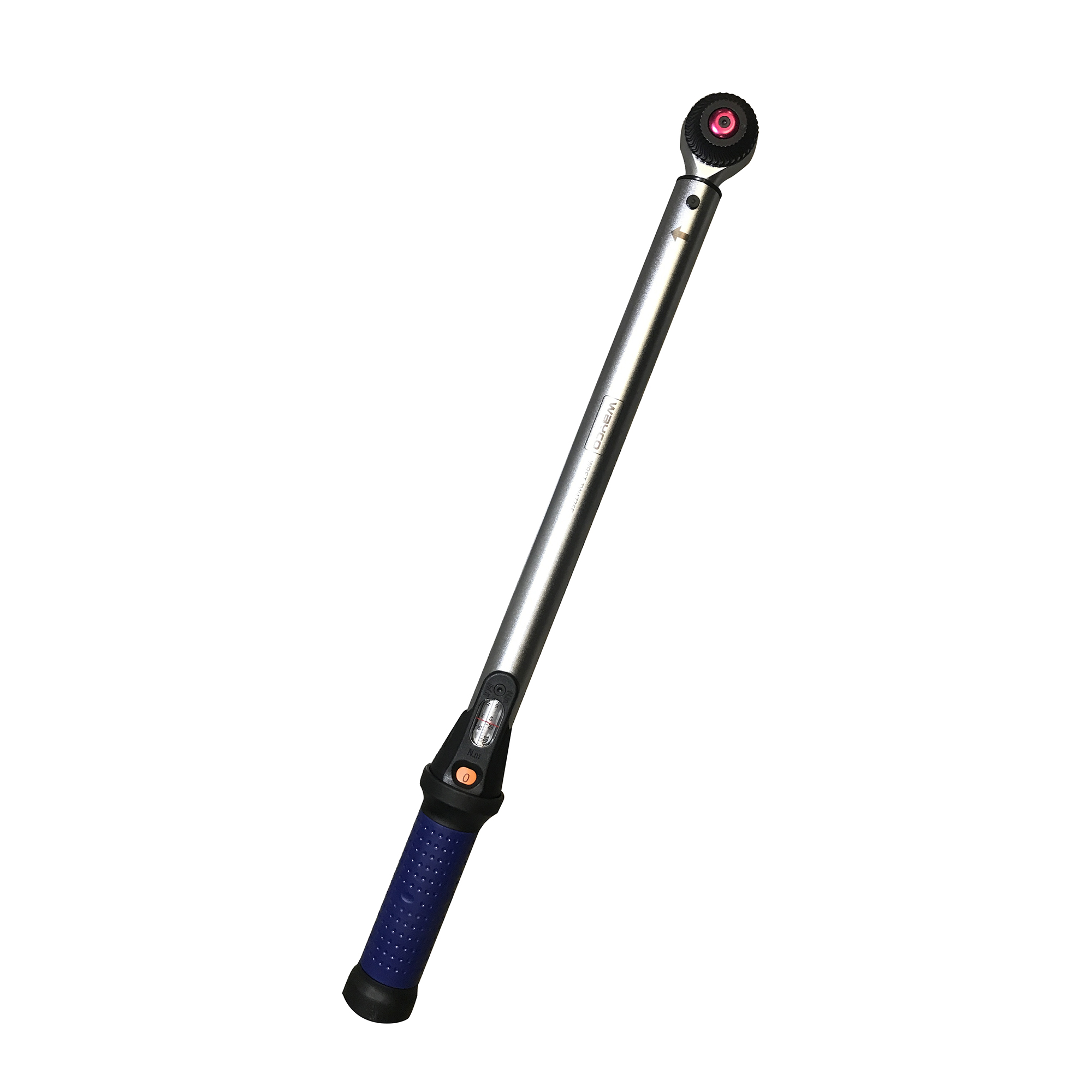

Wayco Reversible Torque Wrench 3/8″Dr, 72 teeth 10-50Nm (3.6-18ft/lb), ±3%. Display Window. L 363mm
A reversible 3/8″ drive torque wrench covering 10 to 50 Nm with ±3% accuracy, a 72-tooth ratchet, and dual-scale display.
More Information
The Wayco Reversible Torque Wrench 10-50Nm is a high-quality 3/8″ drive tool designed for precise torque application in both clockwise and counterclockwise directions. A robust 72-tooth ratchet with 5° gear action delivers smooth, precise operation, while the reversible design supports both right and left-hand tightening.
Key Features
- Reversible design supports both right and left-hand tightening.
- Robust 72-tooth ratchet with 5° gear action for smooth, precise operation.
- Dual-scale display shows torque values in both Newton-metres and foot-pounds.
- Additional micrometer scale allows precise setting of interim torque values.
- Ergonomically shaped handle grip for comfort during extended use.
- Locking button secures the torque setting, preventing unintentional adjustment.
- Factory calibration certificate and protective blow-mould storage case included.
- Meets DIN ISO 6789 and ASME B107.300-2010 quality standards.
Typical Applications
- Precision fastening on smaller fasteners
- Applications requiring bi-directional (left and right-hand) tightening
- Automotive, electronics, and light industrial assembly
- Tasks requiring interim torque settings
Wayco Reversible Torque Wrench 10-50Nm Specifications
| Spec | Detail |
|---|---|
| Drive Size | 3/8″ |
| Teeth | 72 |
| Range | 10 – 50 Nm (3.6 – 18 ft-lb) |
| Accuracy | ±3% |
| Length | 363 mm |
| Display | Dual scale (Nm / ft-lb) with micrometer interim setting |
| Standards | DIN ISO 6789, ASME B107.300-2010 |
| Calibration | Factory calibration certificate included |
| Case | Protective blow-mould storage case included |
