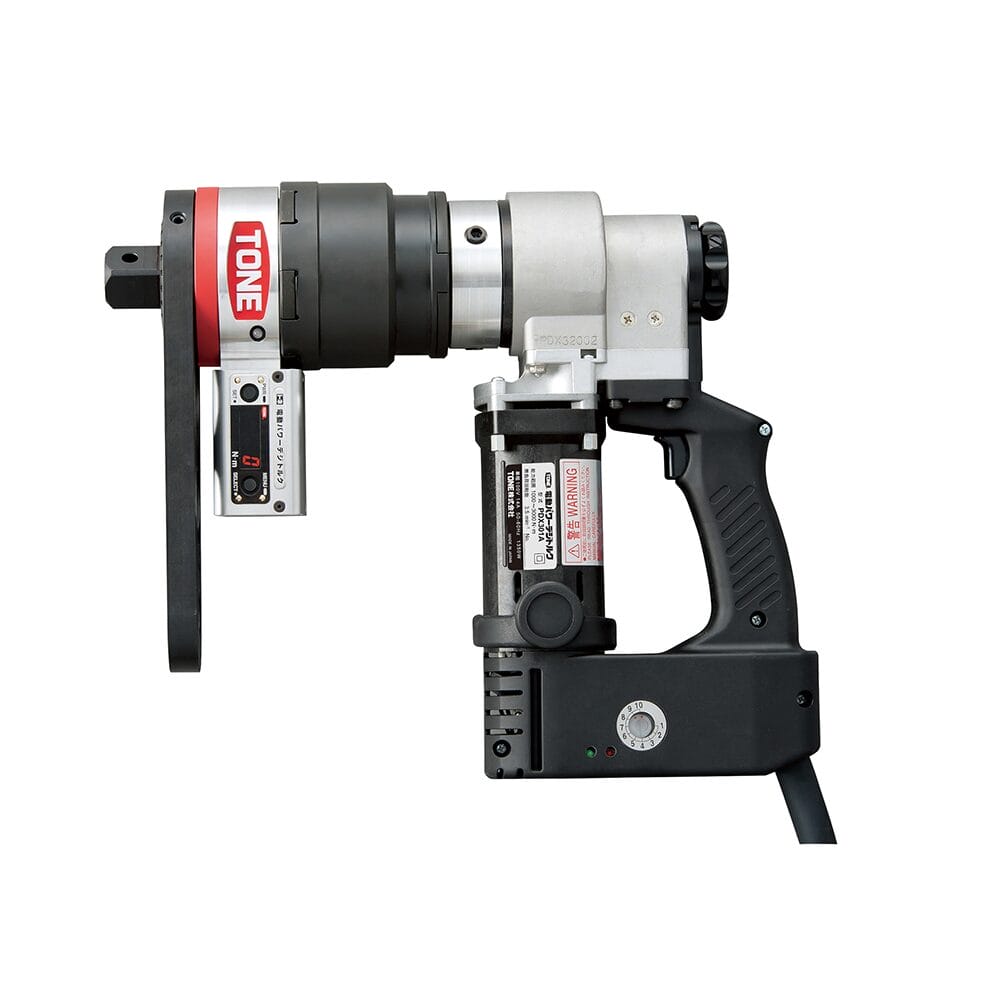

TONE Electric Nutrunner (PDX Series)
The TONE PDX Series Electric Power Digitorqon is a wired electric nutrunner with an integrated digital torque measurement and display system — it doesn’t just control torque, it measures, displays, and records it in real time. Two models cover 1,000–3,000 N·m and 2,000–5,000 N·m, each available in 100V and 200V. Accurate to ±4% with the supplied reaction bar. Supplied with straight and L-shaped reaction bars, microSD card, calibration certificate, and metal case. Built for wind power, shipbuilding, pipe flange connections, and any heavy industrial application where documented torque verification is required.
More Information
The TONE PDX Series does more than control torque — it measures, displays, and records it in real time. For heavy industrial bolting applications where verification is non-negotiable, this is the tool.
Why the PDX Series
Most nutrunners stop at torque control — they shut off when the preset value is reached and leave it there. The PDX Series goes a step further. An integrated digital Digitorqon torque measurement system measures the actual applied torque in real time, displays it on a swivel screen, and logs every fastening event to a microSD card for quality records and traceability.
This makes the PDX Series a fundamentally different class of tool to the GST or GSR Series — it is not just a nutrunner, it is a nutrunner with a built-in torque verification and data logging system. For industries where documented proof of torque is required — wind turbine assembly, shipbuilding, pipe flange connections, plant maintenance — this eliminates the need for a separate torque audit step.
Accuracy is rated at ±4% when used with the supplied straight reaction bar, tighter than the ±5% of the standard GST and GSR ranges. Two models cover 1,000–3,000 N·m (PDX301A/302A) and 2,000–5,000 N·m (PDX501A/502A), both available in 100V and 200V single-phase.
Key Features
- Integrated digital torque measurement — real-time torque display on a swivel screen; no separate torque audit tool required
- microSD data logging — records every fastening event for quality assurance and traceability
- ±4% accuracy — with supplied straight reaction bar; tighter than standard nutrunner series
- LED and audible threshold alerts — visual and sound confirmation when target torque is reached
- Bidirectional measurement — torque measurement in both tightening and loosening directions
- Double-insulated construction — operator safety prioritised
- Calibration certificate included — supplied as standard with every unit
- Periodic inspection reminder — tool requires annual inspection or every 5,000 fastenings (service available from TONE)
Typical Applications
- Wind turbine tower and nacelle bolt assembly
- Shipbuilding and marine structural connections
- Pipe flange and pressure vessel bolting
- Heavy industrial plant maintenance and overhaul
- Bridge and civil infrastructure where torque records are required
- Any application requiring documented proof of applied torque
Range Overview
| Model | Torque Range | Drive Size | Voltage |
|---|---|---|---|
| PDX301A | 1,000 – 3,000 N·m | 25.4 mm (1″) square | 100V |
| PDX302A | 1,000 – 3,000 N·m | 25.4 mm (1″) square | 200V |
| PDX501A | 2,000 – 5,000 N·m | 38.1 mm (1½”) square | 100V |
| PDX502A | 2,000 – 5,000 N·m | 38.1 mm (1½”) square | 200V |
Note: Periodic inspection is required annually or every 5,000 fastenings — this is a chargeable service. Contact HTC for details.
Each model supplied with straight reaction bar, L-shaped reaction bar, microSD card (2 GB), AA batteries (×2), calibration certificate, and metal carrying case.
📊 Specifications — TONE PDX Series Electric Power Digitorqon
| Model | Torque Range (N·m) | Drive Size | No-Load Speed (rpm) | Accuracy | Voltage (V) | Max Current (A) | Max Power (W) | Weight (kg) | Dimensions W×D×H (mm) | Memory | Battery |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PDX301A | 1,000 – 3,000 | 25.4 mm (1″) sq. | 3.5 | ±4% | 100V | 14 | 1,350 | 10.5 | 395 × 515 × 145 | microSD 2 GB | AA ×2 |
| PDX302A | 1,000 – 3,000 | 25.4 mm (1″) sq. | 3.5 | ±4% | 200V | — | 1,350 | 10.5 | 395 × 515 × 145 | microSD 2 GB | AA ×2 |
| PDX501A | 2,000 – 5,000 | 38.1 mm (1½”) sq. | 2 | ±4% | 100V | 14 | 1,350 | 13.6 | 395 × 515 × 145 | microSD 2 GB | AA ×2 |
| PDX502A | 2,000 – 5,000 | 38.1 mm (1½”) sq. | 2 | ±4% | 200V | — | 1,350 | 13.6 | 395 × 515 × 145 | microSD 2 GB | AA ×2 |
All models: Bidirectional torque measurement and control · Double-insulated · Pistol-type body · Wired power supply · Swivel torque display · LED and audible threshold alerts · Continuous use: ~20,000 cycles (PDX301A/302A), ~10,000 cycles (PDX501A/502A) · Calibration certificate included · Supplied with straight reaction bar, L-shaped reaction bar, microSD card, and metal case
