TONE Electric Tire Wrench (ETW Series)
The TONE ETW71 Series is an electric wheel wrench purpose-built for tyre nut tightening on large commercial vehicles — buses, trucks, and heavy transport. Three models cover lever-type and cup-type wheel configurations across JIS and New ISO bolt patterns, all sharing the same 100V power unit and 350–700 N·m torque range. Automatic torque shut-off, ±5% repeat accuracy, and optional Digitorqon attachment for on-the-spot torque verification. Supplied with matching square drive unit and metal case.
More Information
The TONE ETW71 Series is a dedicated electric wheel wrench for large commercial vehicle tyre service — engineered for the consistent, repeatable torque control that bus and truck wheel safety demands.
Why the ETW71 Series
Hand torque wrenches and impact guns are the most common tools for commercial vehicle wheel nut service, but neither delivers the combination of speed, consistency, and accuracy that the ETW71 Series does. The electric torque control mechanism shuts off automatically the moment the preset torque is reached — removing operator variance entirely and delivering the same result on every wheel nut, every time.
The ETW71 Series is built around a single shared power unit (ETW71) that pairs with three interchangeable square drive units to suit different wheel configurations. The lever-type TW7LL unit suits wheels with 90–120 mm bolt spacing, while the TW7C68L and TW7CL cup-type units cover JIS (6 & 8 hole) and New ISO (8 & 10 hole) patterns respectively. This modular design means a single base unit can service mixed fleets without needing separate tools for each vehicle type.
For operations requiring documented torque verification, the optional Digitorqon attachments (DT7TWT or DTM8) can be added to measure and confirm applied torque during tightening — without requiring a separate audit step.
Key Features
- Dedicated commercial vehicle application — engineered specifically for large bus and truck wheel nut tightening
- Automatic torque shut-off — stops precisely at preset torque; consistent results on every wheel nut
- Modular square drive unit system — one power unit pairs with three drive units to cover lever-type and cup-type wheel configurations
- Covers JIS and New ISO patterns — cup-type units for 6 & 8 hole (JIS) and 8 & 10 hole (New ISO) wheels
- Lever-type unit for variable bolt spacing — suits 90–120 mm between bolts
- ±5% repeat tightening accuracy — under consistent conditions
- Digitorqon compatible — optional DT7TWT or DTM8 attachment for on-the-spot torque measurement and verification
- Regular inspection required — every 6 months or 30,000 cycles (chargeable service)
Typical Applications
- Large bus and coach tyre service and wheel changes
- Heavy truck and freight vehicle wheel maintenance
- Commercial fleet workshops and transport depots
- Road transport operators requiring documented wheel nut torque compliance
Range Overview
| Model | Square Drive Unit | Suitable Wheel Type | Total Weight (kg) |
|---|---|---|---|

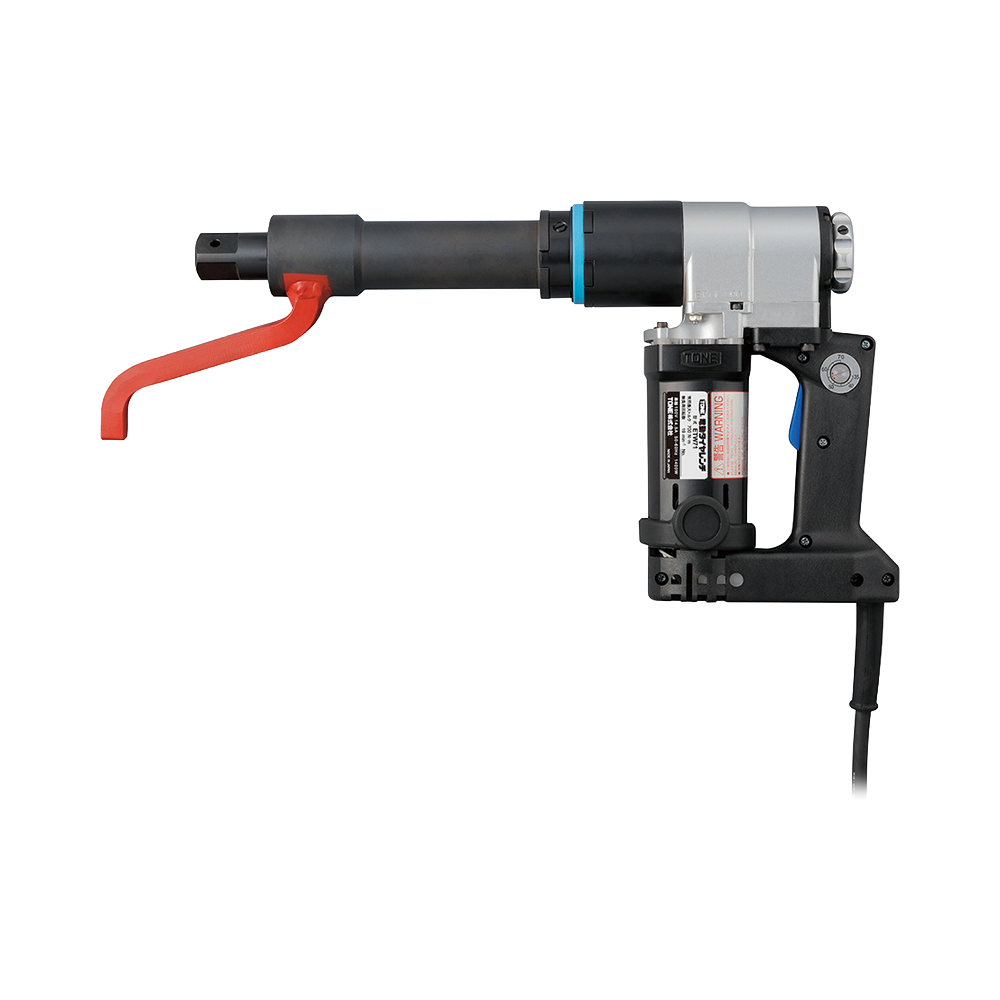

| ETW71LL | TW7LL | Lever type — 90–120 mm bolt spacing | 7.8 |
| ETW71C68L | TW7C68L | Cup type — 6 & 8 hole wheel (JIS) | 9.3 |
| ETW71CL | TW7CL | Cup type — 8 & 10 hole wheel (New ISO) | 8.9 |
All models share the same ETW71 power unit. Each supplied with matching square drive unit and metal carrying case. Accessories vary by model — see notes below.
📊 Specifications — TONE ETW71 Series Electric Wheel Wrench
| Spec | ETW71LL | ETW71C68L | ETW71CL |
|---|---|---|---|
| Square Drive Unit | TW7LL | TW7C68L | TW7CL |
| Suitable Wheel | Lever type, 90–120 mm bolt spacing | Cup type, 6 & 8 hole (JIS) | Cup type, 8 & 10 hole (New ISO) |
| Torque Range (N·m) | 350 – 700 | 350 – 700 | 350 – 700 |
| Max Torque (N·m) | 700 | 700 | 700 |
| No-Load Speed (rpm) | 19 | 19 | 19 |
| Voltage | 100V single-phase | 100V single-phase | 100V single-phase |
| Max Current (A) | 14.5 | 14.5 | 14.5 |
| Max Power (W) | 1,400 | 1,400 | 1,400 |
| Main Body Weight (kg) | 5.0 | 5.0 | 5.0 |
| Square Drive Unit Weight (kg) | 2.8 | 4.3 | 3.9 |
| Total Weight (kg) | 7.8 | 9.3 | 8.9 |
| Repeat Accuracy | ±5% | ±5% | ±5% |
| Drive Size | 25.4 mm (1″) sq. | 25.4 mm (1″) sq. | 25.4 mm (1″) sq. |
All models: 100V single-phase · 50–60 Hz · Cord weight not included in body weight figures
Supplied accessories by model:
- ETW71LL — Square drive unit (TW7LL), dual opening impact socket (8ED-4121A), collar (90TWLP), screwdriver, instruction manual, metal case
- ETW71C68L — Square drive unit (TW7C68L), dual opening impact socket (8ED-4121A), screwdriver, instruction manual, metal case
- ETW71CL — Square drive unit (TW7CL), tire socket for impact (8A-33T), screwdriver, instruction manual, metal case
Note: Periodic inspection required every 6 months or every 30,000 cycles — chargeable service. Contact HTC for details.
Optional accessories (all models): Digitorqon DT7TWT · Digitorqon DTM8 · Short-type square drive units (TW7L, TW7C68, TW7C)
