Temporary Grounding Device for Overhead Lines

150; 220; 400 KV

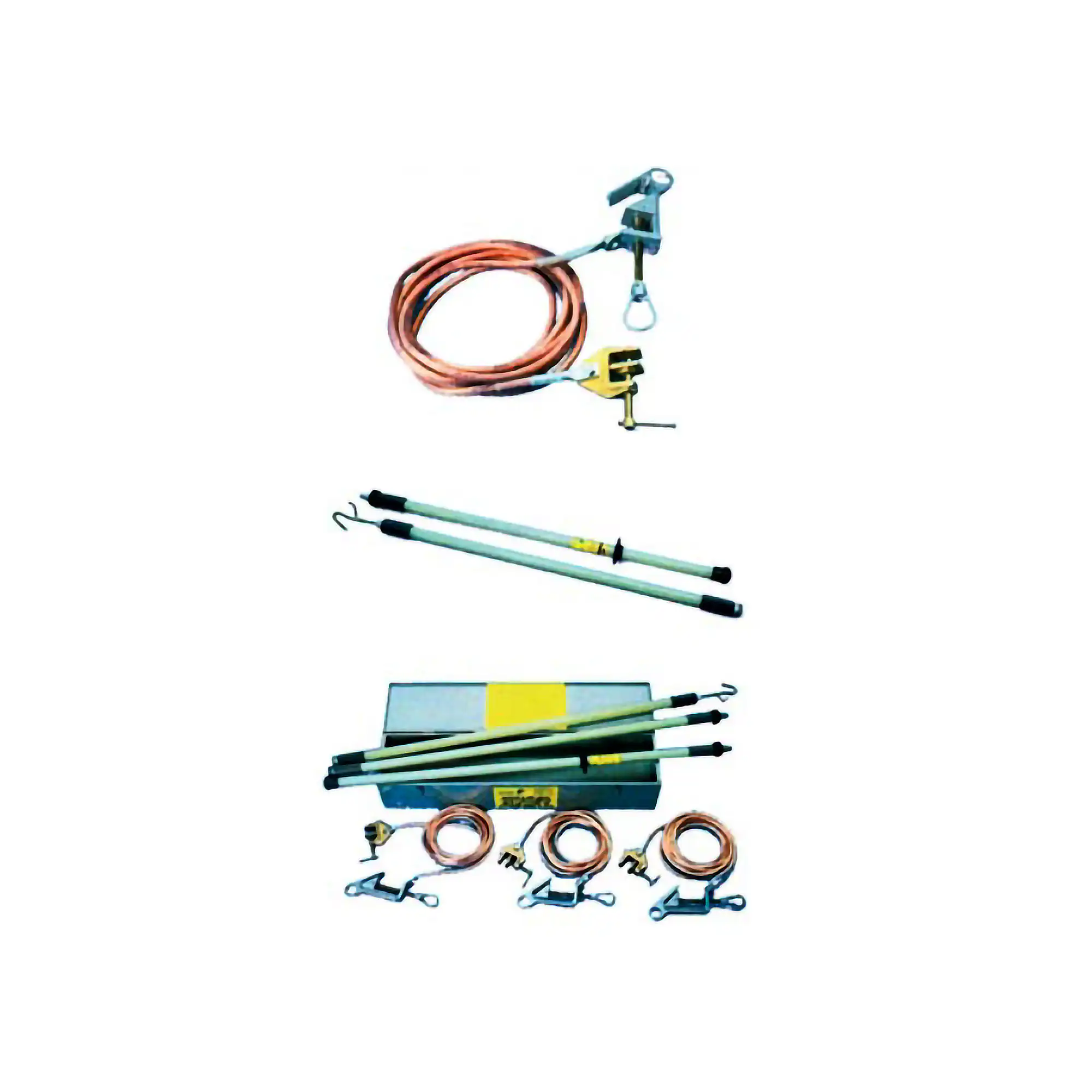

Completed with:
3 Conductor clamps made of light aluminum alloy suitable for range of diameters from 5 to
60 mm, with screwing type closure and eye connection for insulated rod;
3 insulated copper cables coated with transparent thermoplastic material, 50 or 95 sqmm
section, 6 m each;
3 Tower grounding clamp made of molded brass, adjustable opening up to 33 mm.
1 Insulated fi berglass rod, with coupling screw type, hand protection and “G” type hook,
suitable for conductor clamp.

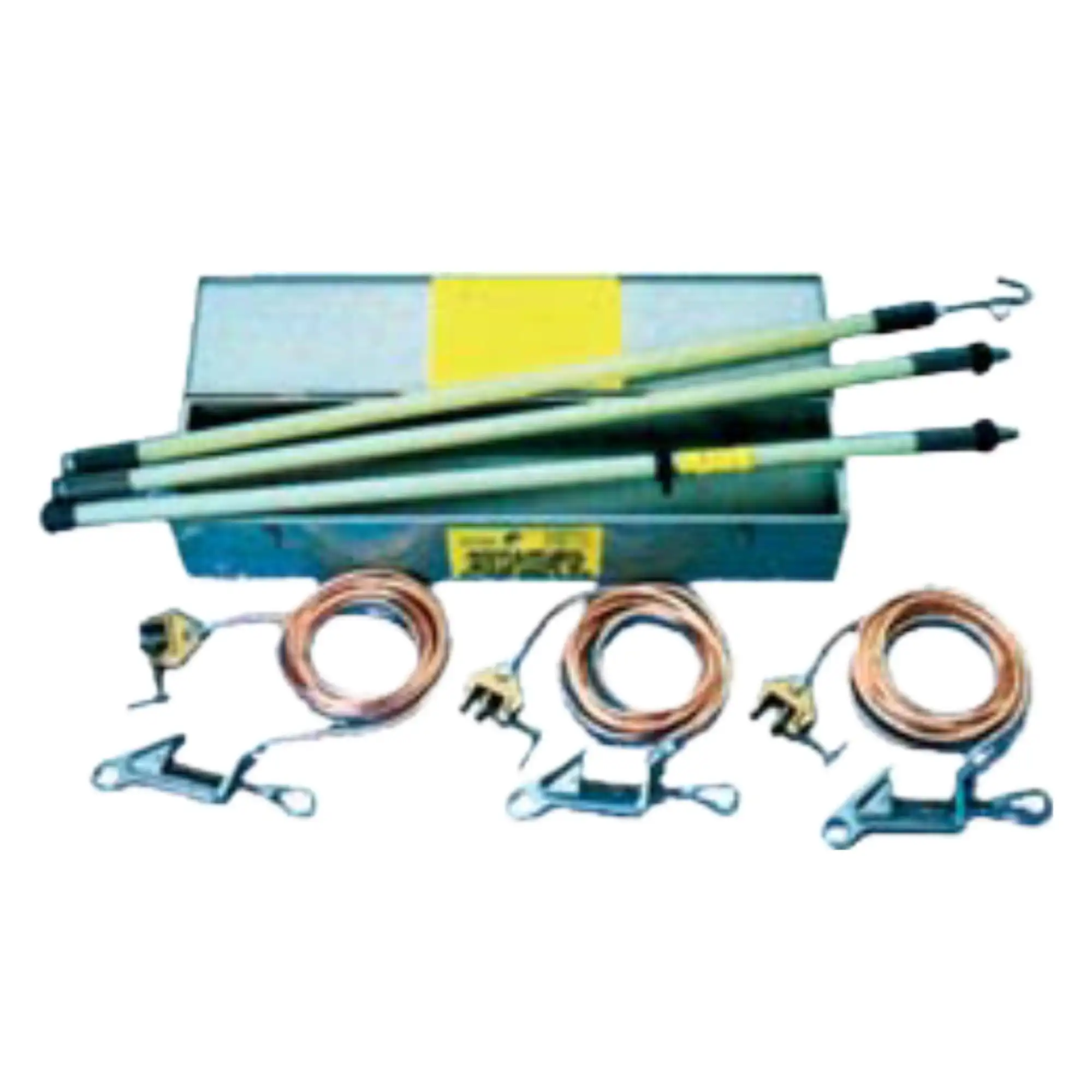

Complete set with metal storage box and bag for stick.
Upon request:
– Different copper sections
– Different cable lengths
– Different insulated rod lengths
