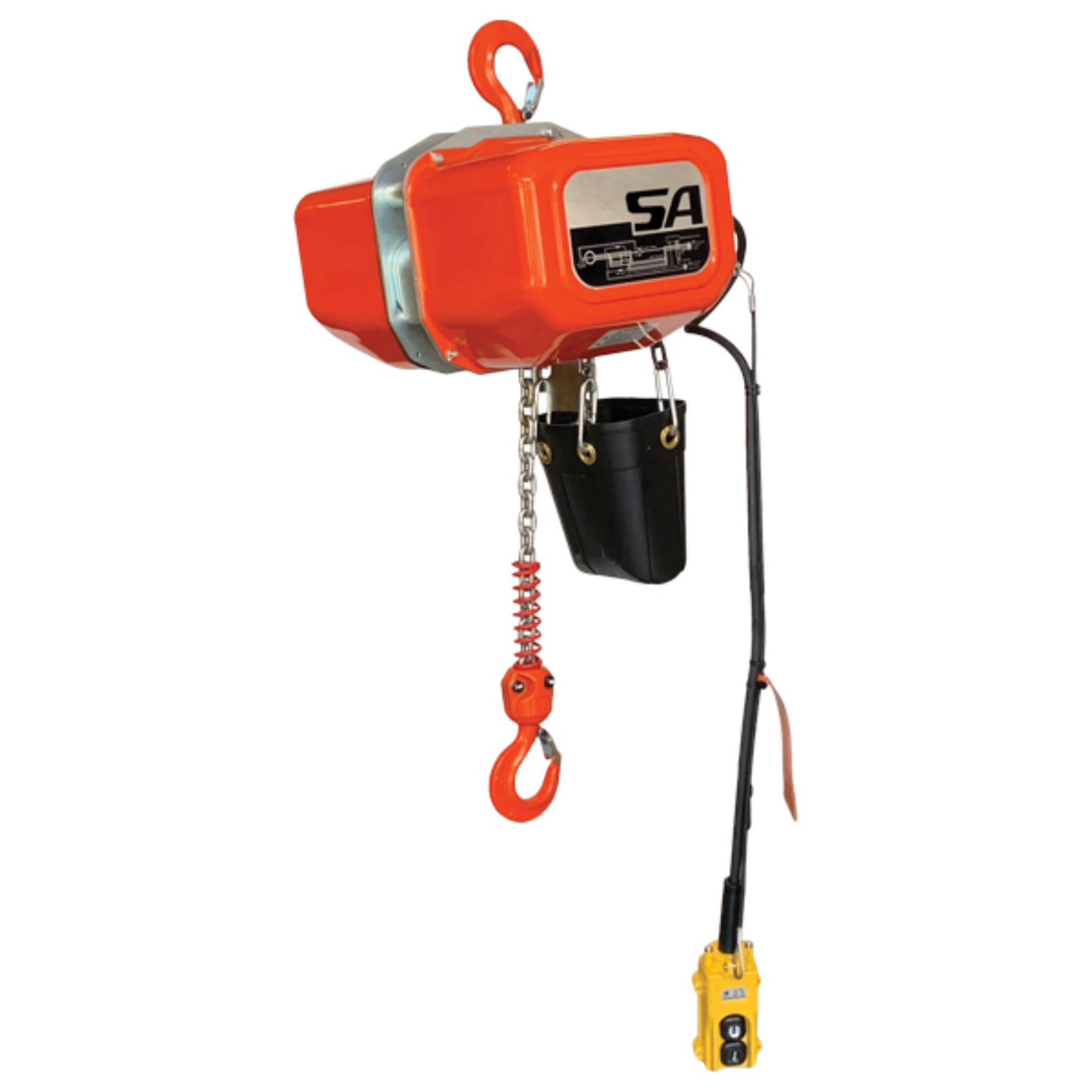

SA Type Electric Chain Hoists

SA TYPE : 1 PHASE, 1 SPEED

• Tough, Heavy-Duty Motor: Elephant’s unique design for a lower power consumption.
• Reliable Electro-Magnetic DC Brake
• Highly durable load chain manufactured in Japan by Elephant
• Totally Enclosed Steel Plate Construction
• Durable top and bottom hooks: Bottom hook with bearing smoothly swivels, 360°. In the event of an overload, the hook gradually elongates.  This elongation serves as an indicator to the end user, making them aware of the overload.
• Chain Bucket: Hard plastic
• Limit Switch: Standard feature
• Ambient temperature range 14°~104° F
• Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
• Temperature Range -10° to 40° C,  14° to 104° F
• CSA Compliant Hoist available upon request, excludes motorized trolley

OPTIONAL OVERLOAD LIMIT DEVICE FOR THE SA HOISTS

Our new Torcon overload protection device is a slip clutch style.  In the event of an overload, the device actuates and prevents the hoist from continuing to lift. This mechanism protects the hoist from damage.

• Single phase class B insulation with a short time duty of 25 minutes
• Thermal protector – senses abnormal rise in temperatures within the motor and automatically shuts the motor down to prevent damage.

OPTIONAL MOTORIZED TROLLEYS

• MTS series motorized trolley, single phase, for combination with the SA electric chain hoists. 1/4t ~ 1 ton only.
• Trolleys come with pivoting adapter for hook to hook type suspension or lug type suspension

WIRING – SIMPLE PLUG-IN TYPE CONNECTION
