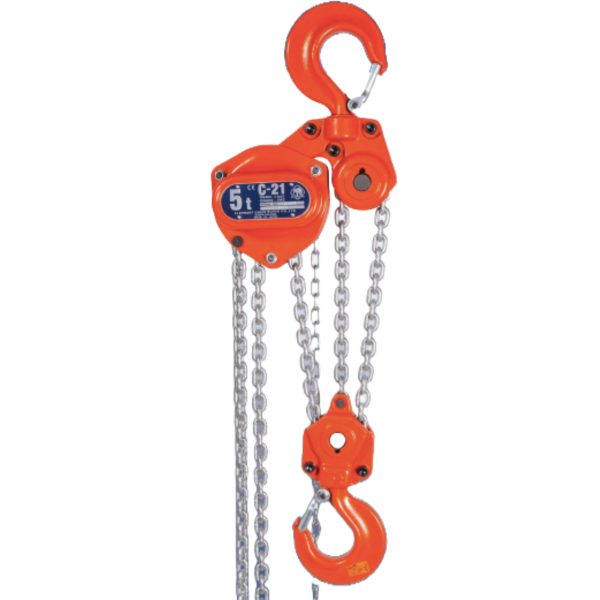

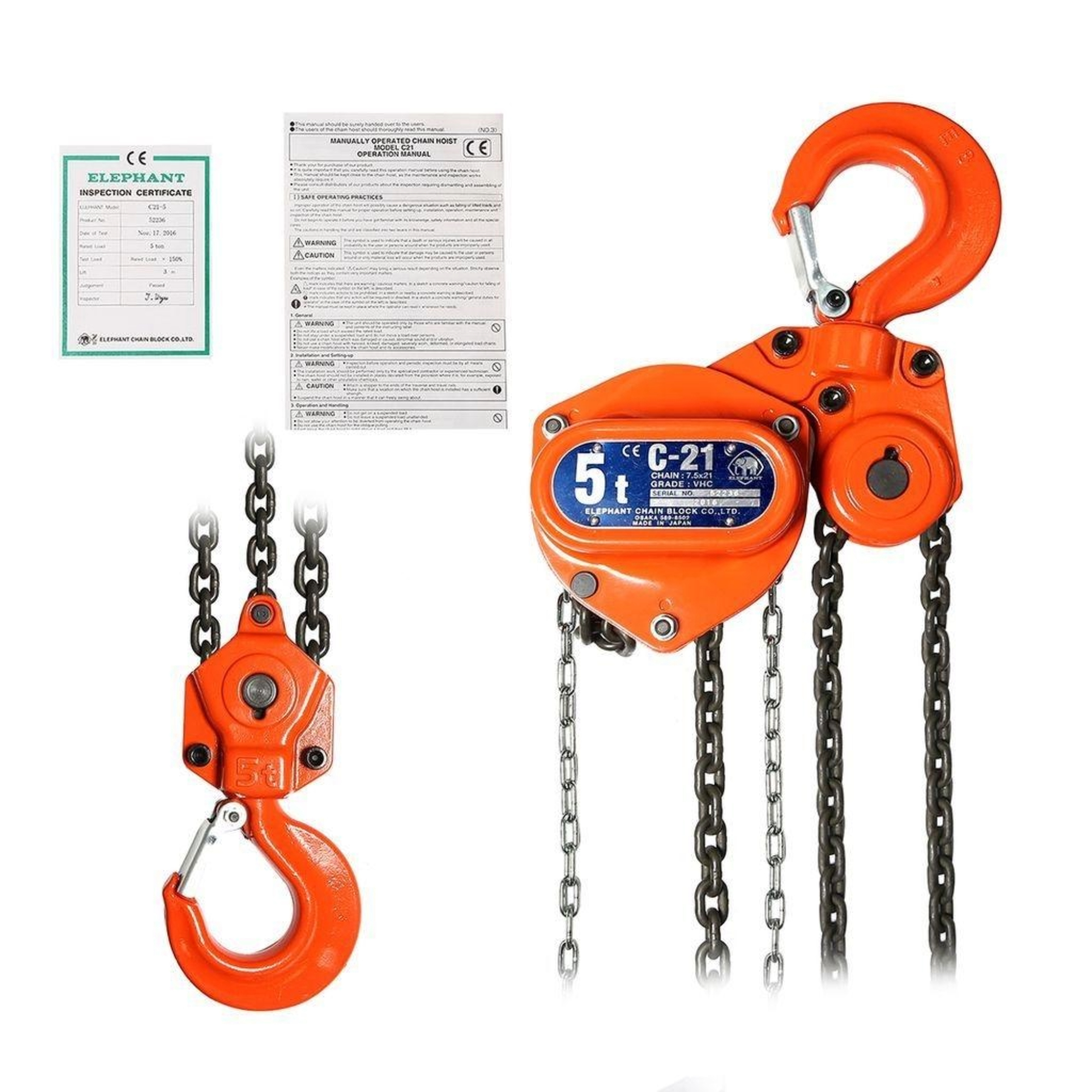

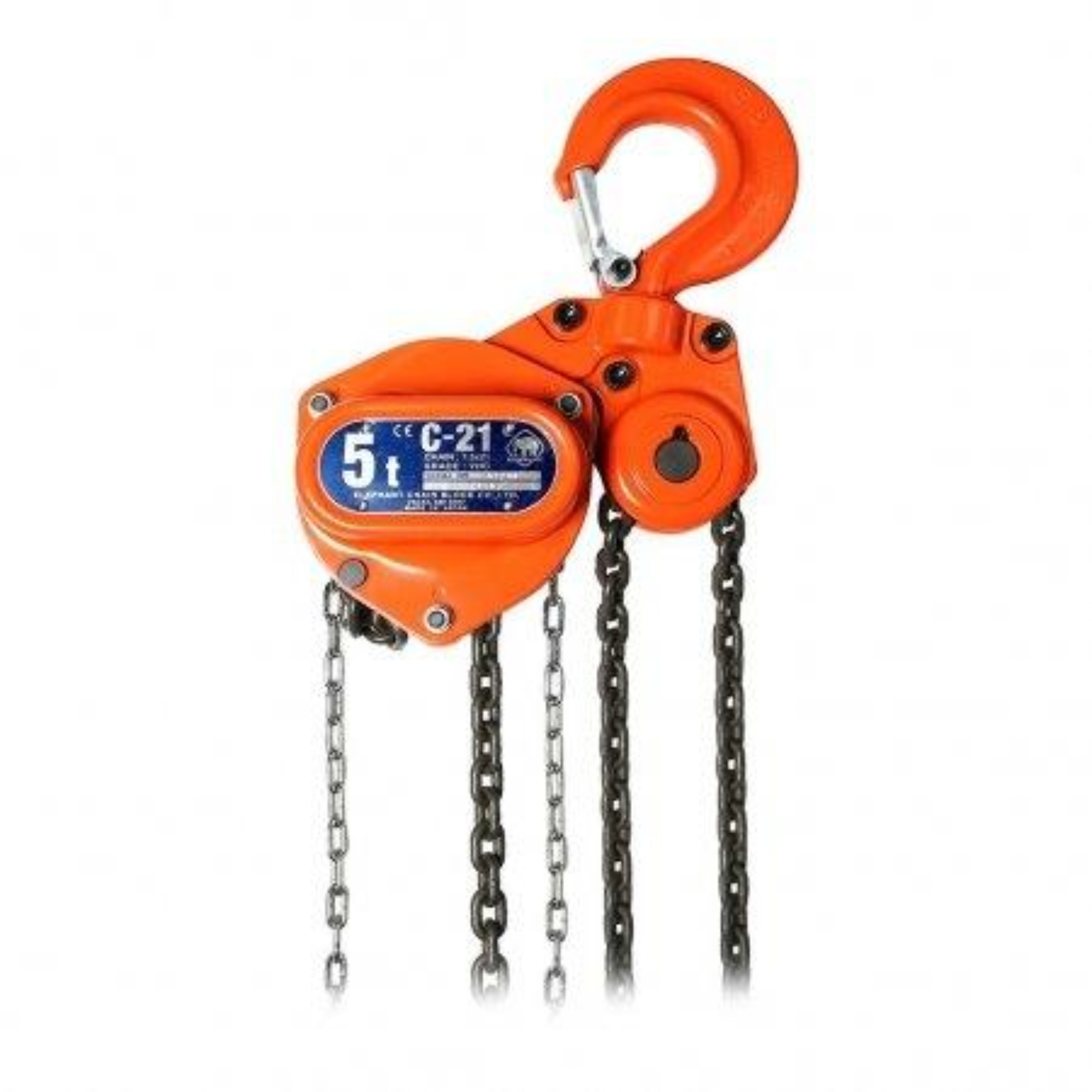

Elephant C21-5 Manual Chain Hoist

The C-21 Manual Chain Hoist is a lightweight and durable solution for lifting and moving heavy loads. It is a hand-operated hoist that can be attached to hooks, lugs, trolleys, or beam clamps, and can handle loads up to 5 tons. It has a galvanized load chain, a heavy duty frame, and long lasting friction discs. It also features safety mechanisms such as anti-drop plates, anti-tilt devices, and overload protection. The C-21 Manual Chain Hoist is suitable for various industries including construction, manufacturing, mining, and transportation.

Figure of C21-5 dimensions

  • Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
  • Zinc plated hand chain
  • Heavy duty frame
  • Lightweight lifting capacity ratio, a 1 ton unit with 10’ lift weighs 20% less than other Japanese hoists
  • Long lasting friction discs
  • Extremely wear resistant
  • Load chain, hooks, and braking parts have a safety factor of 4+ times.  0.5t ~ 1t units have a safety factor of 5+ times.
  • Durable powder coat finish
  • Suitable for operation within a -20o to +130o C,  -4 to +266o F temperature range
Model
C21-5
Capacity ( ton )
5
Standard lift ( m )
3
Manufacturer’s test load ( ton )
7.5
Headroom ( mm )
555
Length of load chain lifted
by pulling hand chain 1m ( mm )
4
Hand effort to lift full working load ( N ) ( kg )
334 ( 34 )
Load chain
Dia. x pitch ( mm ) x ( mm )
7.5 X 21
No. of falls
3
Grade of chain
V
Hand chain
Dia. x pitch ( mm ) x ( mm )
4.5 X 23
Net weight ( kg )
33.9
