Portable 100Ton Track Pin Press TTP-100

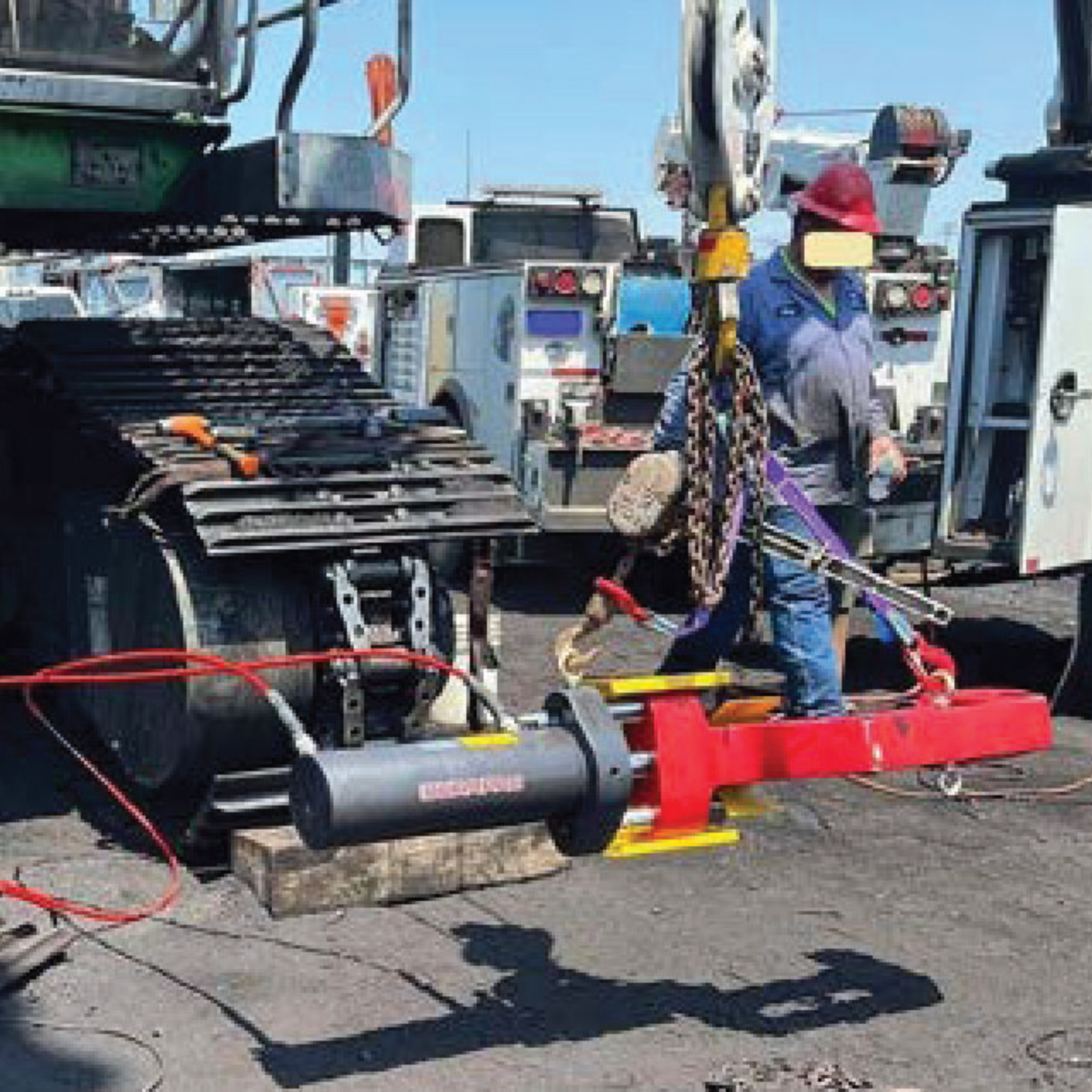

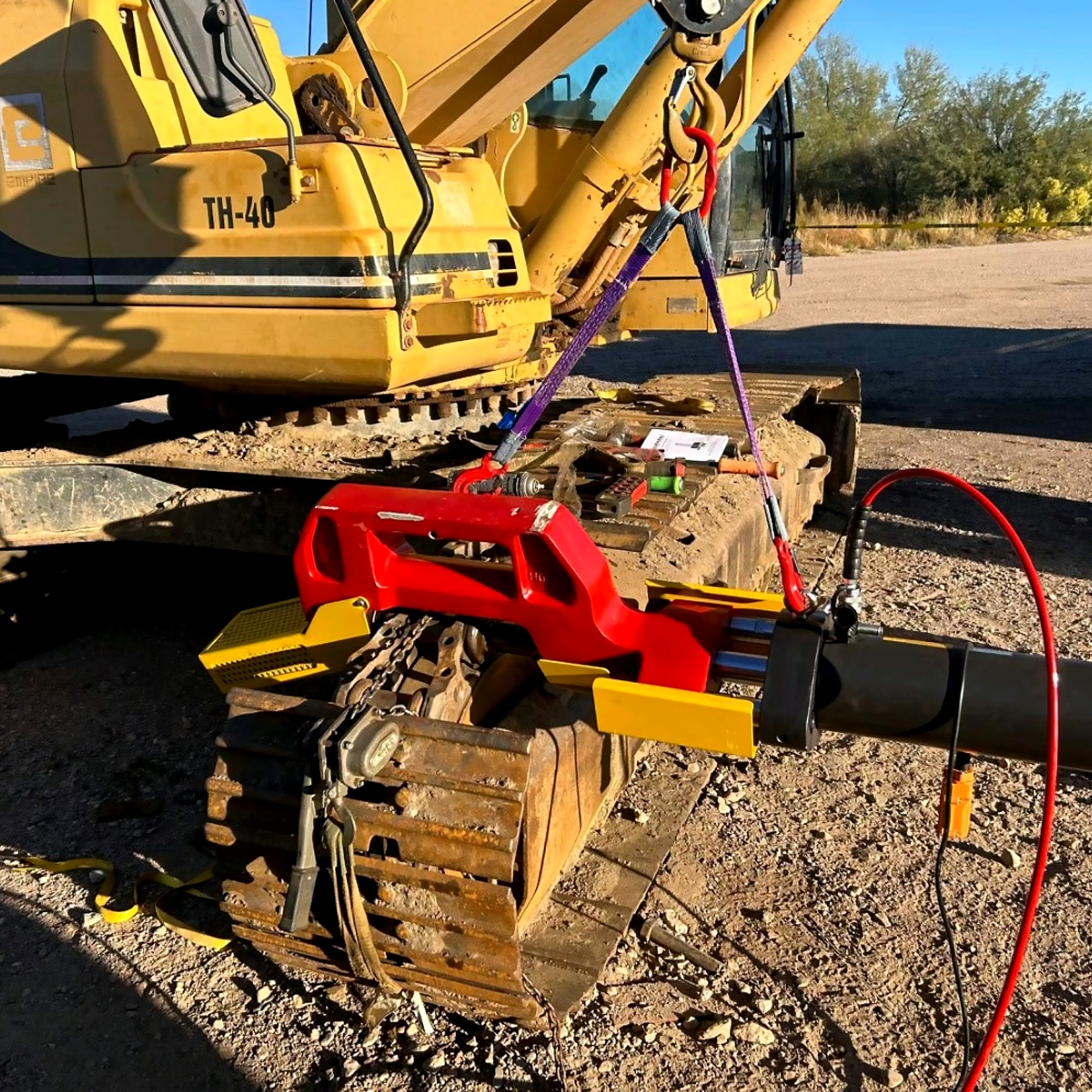

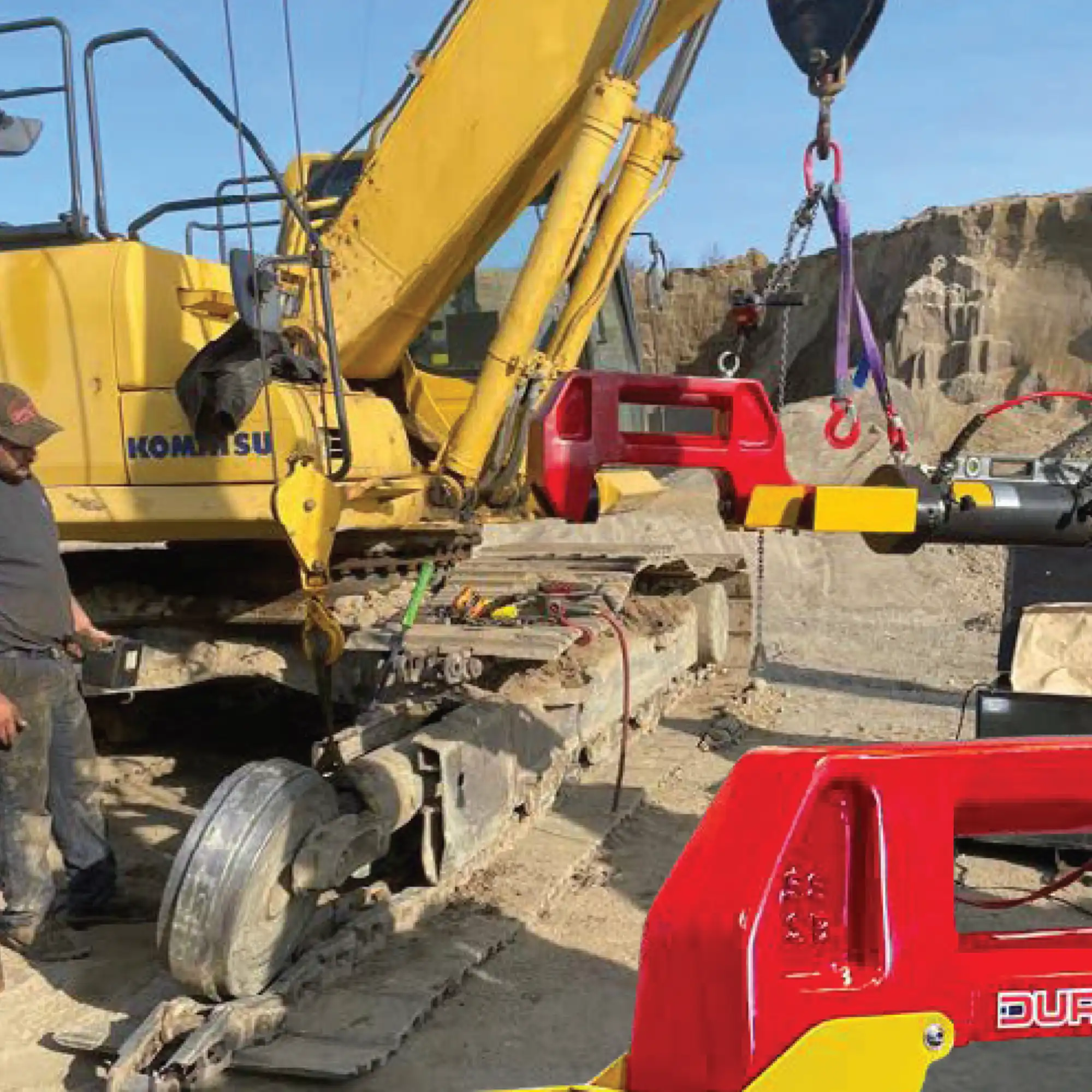

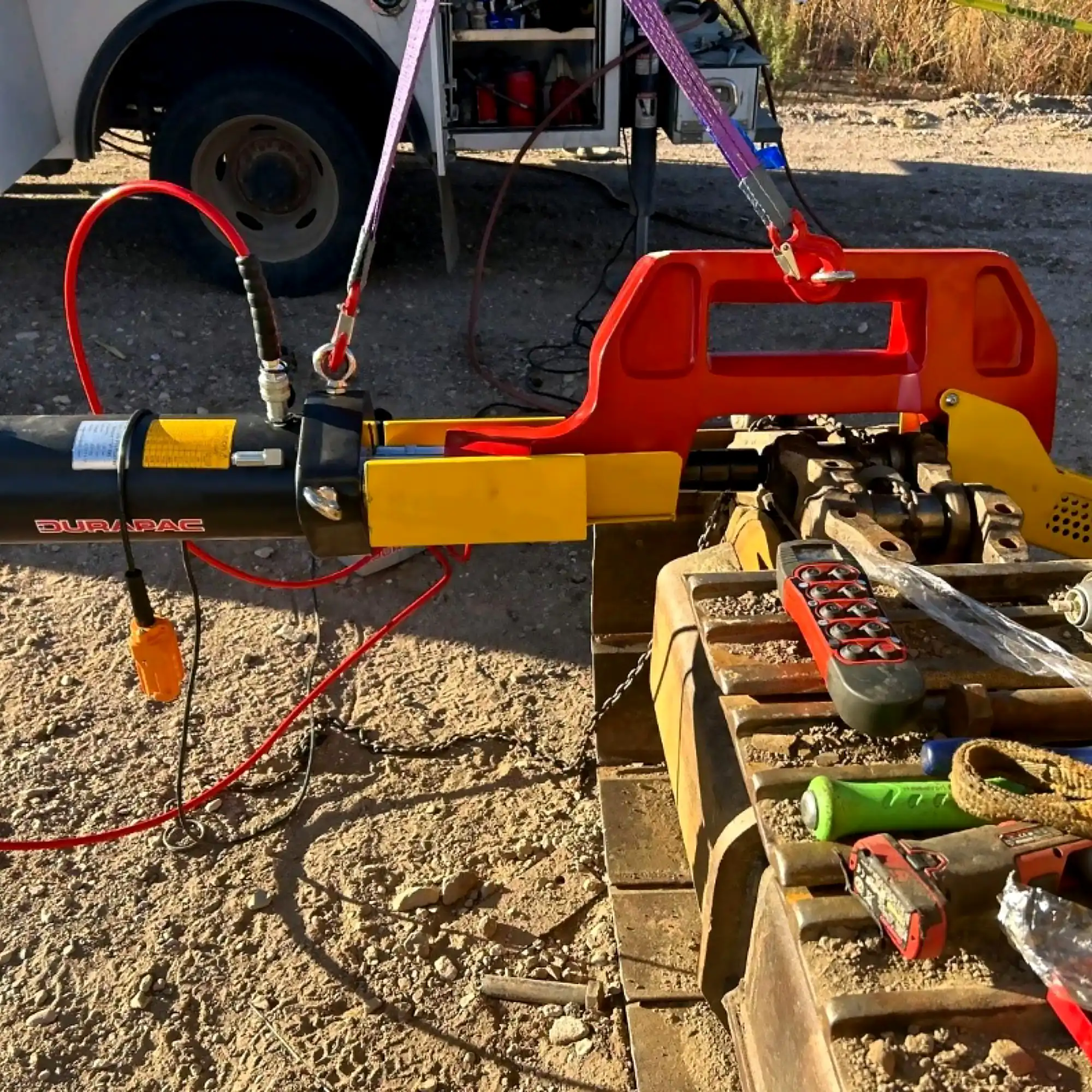

TTP-Series Track Link Pin Pusher & Installer is designed for the safe and effective removal/installation of track pins, master pins, bushings and master bushings on tracked machines, tractors, loaders, shovels, excavators, etc.

It is suitable to use with most modern machines including JCB, Caterpillar, Komatsu and Poclain manufactured track machines.

Advantages include:

  • Reduction in labour hours
  • Cost effective
  • Eliminates old dangerous methods
  • Makes field operations easier

Additional Information

More Information

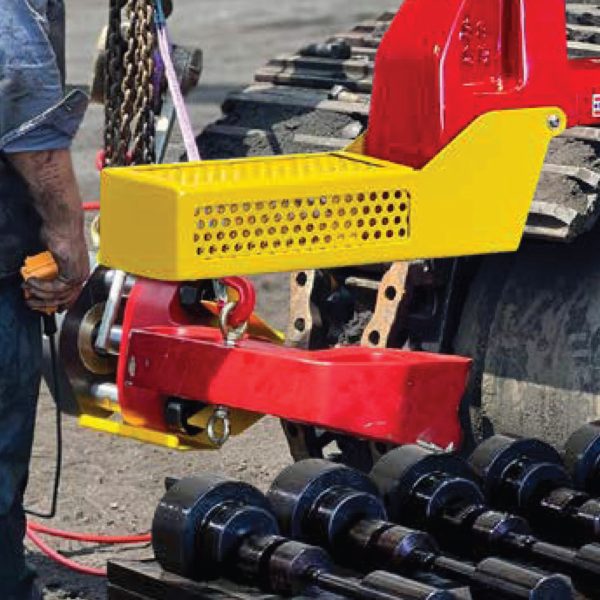

  • Tooling
    Each unit is supplied with ten sets of tooling to suit track pin diameters from 19.3 mm to 60.2 mm.
  • Smooth Operation
    Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.
  • Includes

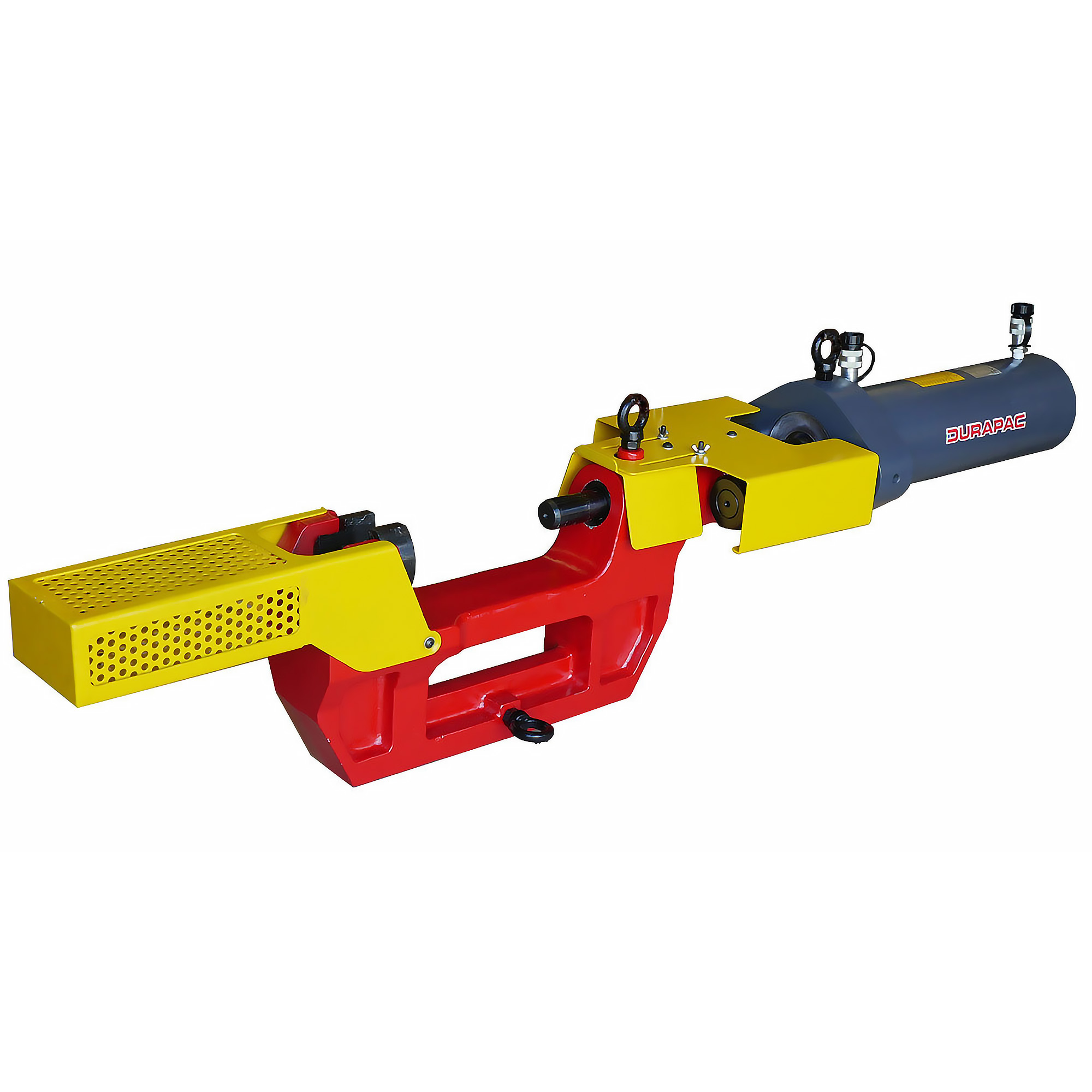

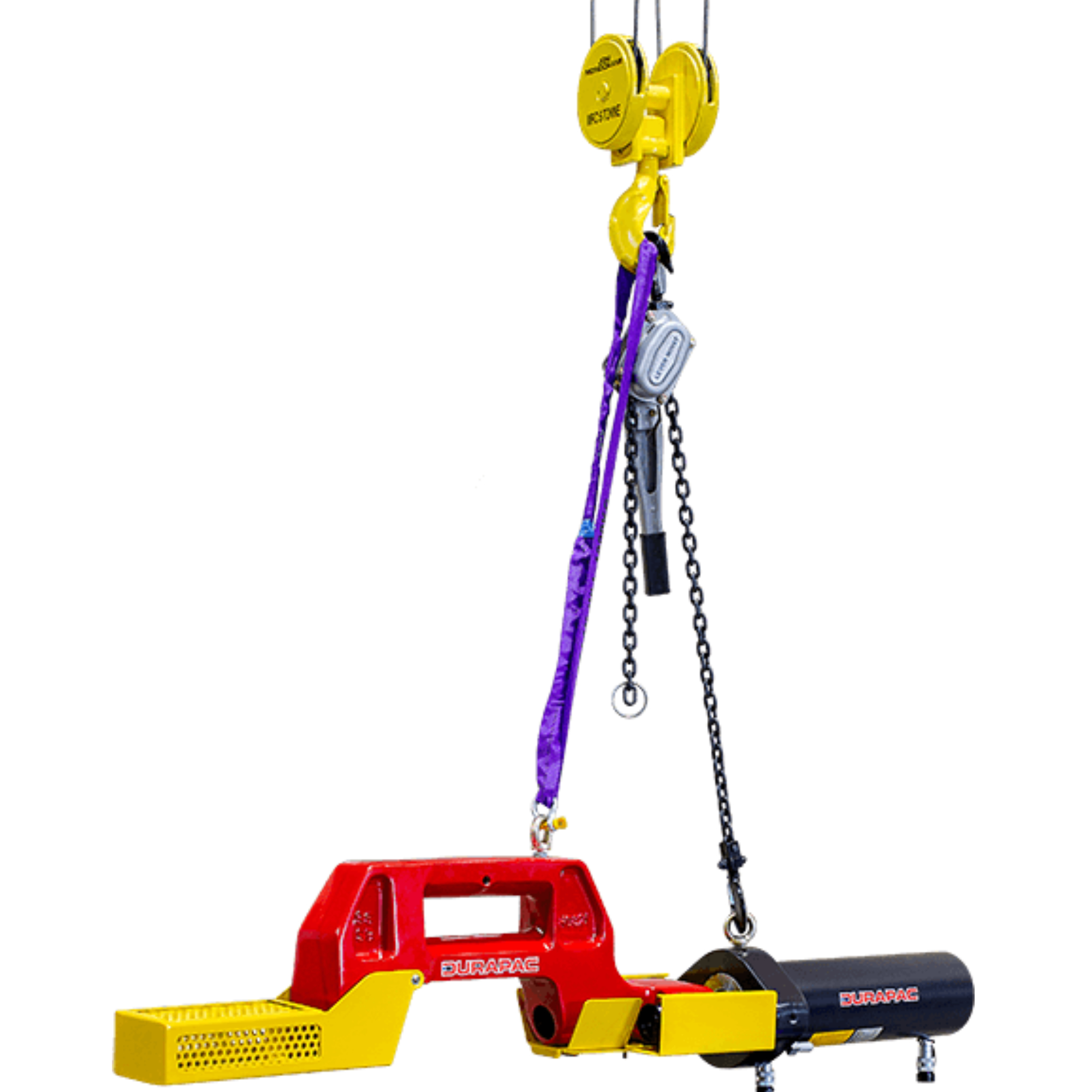

    1 x cast steel `C’ frame, 1 x double acting hydraulic cylinder, 2 x tie rod and 2 x nuts for connecting `C’ frame and cylinder, 1 x tripod with chain pulley block, chain pulley block hook, lifting belt (set) for handling, 10 x tooling sets, 20T flat jack and storage case.
  • Durability
    The `C’ frame is of cast steel construction and has a `U’ cut out at the front end where the aligning adaptor is fitted.
  • Portability

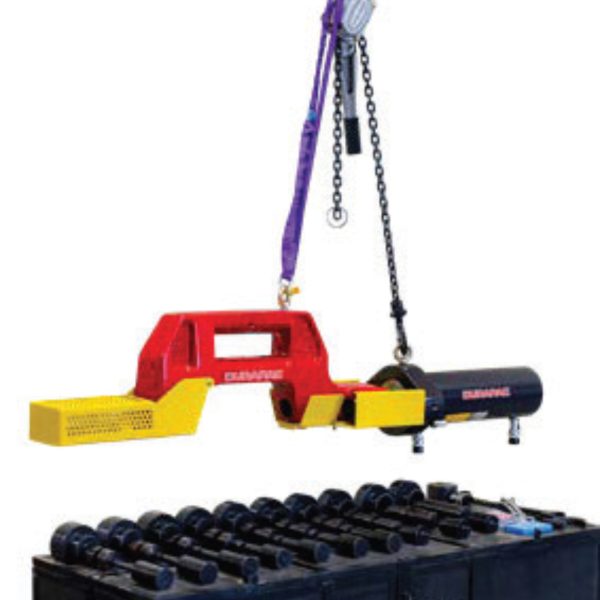

    The Track Link Pin Pusher is supplied with a robust storage case to house all components including tooling.

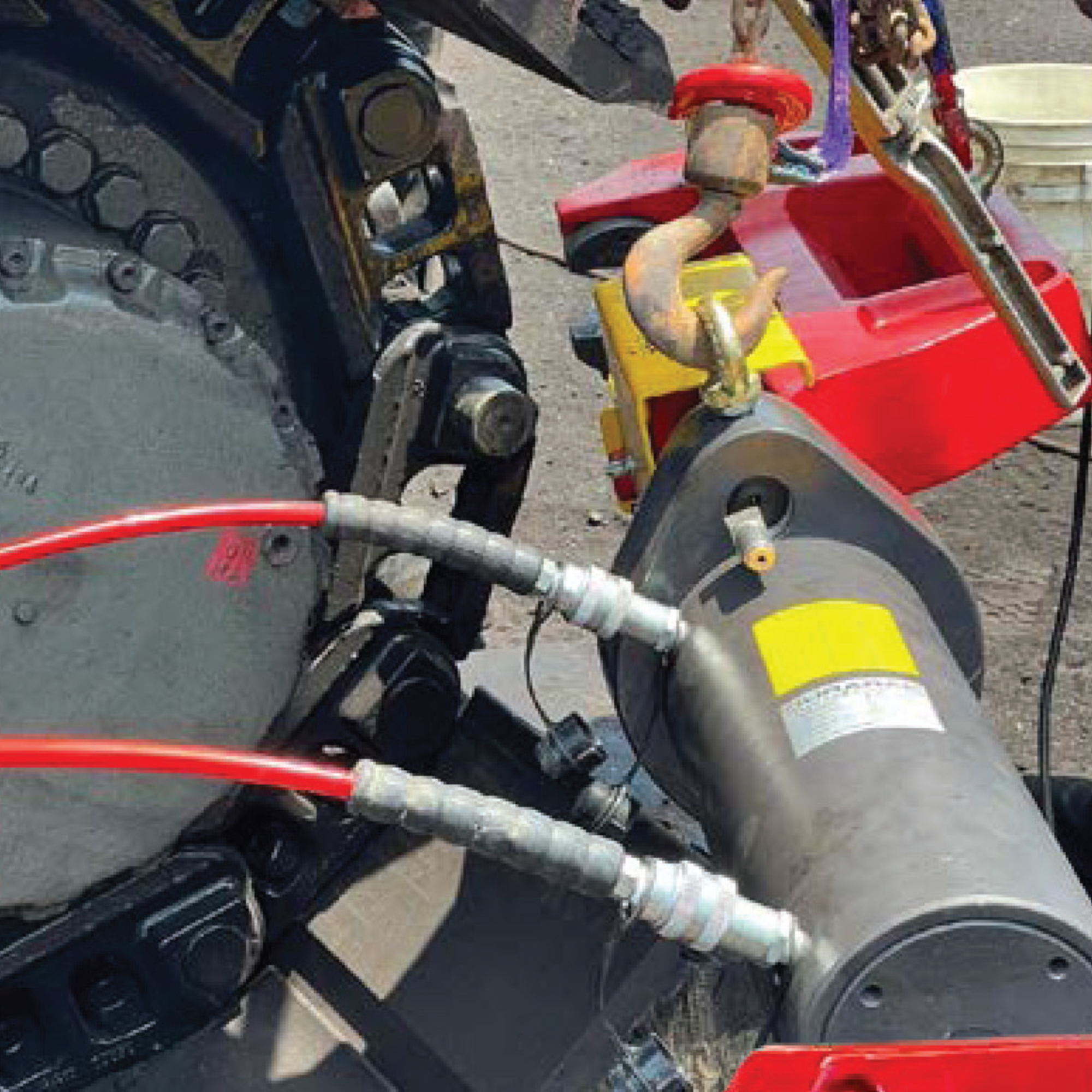

  • Double Acting Cylinder
    The double acting hydraulic cylinder is made in alloy steel and has long stroke with which the master pin can be pushed or installed in one stroke. Industry standard high flow couplings included.
