Porta Gantry

The top quality and highly durable Reid Portagantry is lightweight and extremely strong.

  • This portable lifting system can be manually assembled, using just four bolts and can safely lift up to 5000kg, making it ideal for multiple applications.
  • This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials.

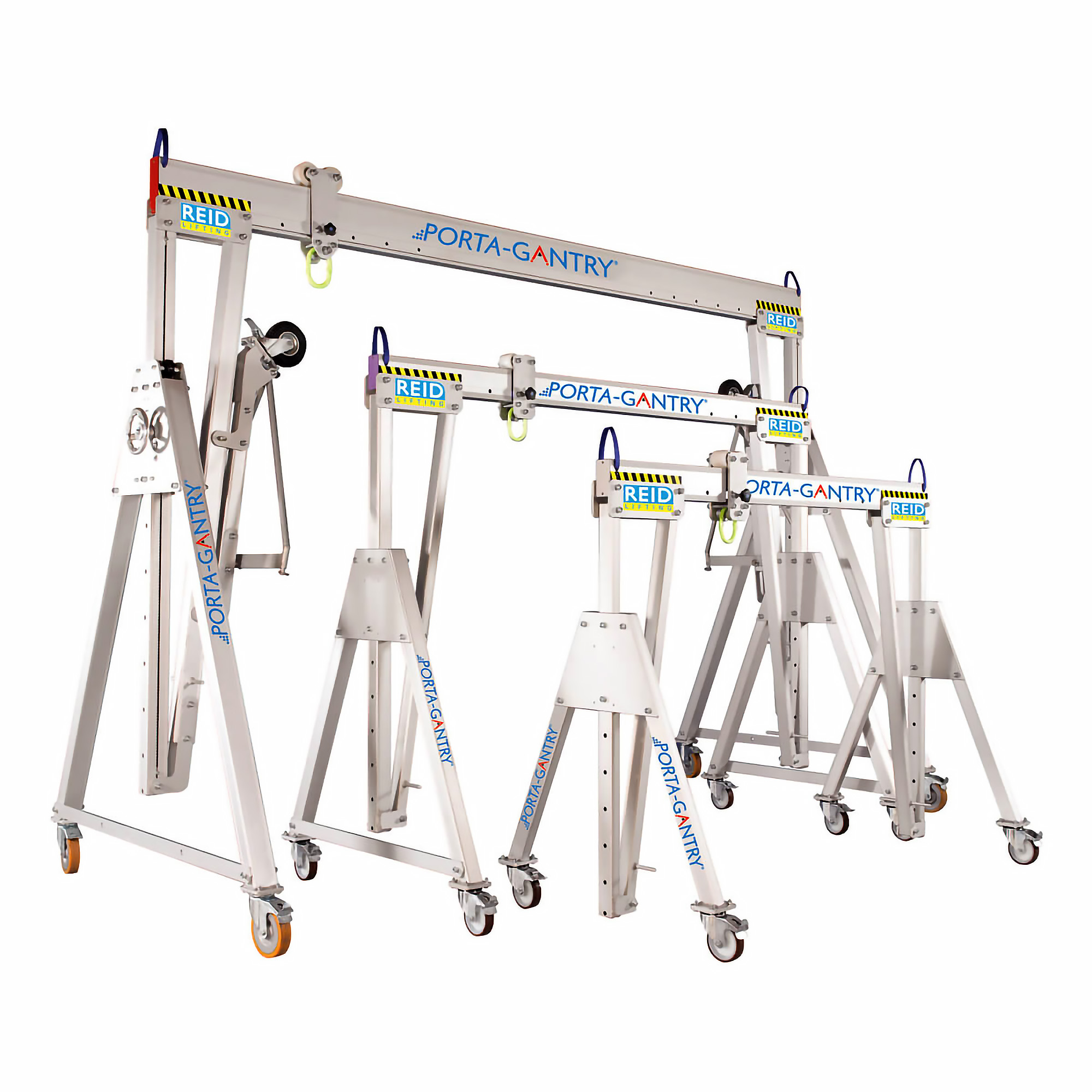

  • The Portagantry range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available.

Additional Information

More Information


  • Can support goods and personnel lifting; Goods WLL of up to 5000kg and Personnel WLL of up to 2500kg
  • Suitable for up to 5 persons for fall protection applications
  • Beams and A-frames can be interchanged
  • Ergonomic 360° swivel-locking castors, as standard
  • Ease of assembly including height and span adjustment
  • Anodised for increased corrosion resistance
  • Engineered designs and bespoke sections reduce weight, providing lightweight portability
