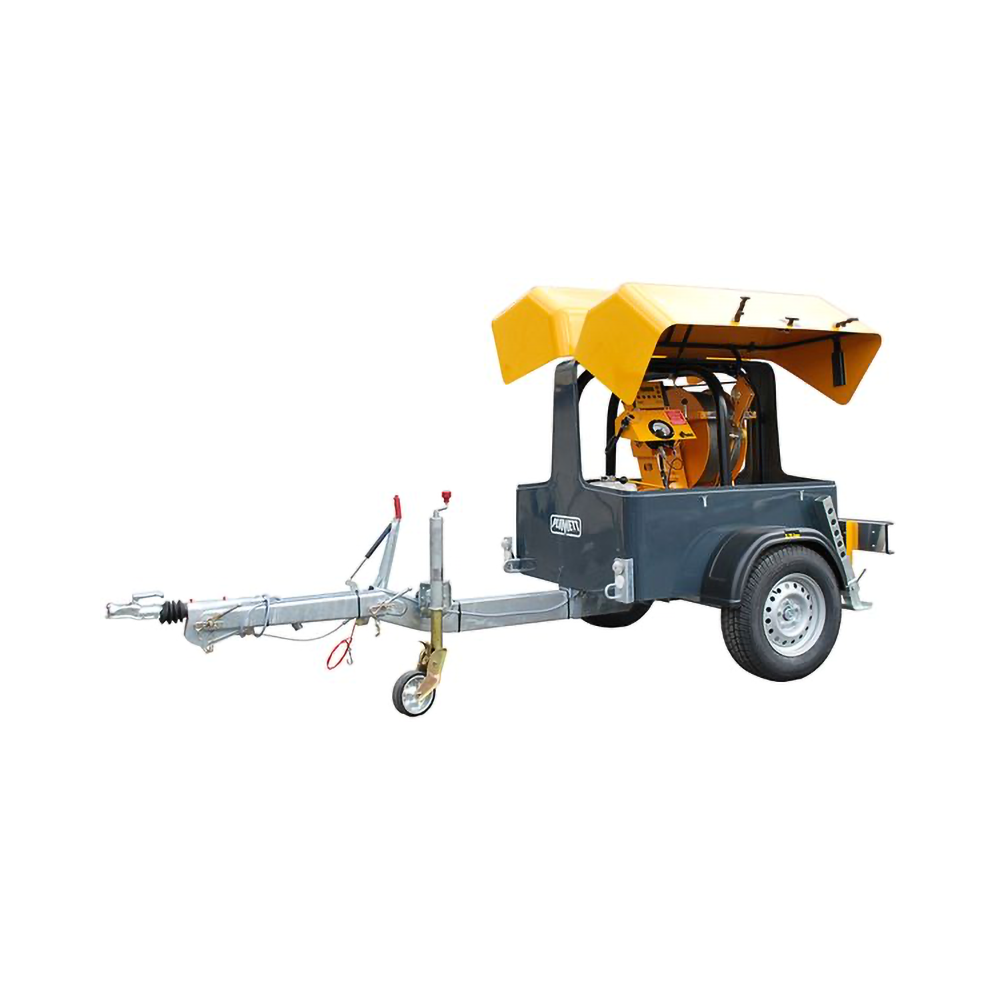

Plumettaz TL 2019 DR-520 Mechanic Capstan Winch Trailer
The Plumettaz TL 2019 DR-520/8 is a Honda petrol mechanic trailer-mounted capstan winch for underground telecommunications and power cable laying in pre-installed ducts, open trenches, and subducting operations. Delivers 2,000 daN pulling force in 1st gear and 1,000 daN in 2nd gear with 520 m of 8–9 mm rope. Powered by a Honda Gasoline GX270 SXE engine at 6.3 kW. The most compact and lightest model in the mid-size frame family at 560 kg. Dual capstan system, automatic overload limiter, and automatic rope storage as standard.
More Information
The Plumettaz TL 2019 DR-520/8 is the lightest and most manoeuvrable model in the mid-size family — a Honda petrol mechanic capstan winch delivering 2,000 daN pulling force in a compact trailer well-suited to shorter cable runs and tighter site access.
Key Features
-
-
- Honda Gasoline GX270 SXE — 6.3 kW — proven, readily serviced petrol engine; straightforward mechanical drive with no hydraulic system to maintain
- Mechanic direct drive — simple, robust drivetrain with minimal moving parts; easy to operate and maintain on site
- 2,000 daN pulling force in 1st gear — 1,000 daN in 2nd gear; highest 2nd gear pulling force in the mid-size family
- 520 m rope capacity — 8–9 mm rope; dual-speed capstan covers 5–11.9 m/min in 1st gear and 9.8–23.5 m/min in 2nd gear
- Lightest in the mid-size family — 560 kg without rope; easiest to tow and reposition on site
- Dual capstan system — constant speed and force; automatic rope storage via swivelling pulley for low-tension winding regardless of pulling force
- Automatic overload limiter — stops the winch instantly on overload; reverse gear for safe and controlled rope unwinding
- Road-ready trailer — suspension axle and overhanging protective canvas; compact mid-size frame for tight access
-
Typical Applications
-
-
- Underground telecommunications and power cable laying in pre-installed ducts
- Open trench cable installation
- Subducting operations
- Shorter cable runs where 520 m rope capacity is sufficient
- Sites requiring a lightweight, easily manoeuvrable trailer unit
-
How It Compares — Mid-Size Frame Family
| Spec | TL 2019 DR-520/8 | TL 2019 DR-730/8 | TL 2422 DRH-1300/8 | TL 2422 DRHZ-1300/8 |
|---|---|---|---|---|
| Drive | Mechanic | Mechanic | Hydraulic | Hydraulic |
| Engine | Honda GX270 SXE 6.3 kW | Honda GX270 SXE 6.3 kW | Honda GX630 15.5 kW | Hatz Diesel 9.6 kW |
| Max. Pull 1st Gear (daN) | 2,000 | 2,000 | 2,400 | 2,400 |
| Max. Pull 2nd Gear (daN) | 1,000 | 1,000 | 500 | 500 |
| Pay-in Speed 1st Gear (m/min) | 5–11.9 | 5–11.9 | 0–20 | 0–18 |
| Pay-in Speed 2nd Gear (m/min) | 9.8–23.5 | 9.8–23.5 | 0–80 | 0–68 |
| Pay-out Speed (m/min) | 0–80 | 0–80 | 0–80 | 0–68 |
| Max. Rope Length (m) | 520 | 730 | 1,300 | 1,300 |
| Weight without rope (kg) | 560 | 590 | 853 | 928 |
📊 Specifications
| Spec | TL 2019 DR-520/8 |
|---|---|
| Standard Version | Capstan-winch |
| Type | TL 2019 DR 520/8 |
| Rope Diameter (mm) | 8–9 |
| Max. Rope Length (m) | 520 |
| Drive Unit | Mechanic |
| Engine / Motor | Honda Gasoline GX270 SXE |
| Max. Power (kW) | 6.3 |
| Max. RPM (min⁻¹) | 3,600 |
| Max. Pulling Force 1st Gear (daN) | 2,000 |
| Max. Pulling Force 2nd Gear (daN) | 1,000 |
| Pay-in Speed 1st Gear (m/min) | 5–11.9 |
| Pay-in Speed 2nd Gear (m/min) | 9.8–23.5 |
| Pay-out Speed (m/min) | 0–80 |
| Remote Monitoring | — |
| Length, handlebar high (mm) | 3,260 |
| Width (mm) | 1,700 |
| Height, wheels high (mm) | 1,690 |
| Weight without rope (kg) | 560 |
Standard equipment: Dual capstan system · Automatic overload limiter · Reverse gear · Automatic rope storage via swivelling pulley · Suspension axle trailer · Overhanging protective canvas
Note: Optional MP 50 electronic assistant available for monitoring and recording pulling force and installation values during operation. For longer rope capacity in the same mechanic drive configuration, see the TL 2019 DR-730/8. Contact HTC for pricing and availability.
