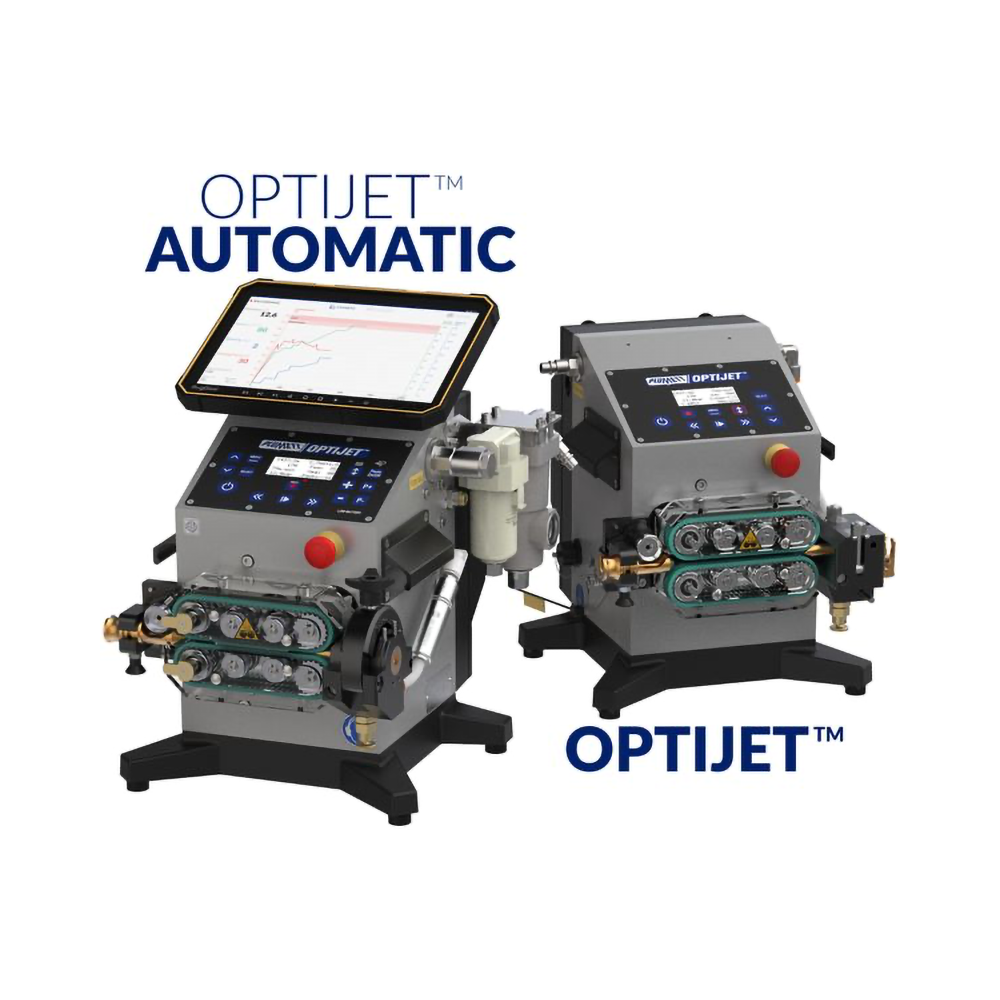

Plumettaz OptiJet Micro-Cable Blowing Machine
The Plumettaz OptiJet™ is a compact, battery-powered micro-cable blowing machine for fibre optic micro-cables and fibre units from 1.5 to 8 mm in micro-ducts from 3 to 16 mm OD. Both variants deliver 8–150 N pushing force at up to 100 m/min with automatic crash testing and automatic pushing force and cable clamping settings. The OptiJet™ Automatic adds fully autonomous operation — automatic air pressure management, wireless tablet reporting, installation assistance software, and Remote Monitoring. No generator, no power cord, no compressed air waste.
More Information
The Plumettaz OptiJet™ is a battery-powered micro-cable blowing machine built for optical fibre installation — compact, intelligent, and quiet enough to run without a generator. Two variants cover every level of operator from hands-on to fully autonomous.
Key Features
-
-
- Automatic crash test on every run — determines the maximum pushing force for each specific cable and duct combination before installation begins; exclusive to OptiJet™
- Automatic pushing force and cable clamping — set automatically for every cable and duct pairing, protecting the cable jacket from damage or abrasion across the full run
- Belt drive with precise slippage control — stops the cable immediately even during abrupt duct connector impacts, eliminating damaging force on the cable
- Battery-powered electric drive — no power cord, no generator, no fuel; significantly quieter on site and reduces compressed air consumption
- Up to 100 m/min blowing speed — across both variants for micro-cables 1.5 to 8 mm
- Automatic air pressure management (OptiJet™ Automatic only) — hands-free operation; adapts automatically to changing conditions during the run
- Wireless tablet with reporting and installation assistance (OptiJet™ Automatic only) — PDF report generation, remote transmission, and access to Plumettaz Remote Monitoring digital service
-
Typical Applications
-
-
- Optical fibre micro-cable and fibre unit installation in microducts
- FTTH and FTTB network deployment
- Telecom infrastructure build-out and upgrade
- Long-distance and high-speed micro-cable laying where cable protection is critical
-
Range Overview
| Variant | Air Pressure Management | Reporting | Remote Monitoring | Batteries Included | Machine Weight (kg) |
|---|---|---|---|---|---|
| OptiJet™ | Manual | No | No | 2 | 17 |
| OptiJet™ Automatic | Automatic | Wireless tablet | Yes | 4 | 20 |
Both variants share identical cable and duct compatibility, pushing force, and maximum speed.
📊 Specifications
| Spec | OptiJet™ | OptiJet™ Automatic |
|---|---|---|
| Type | — | Automatic |
| Cable Diameter (mm) | 1.5 – 8.0 | 1.5 – 8.0 |
| Duct OD (mm) | 3.0 – 16 | 3.0 – 16 |
| Drive Unit | Electric | Electric |
| Batteries Included | 2 | 4 |
| Pushing Force (N) | 8 – 150 | 8 – 150 |
| Max. Speed (m/min) | 100 | 100 |
| Max. Air Pressure (bar) | 16 | 16 |
| Automatic Crash Test | Yes | Yes |
| Pushing Force & Clamping Settings | Automatic | Automatic |
| Air Pressure Management | Manual | Automatic |
| Editing and Sending Reports | No | Wireless tablet |
| Installation Assistance Software | No | Yes |
| Remote Monitoring Digital Service | No | Yes |
| Apparatus Dimensions L×W×H (mm) | 325 × 385 × 325 | 340 × 400 × 415 |
| Transport Box L×W×H (mm) | 620 × 420 × 410 | 620 × 420 × 410 |
| Tools & Accessories Box L×W×H (mm) | 620 × 420 × 410 | 620 × 420 × 410 |
| Machine Weight (kg) | 17 | 20 |
| Total Shipping Weight (kg) | 38 | 41 |
Available add-ons (both variants): Set of duct inserts · Cable guide · Set of lip seals for cables
Note: Contact HTC for accessory compatibility by cable and duct size, pricing, and availability.
