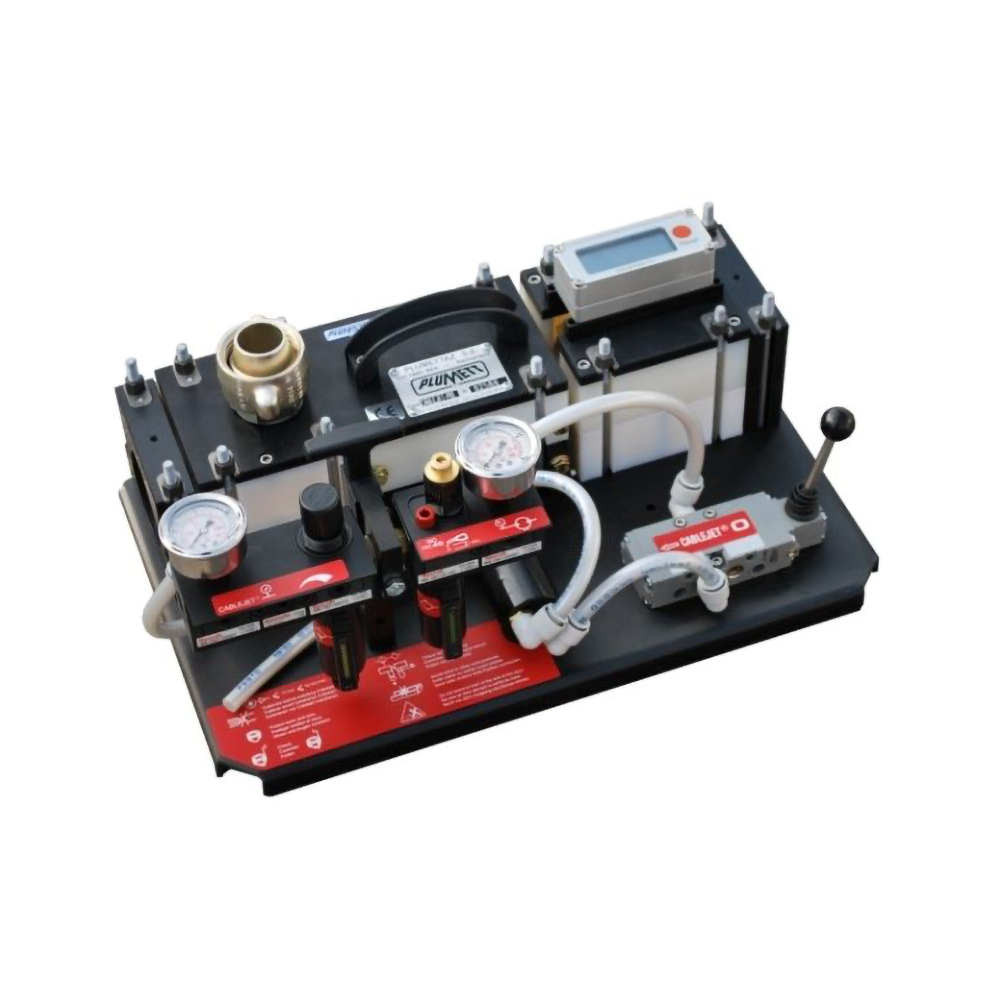

Plumettaz CableJet Fibre Optic Cable Blowing Machine
The Plumettaz CableJet™ is a compact, pneumatic cable blowing and floating machine for fibre optic, coaxial, and multipair telecommunications cables in pre-installed ducts — with over 35 years of proven worldwide service. Handles cables from 9 to 18 mm in ducts from 20 to 63 mm OD at up to 100 m/min, with 0–300 N pushing force. Distance and speed counter included as standard. Lightweight at 21 kg, supplied with a full maintenance toolbox. Sonic head available for long-distance installations.
More Information
The Plumettaz CableJet™ is the original cable jetting workhorse — over 35 years of worldwide service blowing fibre optic, coaxial, and multipair cables into pre-installed ducts. Compact, reliable, and built to last.
Key Features
-
-
- 35+ years of proven worldwide service — the most established cable blowing machine in the Plumettaz lineup with the largest global installation references
- Blowing and floating capable — installs fibre optic, coaxial, and multipair cables in pre-installed ducts by air or water injection
- Pneumatic drive — 0.5 m³/min at 4 bar; up to 100 m/min for cables 9 to 18 mm in ducts 20 to 63 mm OD
- 0–300 N pushing force — suitable across a wide range of duct conditions and installation distances
- Distance and speed counter — included as standard for precise installation control
- Supplied with full maintenance toolbox — all tools needed for on-site servicing and maintenance included
- Sonic head compatible — optional sonic head available for long-distance or demanding installations
-
Typical Applications
-
-
- Fibre optic, coaxial, and multipair cable installation in pre-installed ducts
- FTTH, FTTB, and backbone telecom network deployment
- Long-distance and high-reliability cable laying where proven equipment is required
- Infrastructure maintenance and cable replacement in existing duct networks
-
📊 Specifications
| Spec | CableJet™ |
|---|---|
| Standard Version | CableJet™ |
| Type | P01 |
| Cable Diameter (mm) | 9 – 18 |
| Duct OD (mm) | 20 – 63 |
| Drive Unit | Pneumatic |
| Max. Air Consumption (m³/min) | 0.5 (at 4 bar) |
| Pushing Force (N) | 0 – 300 |
| Max. Speed (m/min) | 100 |
| Max. Air Pressure (bar) | 12 |
| Max. Water Pressure (bar) | 25 |
| Apparatus Dimensions L×W×H (mm) | 520 × 320 × 230 |
| Transport Box L×W×H (mm) | 600 × 400 × 340 |
| Tools & Accessories Box L×W×H (mm) | 600 × 400 × 250 |
| Machine Weight (kg) | 21 |
| Total Shipping Weight (kg) | 47 |
Available add-ons: Set of cable inserts · Set of duct inserts · Sonic head
Note: Contact HTC for accessory compatibility, pricing, and availability.
