M2050 Medium Heavy Tester Kit

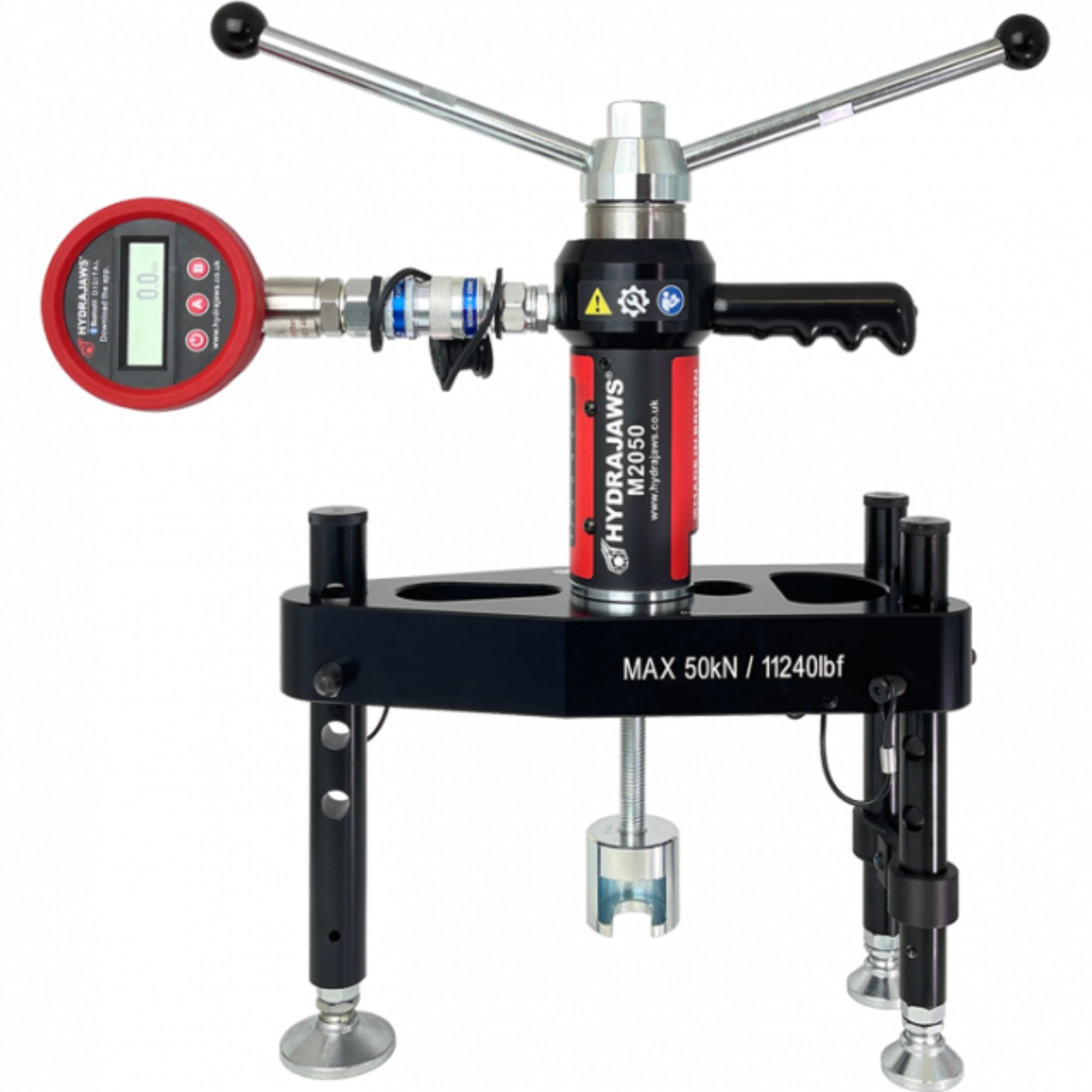

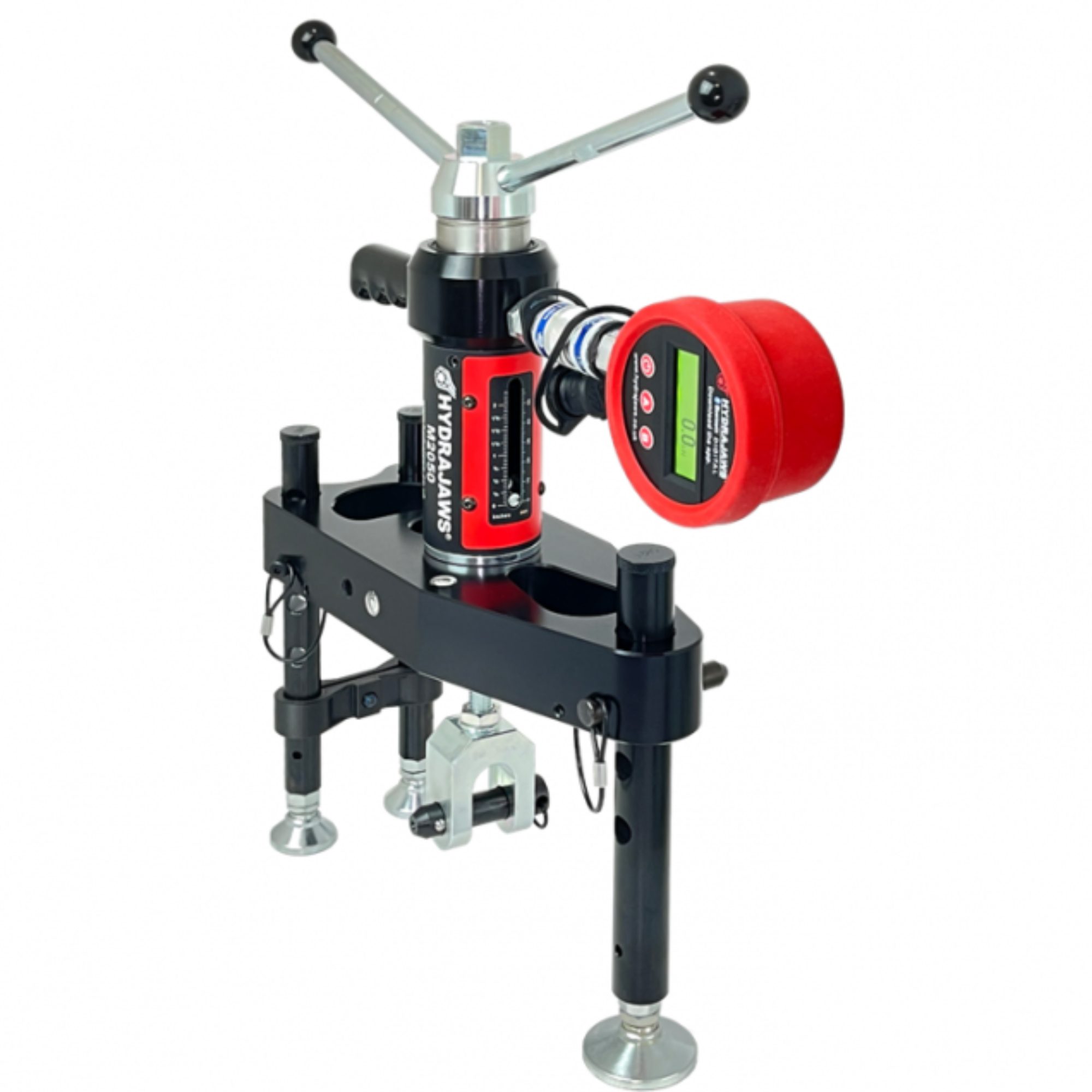

Hydrajaws M2050 Medium Heavy Tester Kit, used for testing a wide range of anchor types.

Extending the testing range to cover 0-50kN, the Hydrajaws M2050 PRO Tester Kit enables engineers to validate the correct installation or establish the safe working loads of a comprehensive range of anchors & fixings in line with BS 8539 up to a maximum tensile load of 50kN.

Made by Hydrajaws in the UK.

Additional Information

More Information

  • Comes with Analogue gauges or 0-50kN Dual Scale digital gauge compatible with the latest Hydrajaws App (detachable for calibration, reduces carrier return costs)

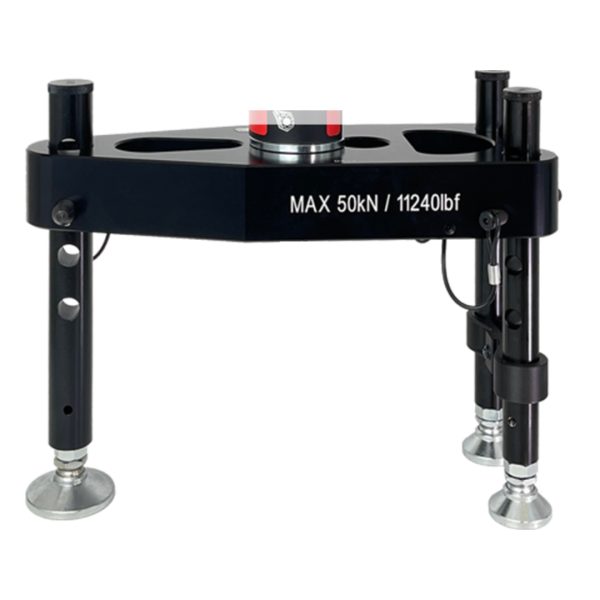

  • 2050 Load spreading bridge featuring height adjustable legs with pin arrangement in six positions with swivel feet giving 30mm of fine adjustment.
  • Turning Handle with 24mm integrated nut (for use in confined spaces)
  • Up to 50mm of stroke
  • The tester is preassembled and accessories can be quickly attached with ease
  • Hydrajaws gauge calibration certificate (valid for 12 months)
  • Supplied in a robust protective carry case with full operating instructions.

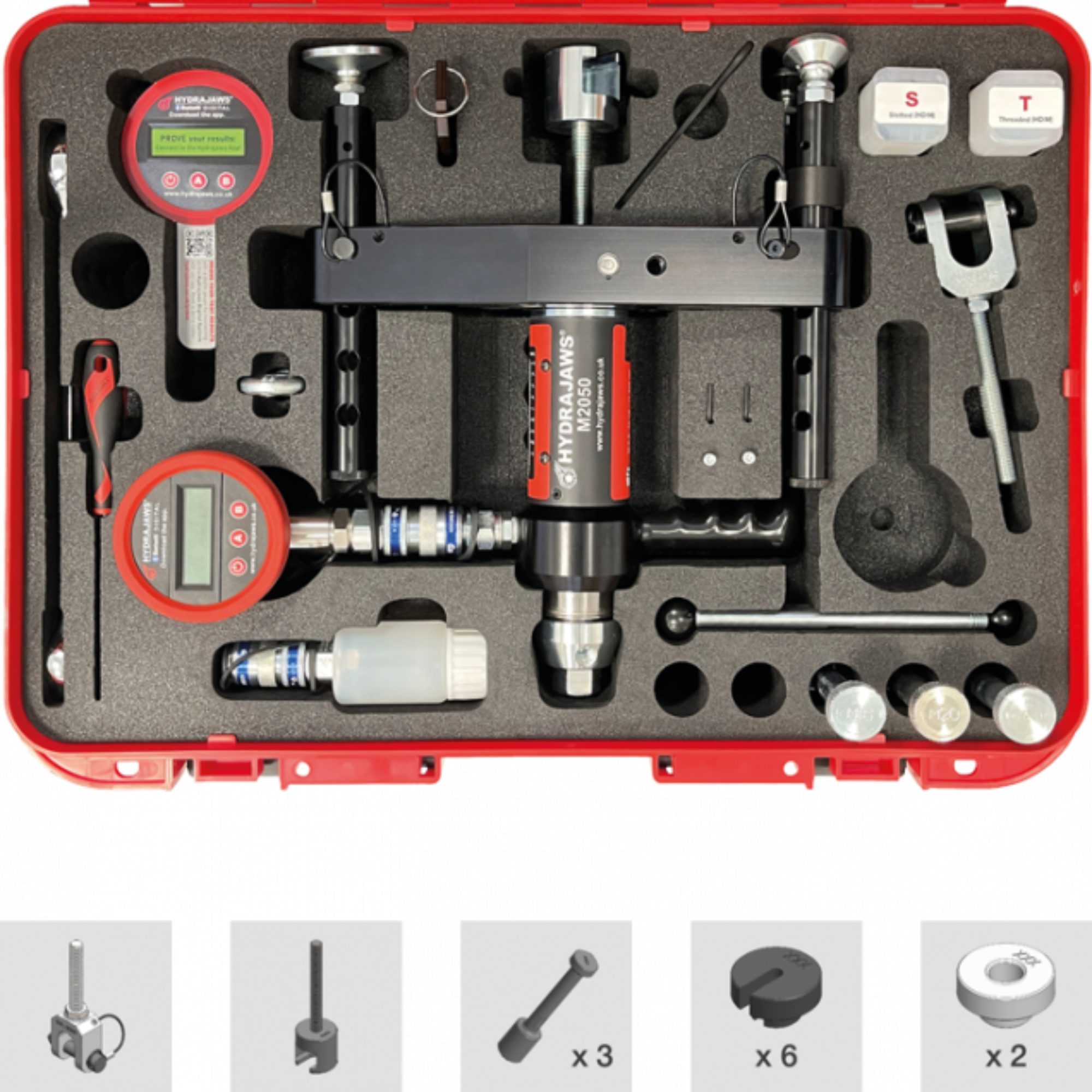

Kit includes the following adaptors:

  • M12 Ringbolt adaptor clevis
  • M12 locking adaptor
  • Bolt tester adaptor
  • M16, M20 & M24 Threaded stud adaptors
  • M10 & M12 Threaded button adaptors
  • Six slotted button adaptors (mm): 4.5, 5.5, 6.5, 8.5, 10.5 & 12.5
