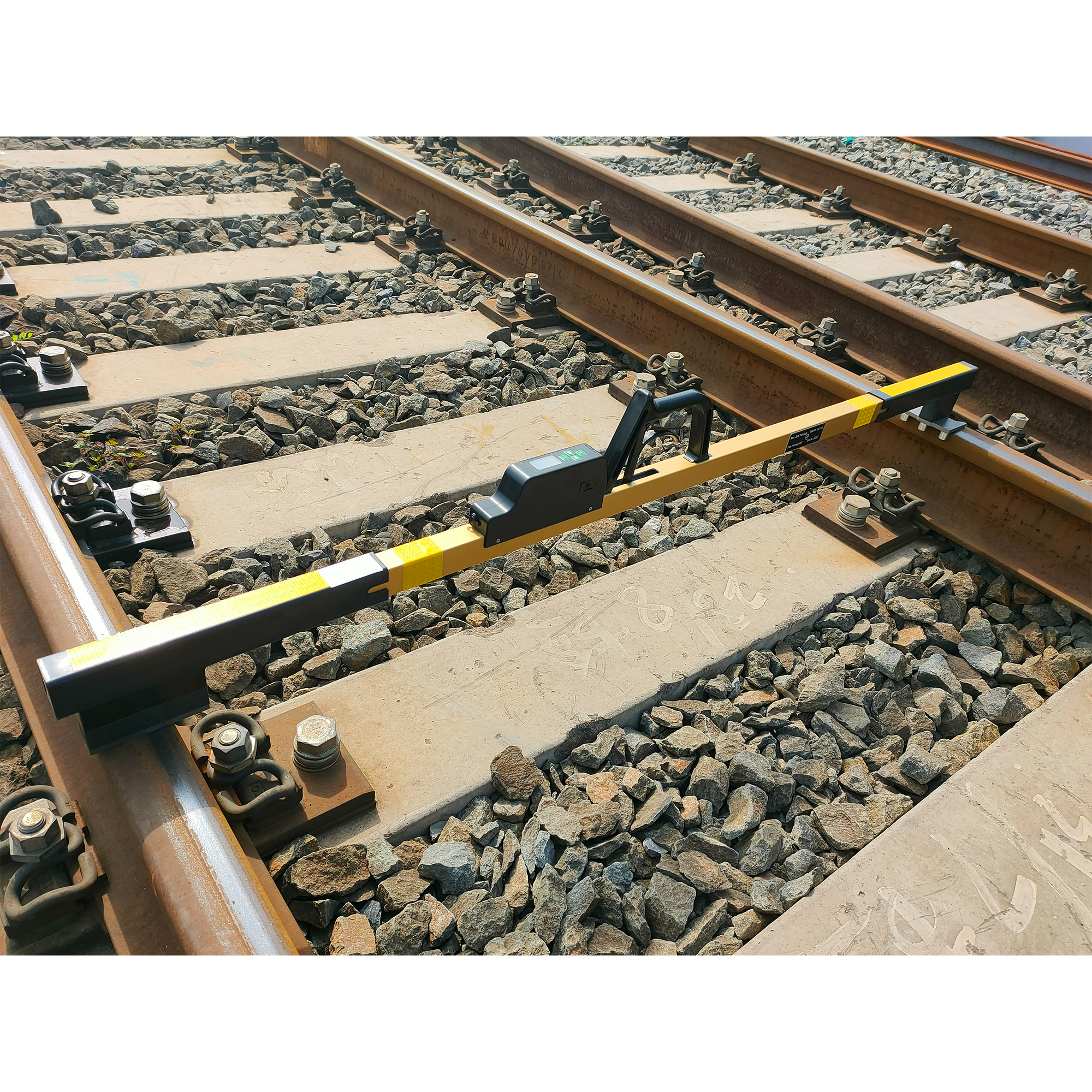

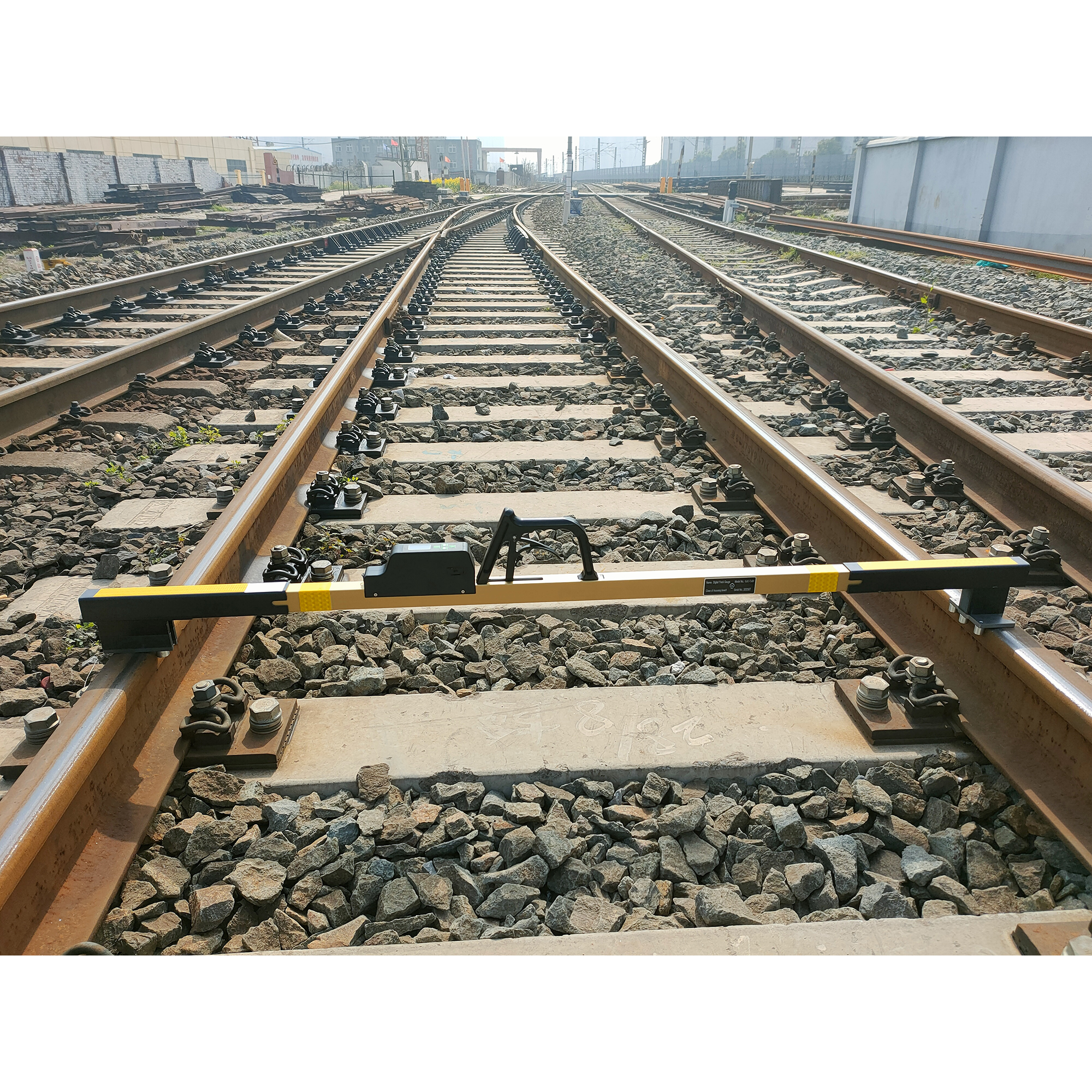

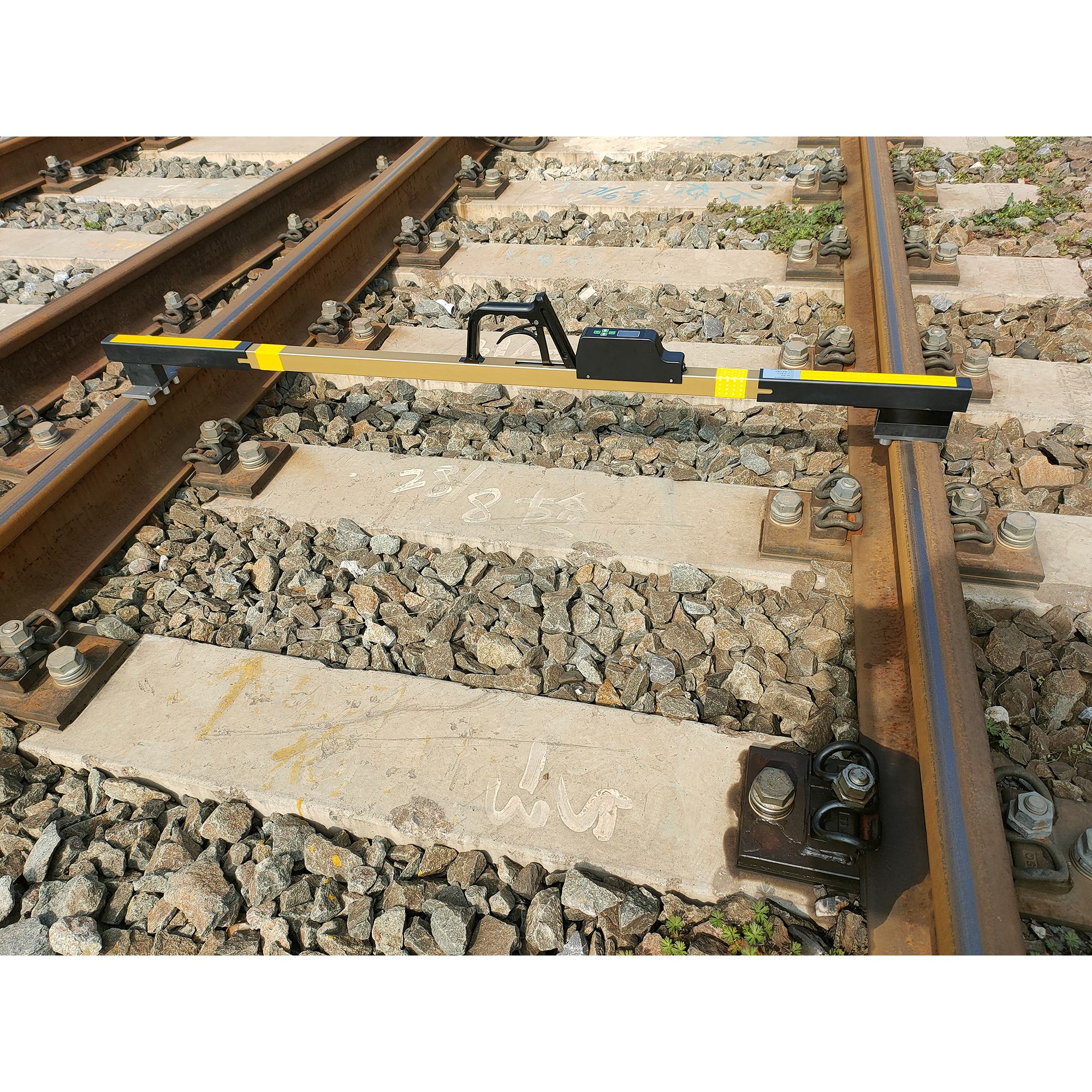

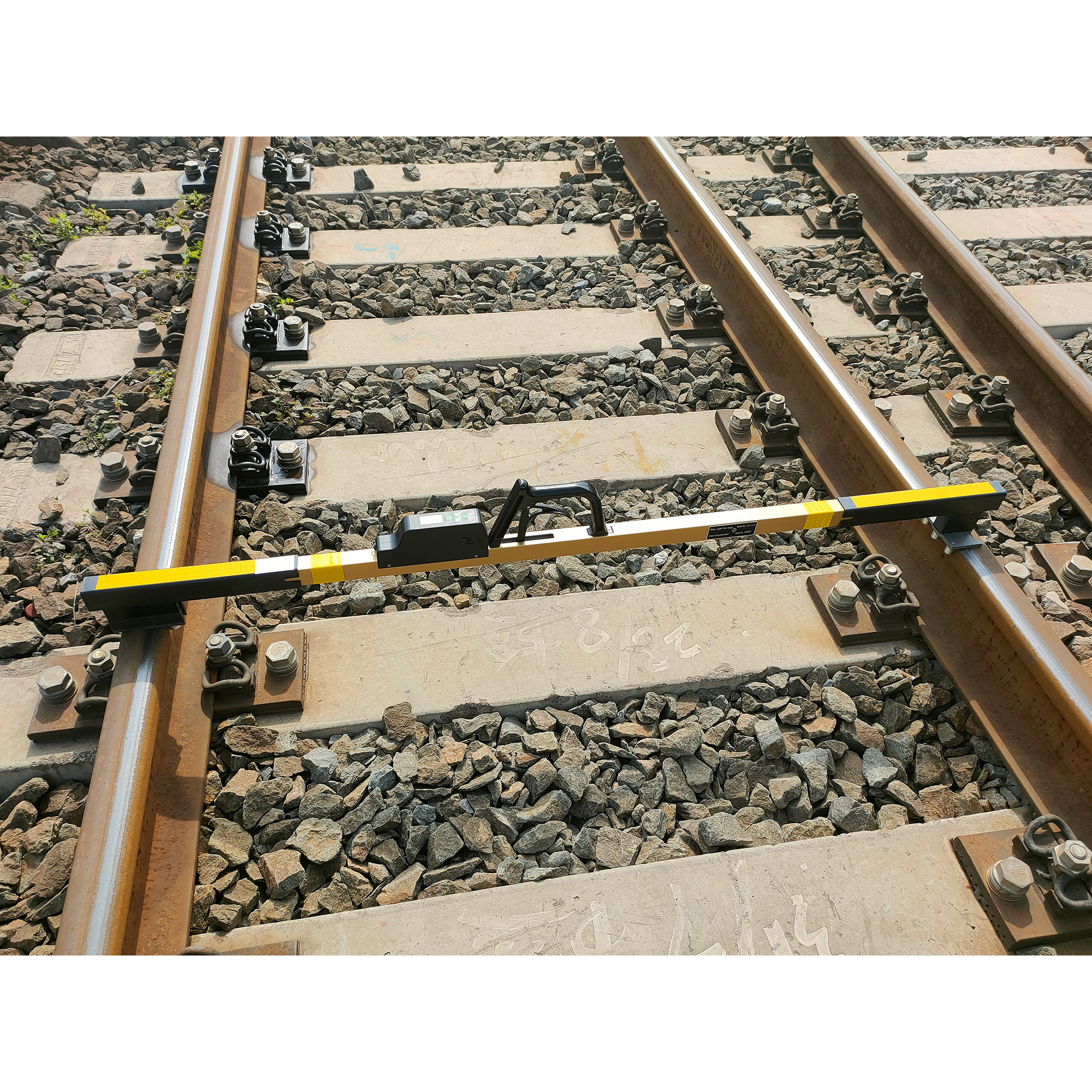

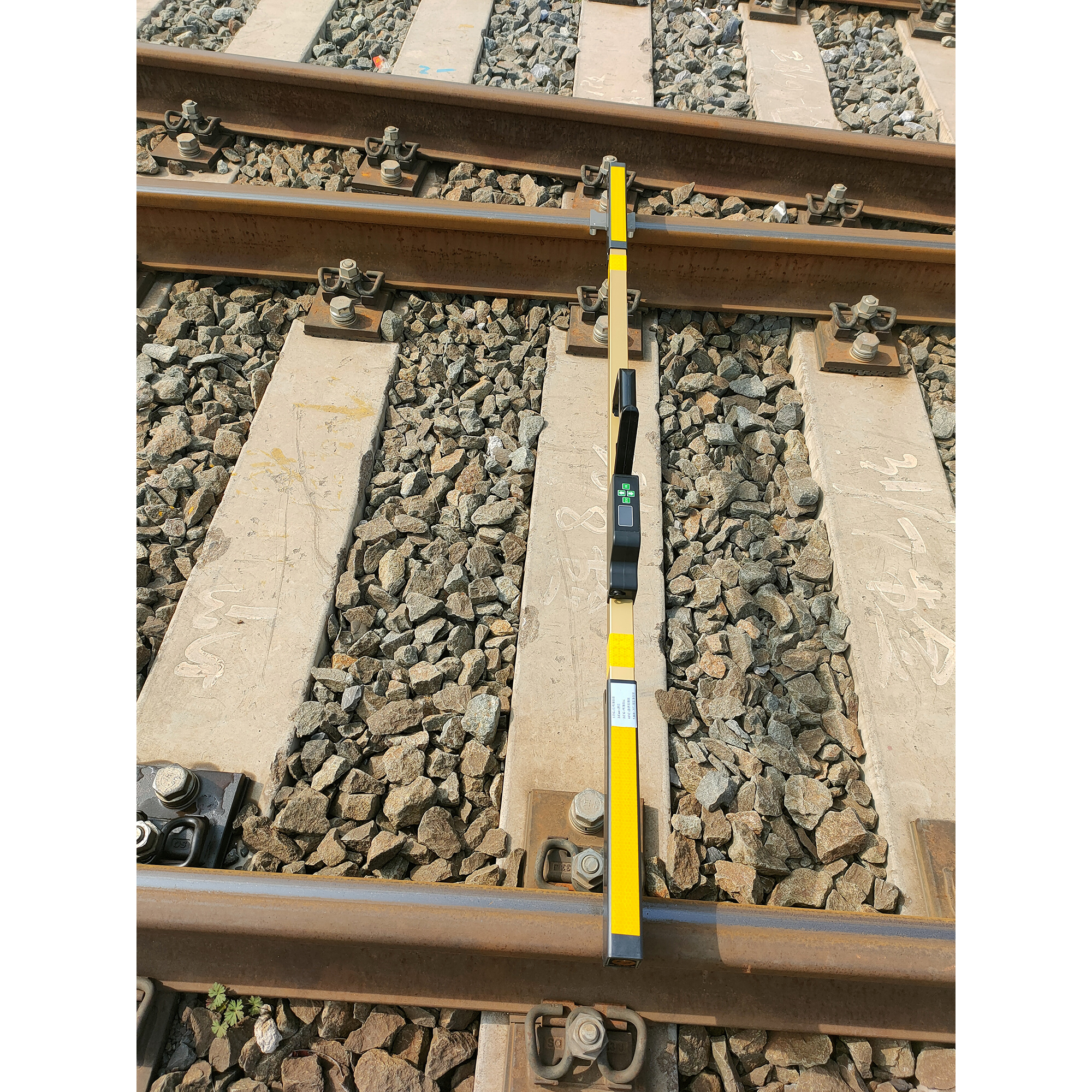

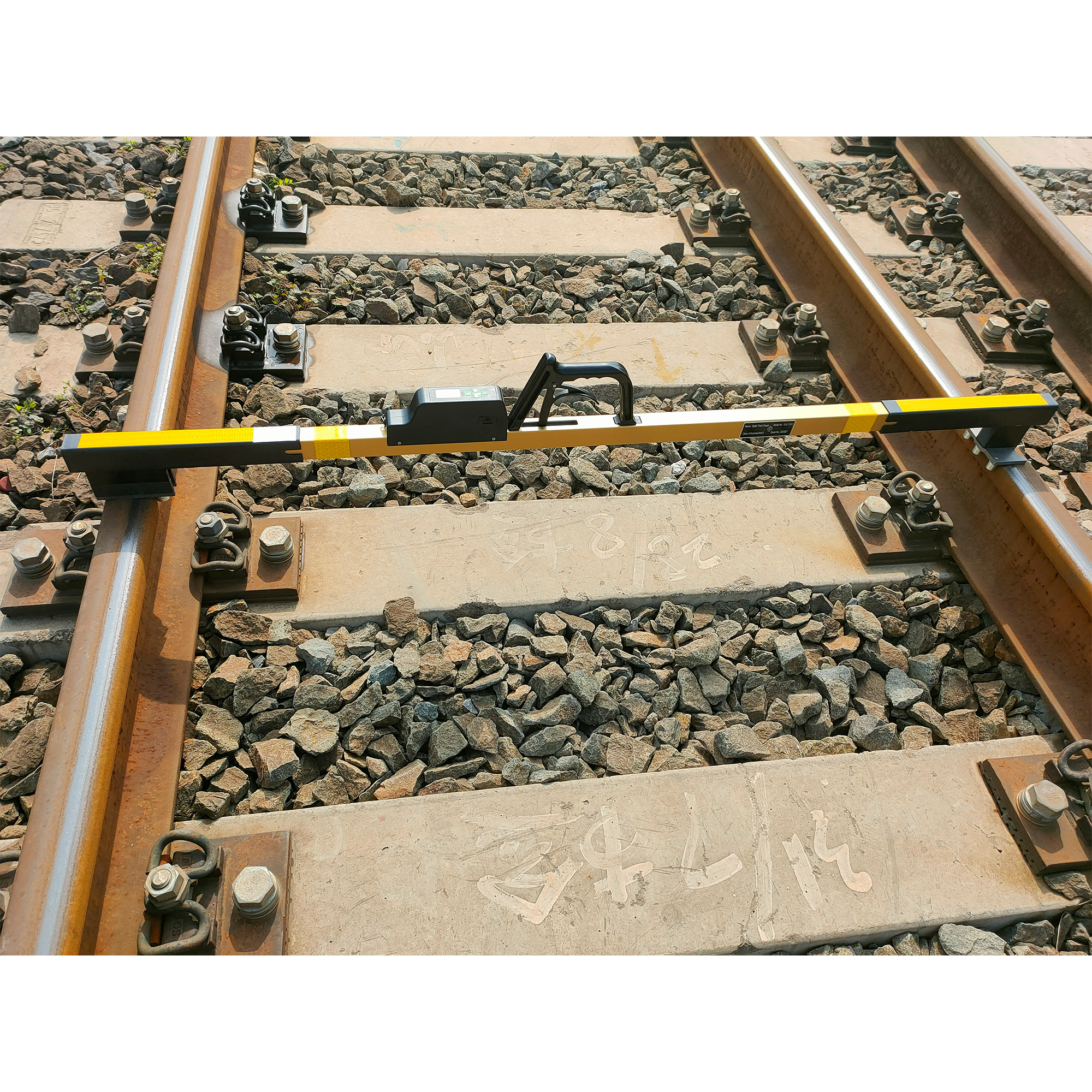

GJC-1067 Track gauge

This digital track gauge is designed for measuring track gauge and super-elevation. The lightweight, reliable and easy to use device offers high measurement accuracy.

The software system supports storing and analyzing measuring data. It can be used for track inspection and rail maintenance. It is easy to carry, legible at night or in direct sunlight, an ideal measuring tool for track fine-tuning, track construction, inspection and track laying.

Categories: , Brand:

More Information

Superelevation measuring range: +-200mm
Display mode: OLED display
Supply Voltage: DC3.4V~5.2V (rechargeable battery)
Superelevation division value: 0.05
Insulation performance: >1MΩ
Track gauge division value: 0.01mm
Superelevation division value: 0.05mm
Track gauge accuracy: ≤±0.25mm
Superelevation accuracy: ≤±0.3mm
