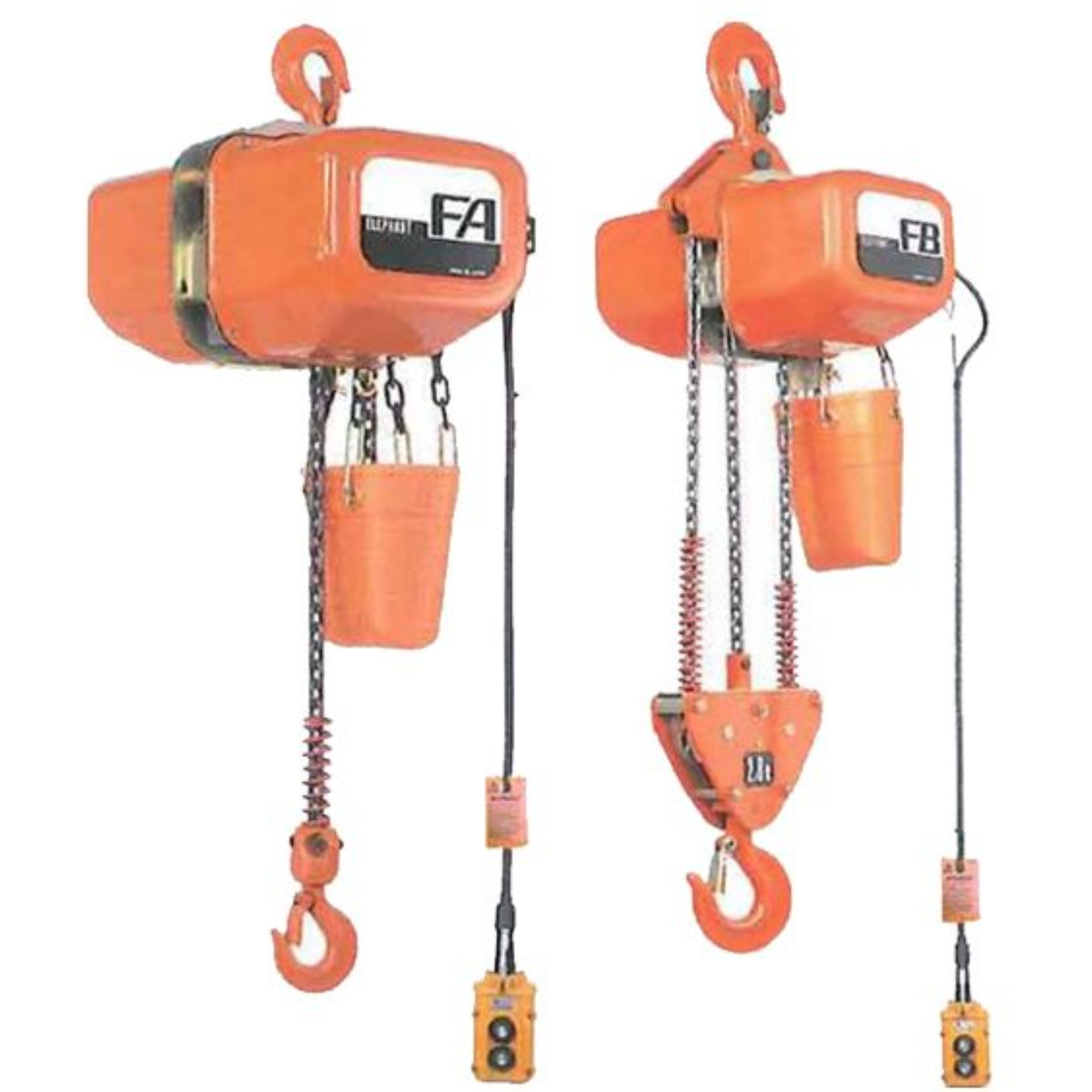

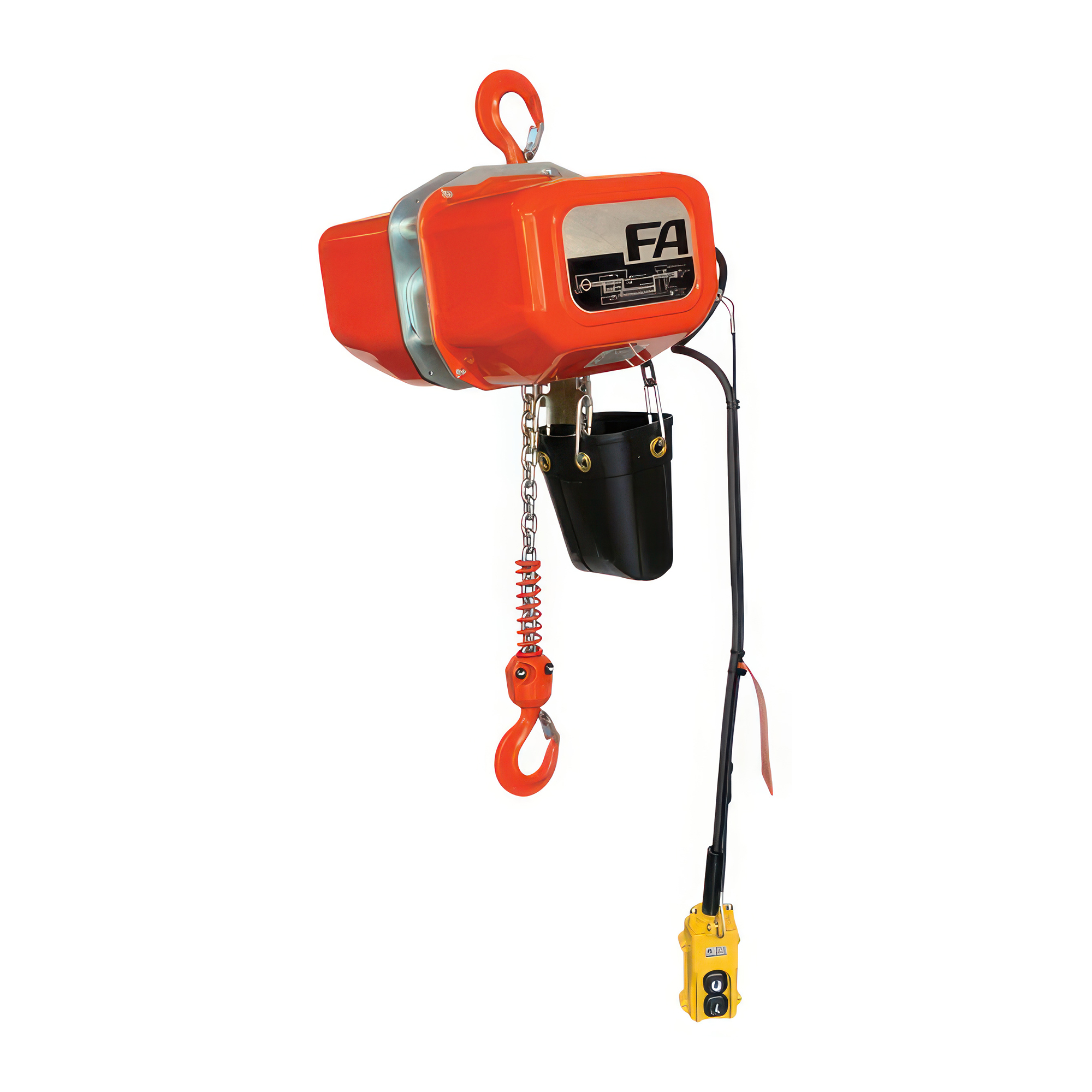

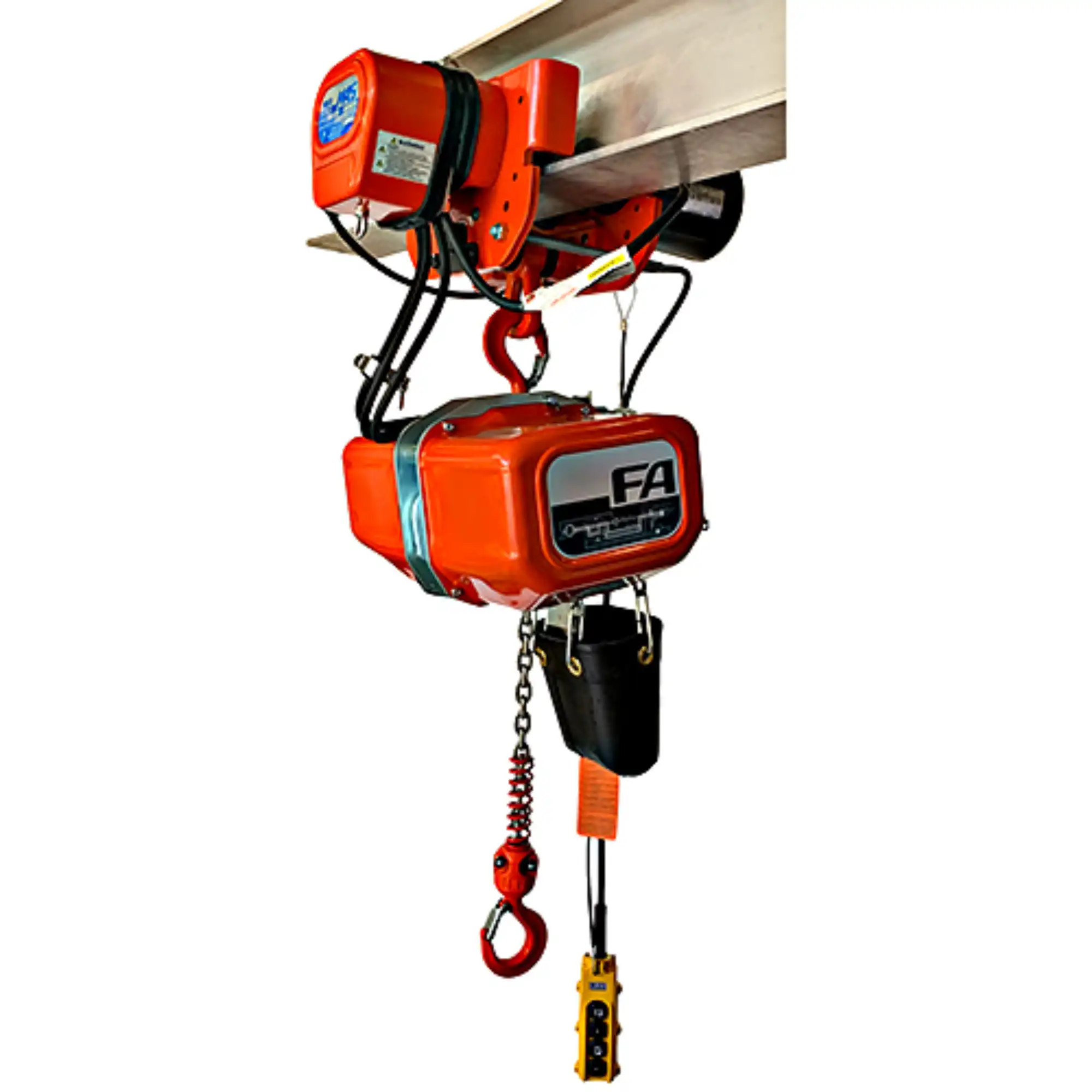

FA / FB Type Electric Chain Hoist

FA TYPE : 1 SPEED, 3 PHASE DUAL VOLTAGE

FB TYPE: 2 SPEED, 3 PHASE SINGLE VOLTAGE

• Tough, Heavy-Duty Motor: Elephant’s unique design for a lower power consumption.
• Reliable Electro-Magnetic DC Brake: The brake safety factor is more than 3 times of the rated load. A safe electromagnetic, power off brake type. The safe ‘power off brake’ holds a load when electric power is either accidentally lost, or intentionally disconnected.
• Highly durable load chain manufactured in Japan by Elephant
• Totally Enclosed Steel Plate Construction
• Durable top and bottom hooks: Bottom hook with bearing smoothly swivels, 360°. In the event of an overload, the hook gradually elongates. This elongation serves as an indicator to the end user, making them aware of the overload.
• Chain Bucket Hard plastic
• Limit switch Standard feature
• Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
• Temperature Range -10° to 40° C,  14° to 104° F
• CSA Compliant Hoist available upon request, excludes motorized trolley

OPTIONAL OVERLOAD LIMIT DEVICE FOR THE FA AND FB HOISTS

Our new Torcon overload protection device is a slip clutch style.  In the event of an overload, the device actuates and prevents the hoist from continuing to lift. This mechanism protects the hoist from damage.

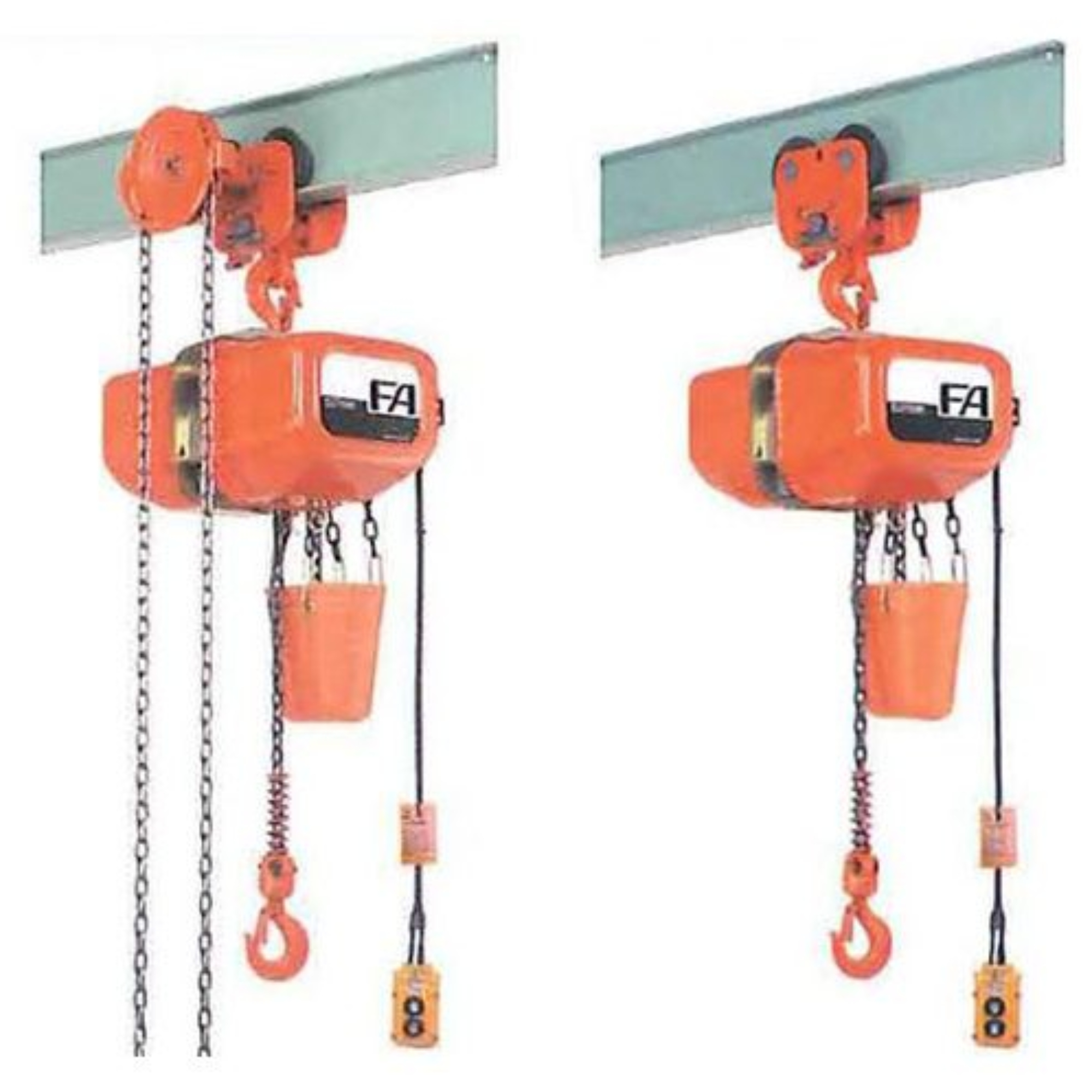

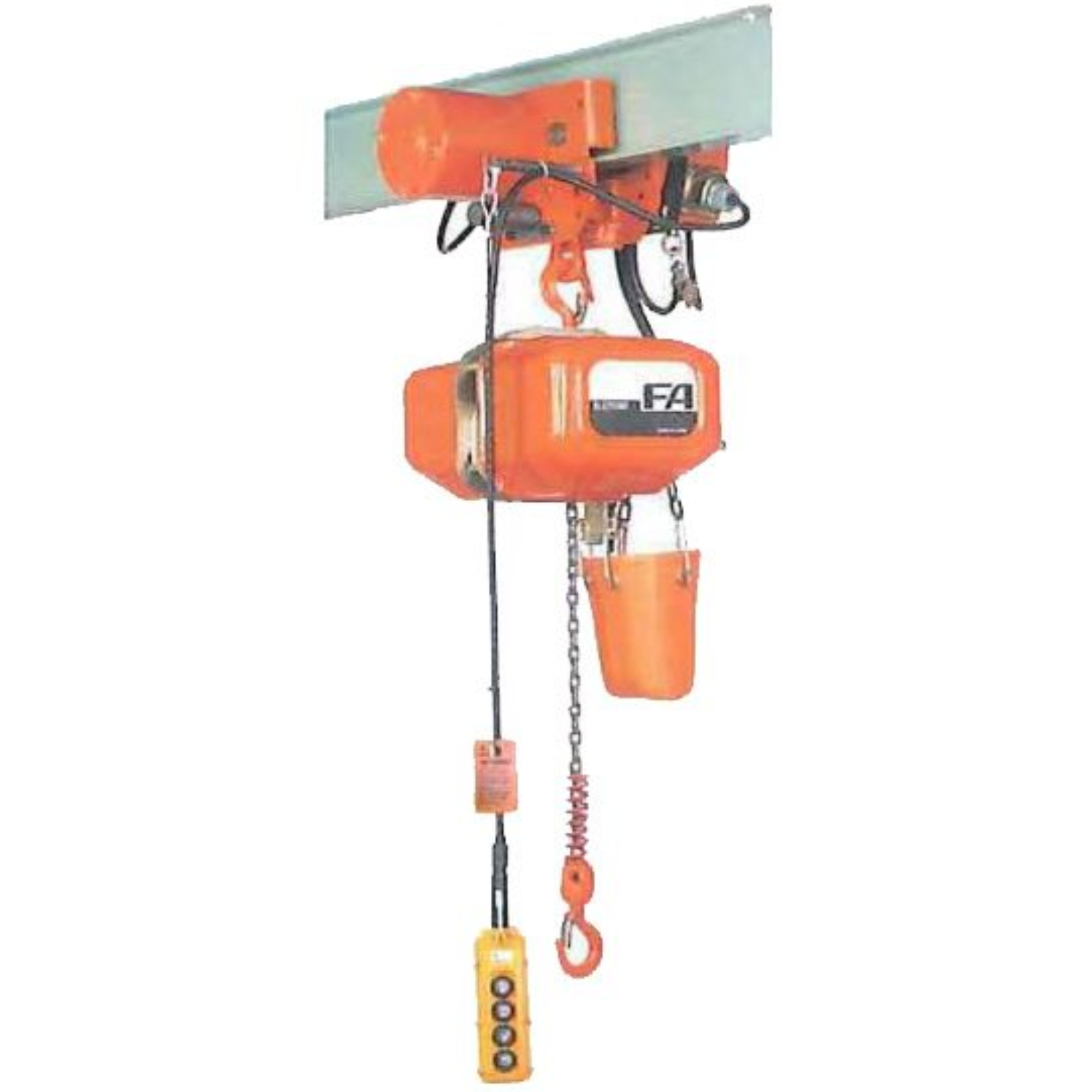

• MAS series motorized trolley, three phase, single speed, slower traversing speed, for  combination with the FA series electric chain hoists
• MAF series motorized trolley, three phase, single speed, faster traversing speed, for combination with the FA series electric chain hoists
• MB series motorized trolley, three phase, dual speed, for combination with the FA series electric chain hoists
• Trolleys come with pivoting adapter for hook to hook type suspension or lug type suspension
