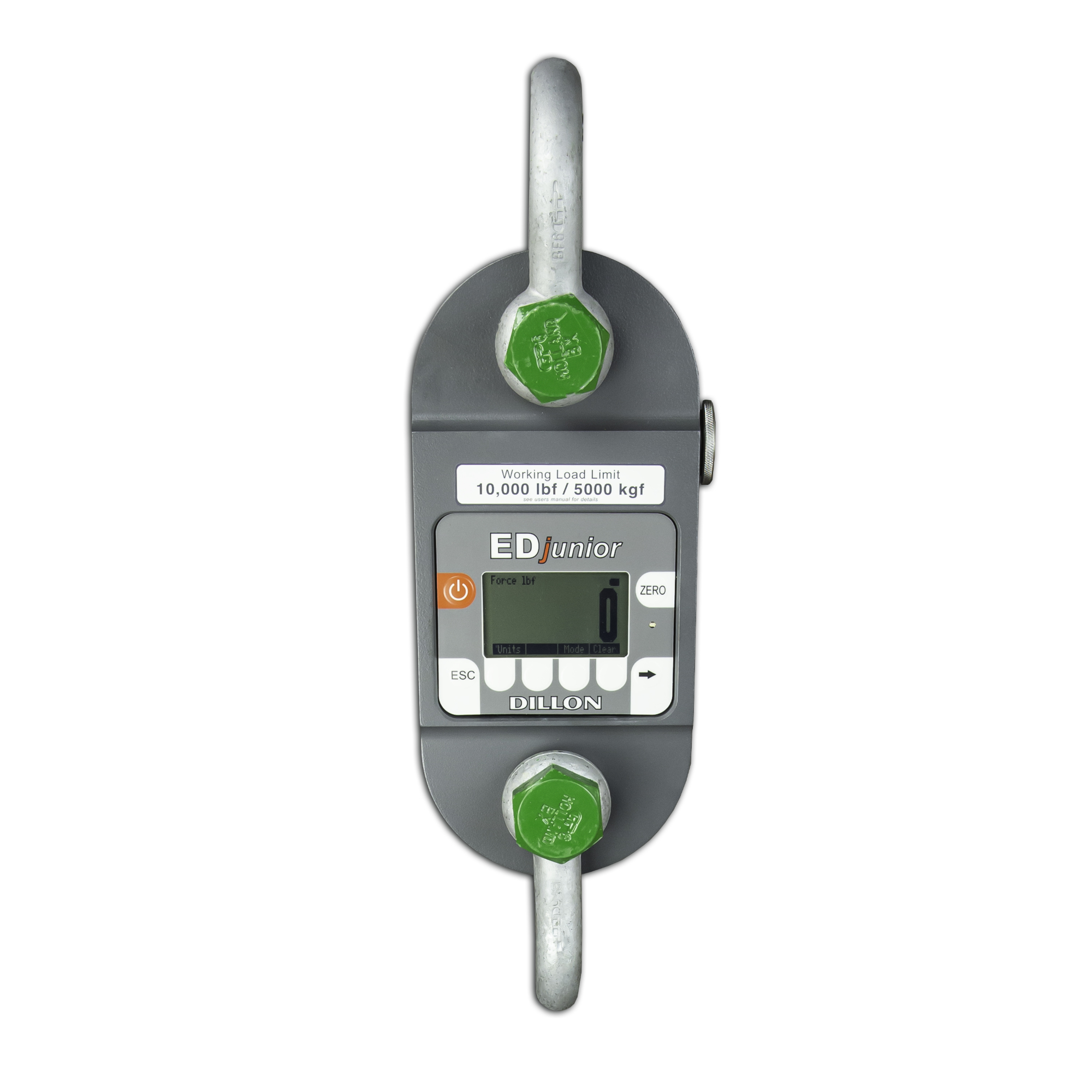

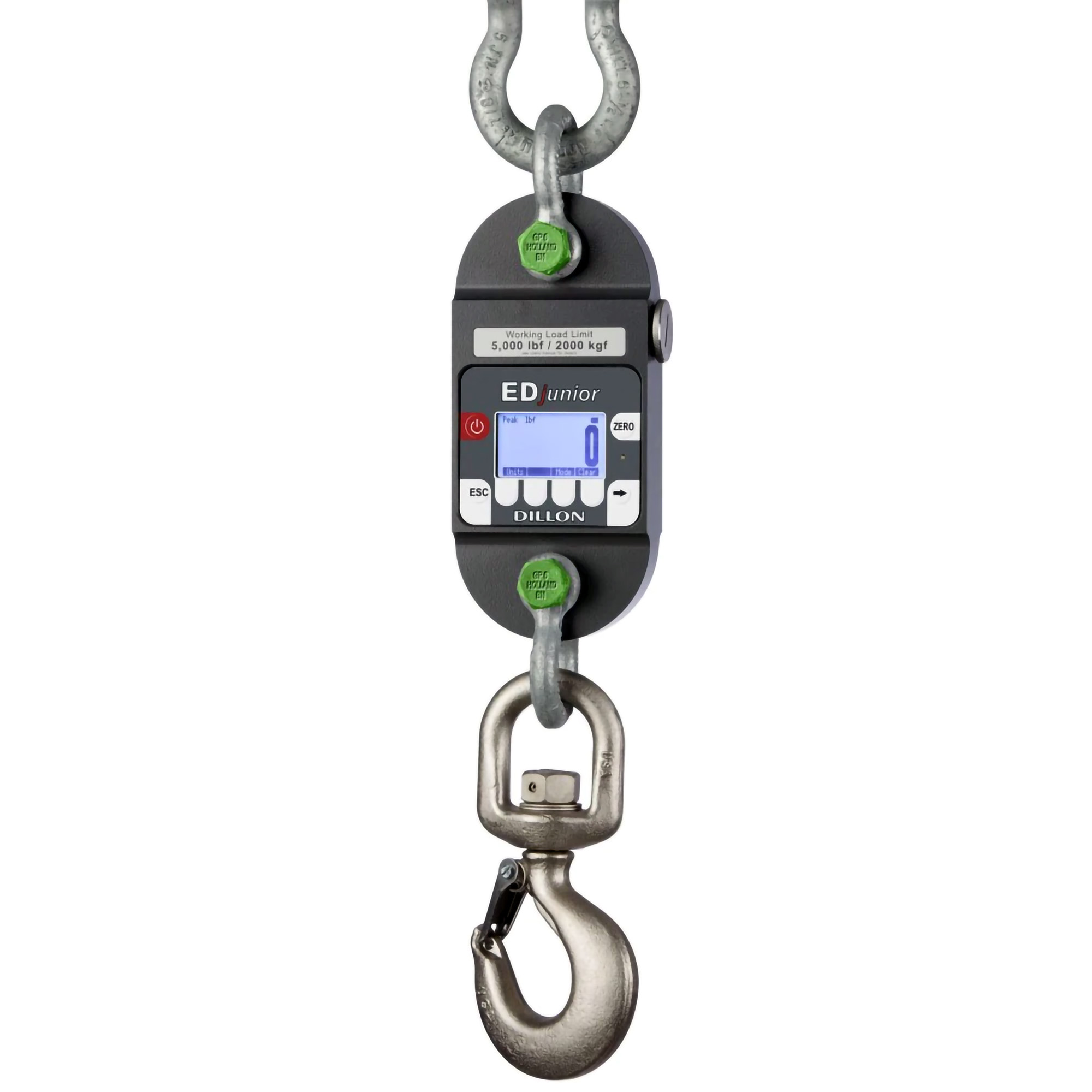

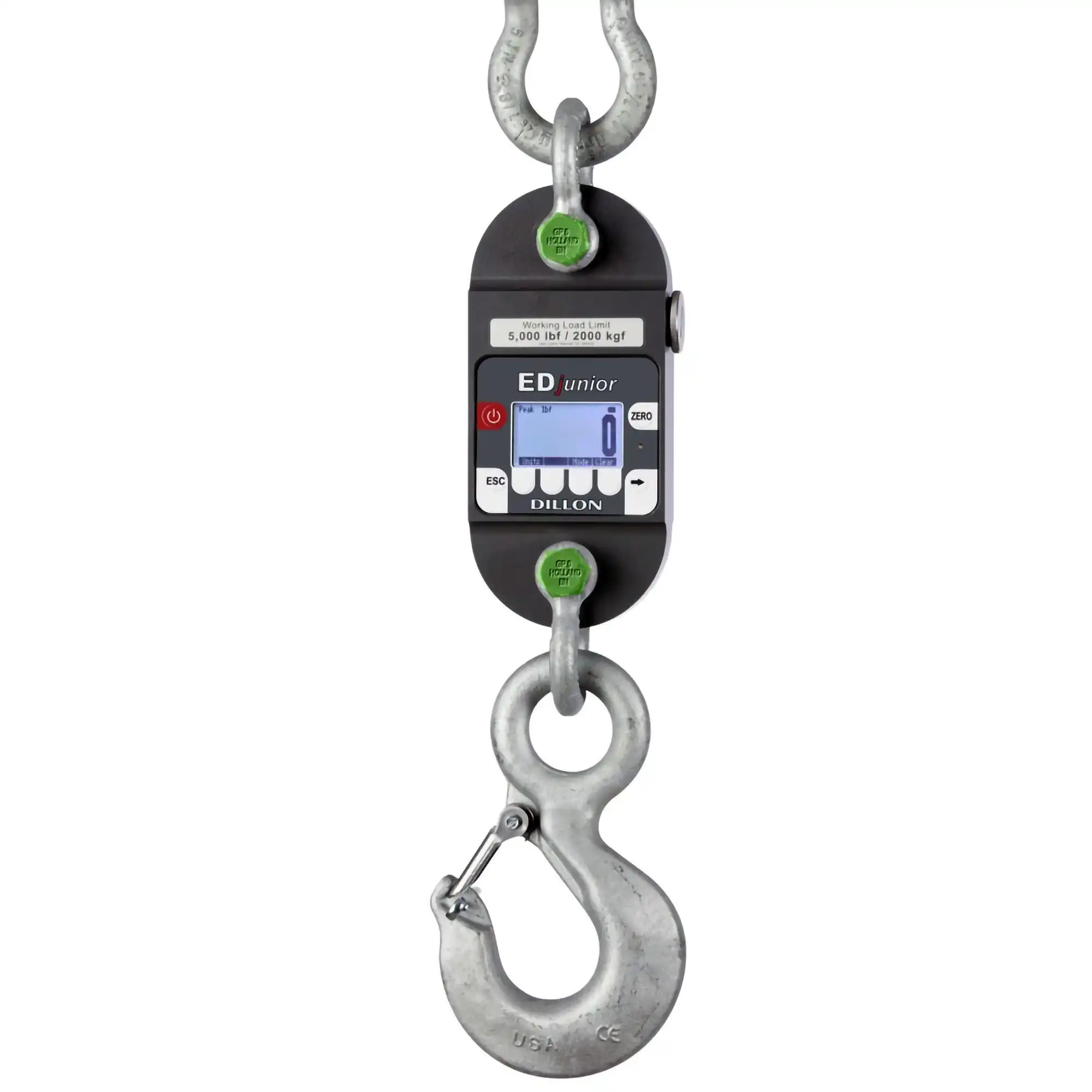

ED Junior Crane Scale

A crane scale is a dynamometer outfitted with equipment appropriate for suspended weighing, such as large openings in upper shackles, with hooks on the bottom and large dials for easy distant viewing.

Additional Information

More Information

The Dillon EDjunior Crane Scale is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere. With the EDjunior Crane Scale, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety.

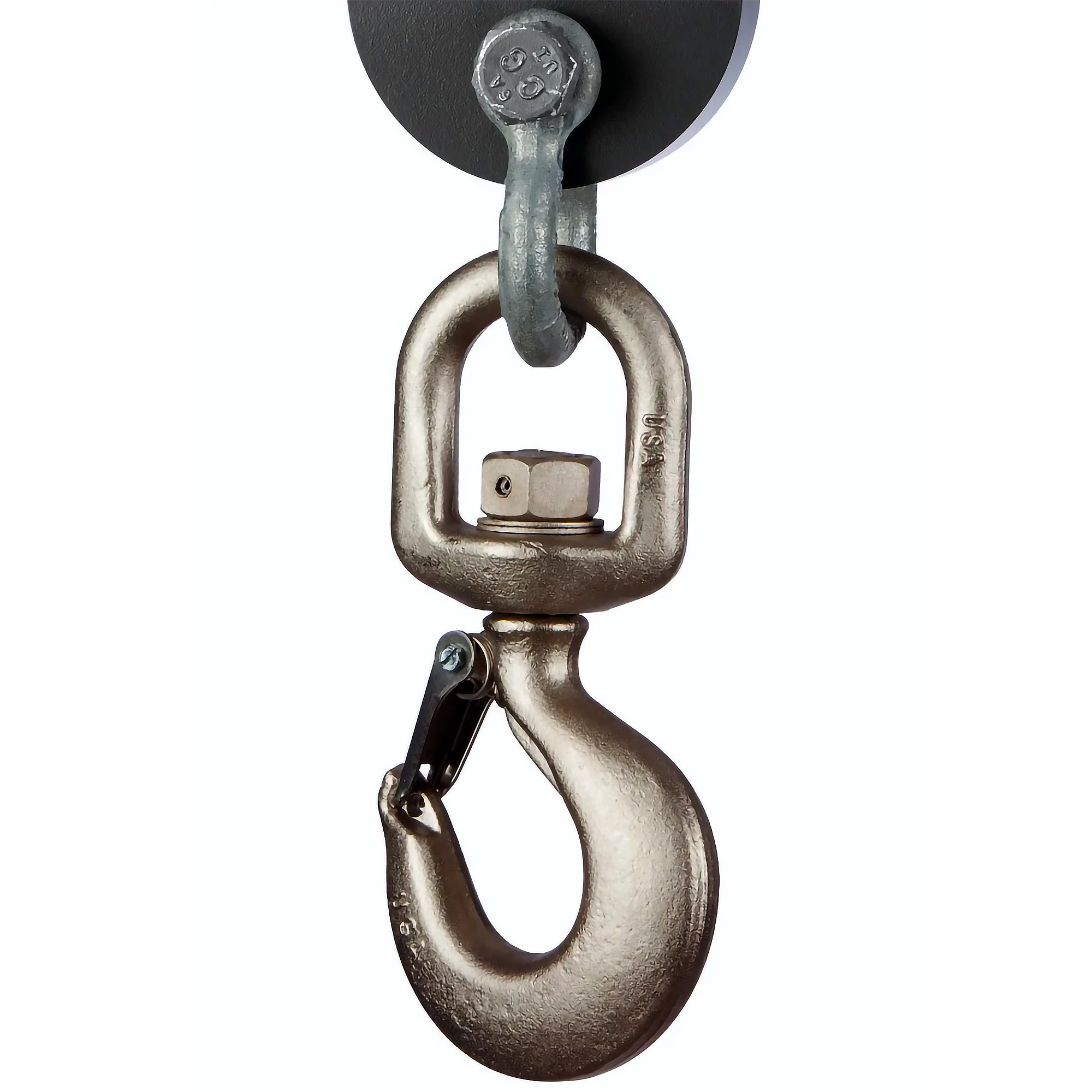

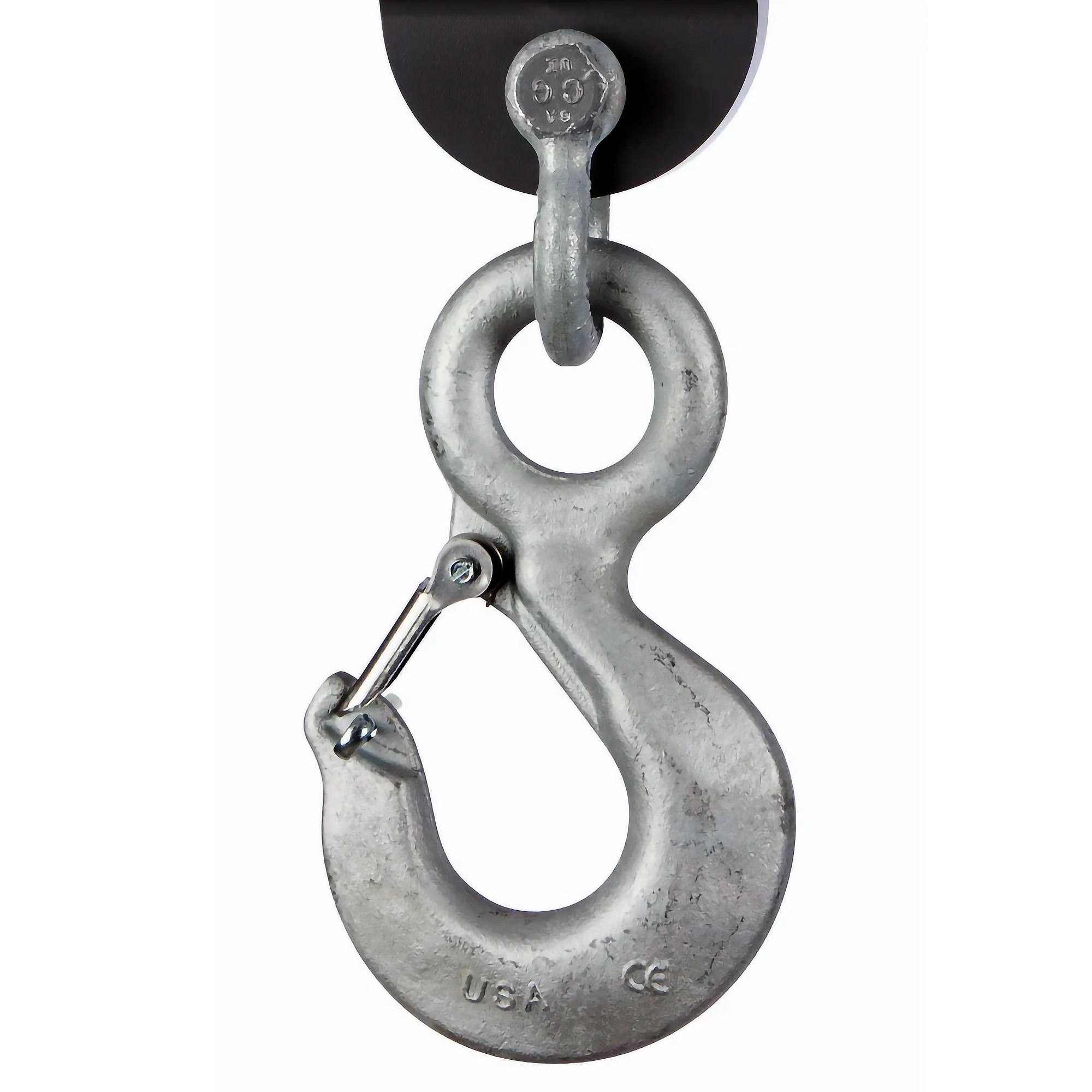

EDjunior Crane Scales are made up of two parts, an EDjunior Dynamometer and the associated crane scale hardware kit which includes the following: a swivel hook, oversized shackle assembly & a wooden shipping/storage crate.

  • Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use.
  • Accuracy: 0.2% of capacity.
  • Repeatability: 0.2% of capacity.
  • Body Construction Aircraft aluminium E4340 Alloy Steel
  • Display update rate: 2 times per second.
  • Safe overload: 200%
  • Display: 128 x 64 dot-graphic LCD display shows all digits 1.0” (26 mm) high
  • Battery life: 400 hours typical use with two C-cell alkaline batteries.
  • Included with instrument: Batteries, manual and calibration card.
  • Optional accessories: Shipping / storage crate.
