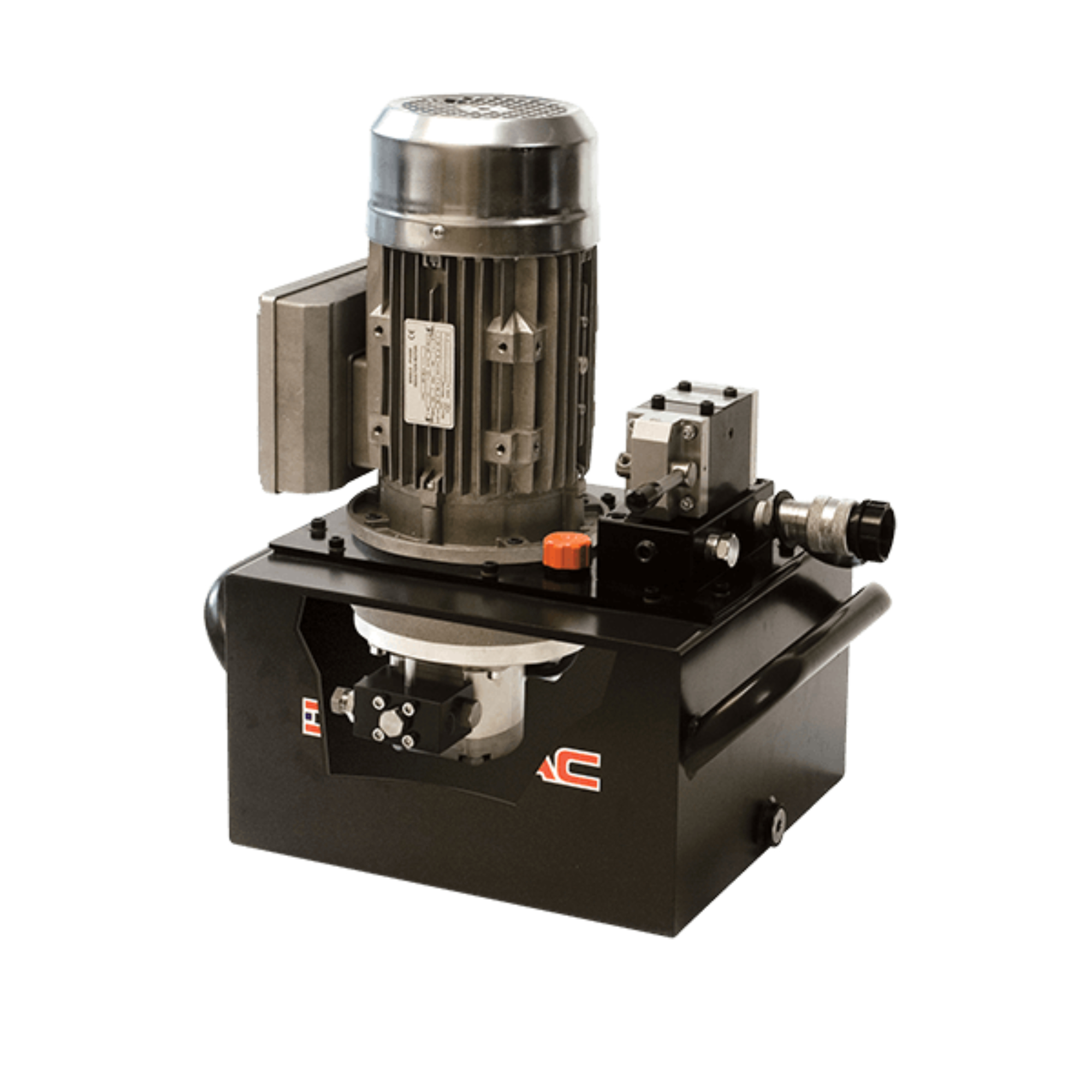

Durapac PES1524 Electric Hydraulic Power Unit
The PES1524 Electric Hydraulic Power Unit provides a flow rate of 9.5 Lpm at pressures of up to 65 bar, and 1.1 Lpm at pressures of up to 700 bar.
More Information
4-Way Solenoid Valve:
The power unit incorporates a solenoid valve with four pathways.
Safety Pressure:
The power unit is equipped with a safety pressure relief valve rated at 700 bar.
Optimal Power:
Powered by a 1.5 kW electric motor, the power unit operates at 240 Volts and 50 Hz, single-phase.
Remote Control Pendant:
A remote control pendant enables the activation of advance/hold/retract functions for double-acting cylinders and tools.
Suitable for Medium to Large Loads:
Designed for handling medium to large tonnage cylinders and systems.
Pressure Adjustability:
Includes an externally adjustable pressure relief valve for fine-tuning.
|
Model No.
|
1st Stage Flow Rate (Lpm)
|
2nd Stage Flow Rate (Lpm)
|
1st Stage Pressure Rating (bar)
|
2nd Stage Pressure Rating (bar)
|
Motor kW
|
Voltage (50 Hz)
|
Amps
|
Remote Pendant Function 4 mtr
|
Valve Type (3/8″-NPTF Ports)
|
Usable Oil Cap. (L)
|
Approx. Dry Weight (kg)
|
Approx. Dimensions (mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PES1524 | 9.5 | 1.1 | 65 | 700 | 1.5 | 240 | 8.3 | SOLENOID ADV/HOLD/ RETRACT | 4w/3p Solenoid | 20 | 58 | 300 W x 450 L x 605 H |
