Durapac HRP-Series Roll Frame

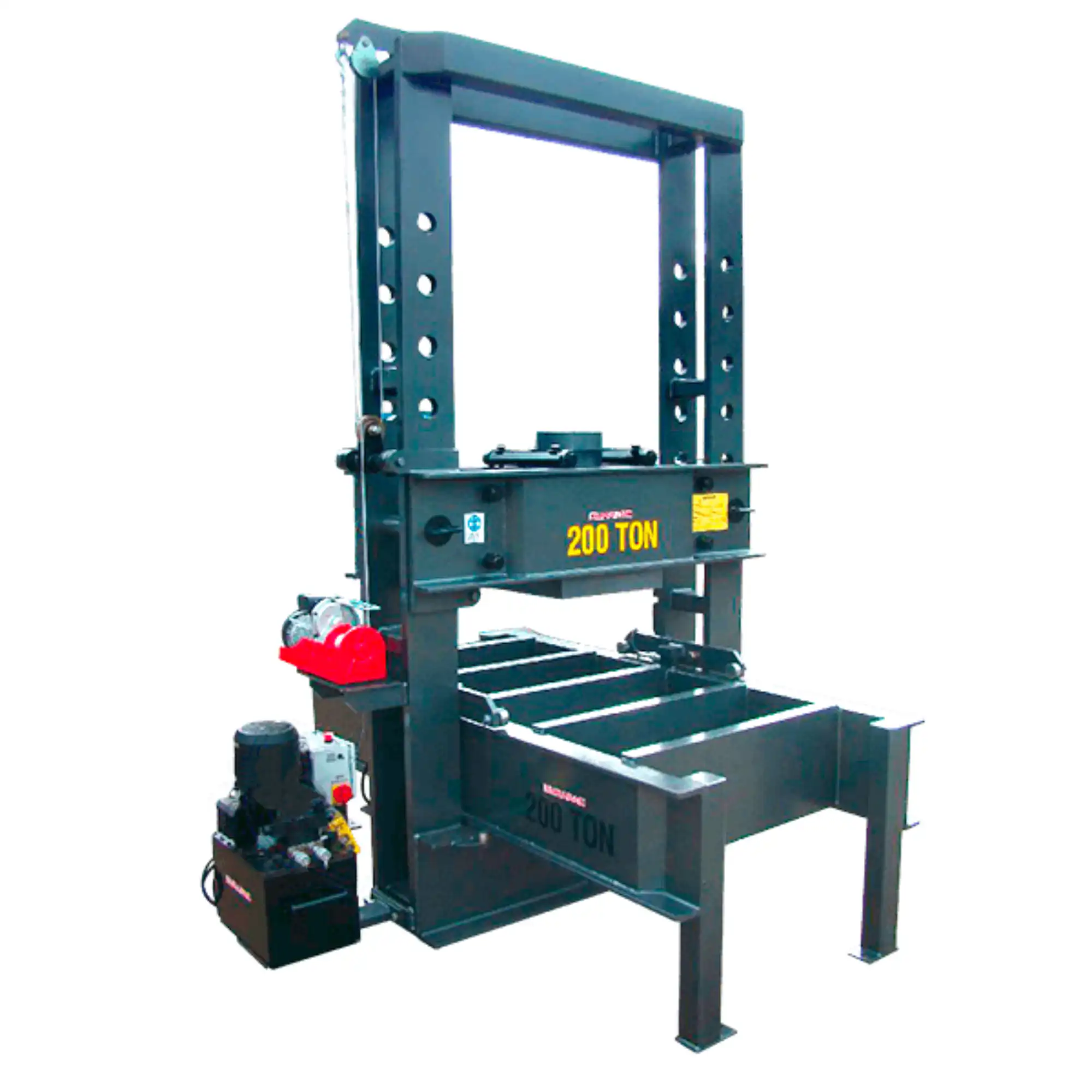

The design of the HRP-Series Roll Frame Press enables the rolling frame to move smoothly across the press bed, facilitating the effortless loading of large and bulky items.
More Information
Product Features
- Up to 250 Tonne Capacity
- Custom presses made to your requirements
- Can be fitted with high quality Durapac hydraulics: hand, air (pneumatic) or electric power options.
- Heavy duty construction, frame made locally from BHP Steel, accepts full load of press capacity
- Moveable work head allows full tonnage pressing capacity along entire length of the top cross bar
- Adjustable work bed for maximum flexibility
- Bed Adjustment by manual brake or electric winch options – Electric winch standard on 100T press & above
- Options of Spring Return or Double Acting Hydraulic Cylinders
- Heavy duty pressing “V” blocks
- Maximum daylight for larger jobs & easy loading
- Sturdy and Long-lasting: The frame undergoes welding to ensure utmost strength and durability.
- Rolling Frame Design: Facilitates the easy loading of sizable and cumbersome objects.
- Electric Winch System: Enables effortless adjustment of the bolster.
- Off-center Pressing Capability: Lateral movements are achievable with the rolling cylinder head.
- High-Quality Components: Utilizes top-notch hydraulic cylinder and two-speed pump for optimal efficiency.

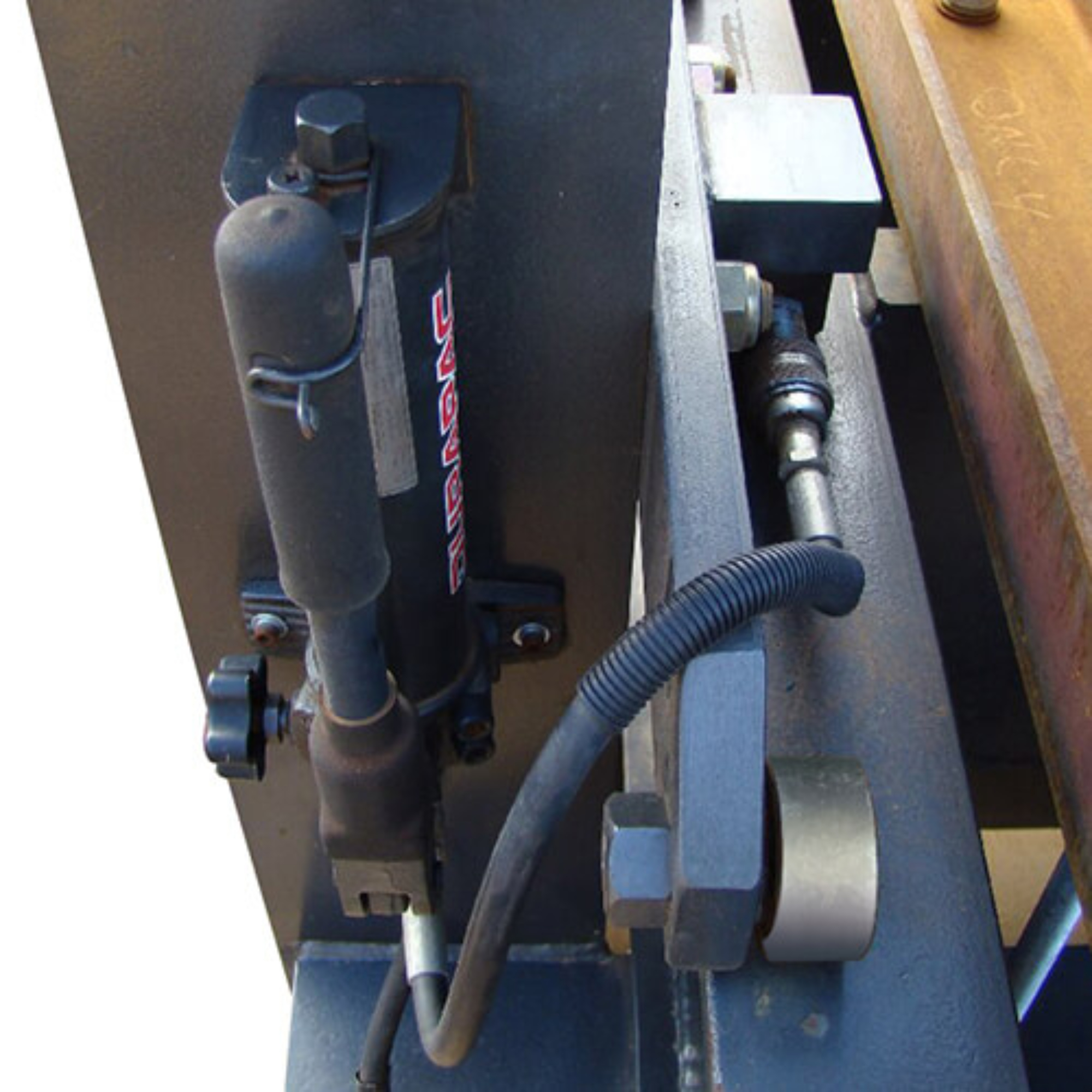

- Frame Lock Mechanism: The rolling frame securely locks in place via a hydraulic hand pump and cylinders.
| Model No. | Capacity (ton) | Capacity (kN) | Stroke (mm) | Power Unit Model | Cylinder Model |
|---|---|---|---|---|---|
| HRP-50 | 50 | 498 | 334 | PES3024R | RD-5013 |
| HRP-100 | 100 | 933 | 333 | PES3024R | RD-10013 |
| HRP-150 | 150 | 1,386 | 333 | PES3024R | RD-15013 |
| HRP-200 | 200 | 1,995 | 330 | PES3024R | RD-20013 |
