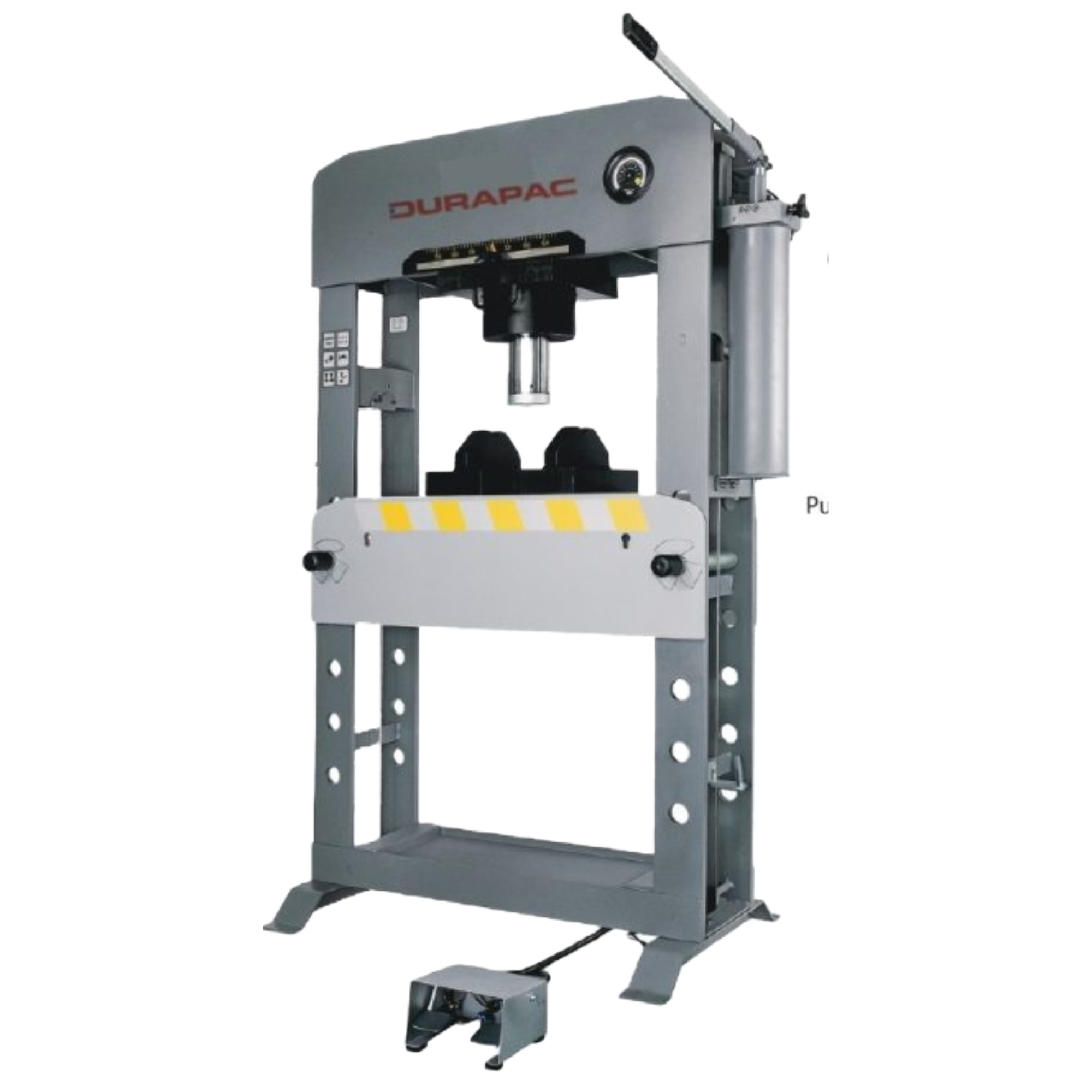

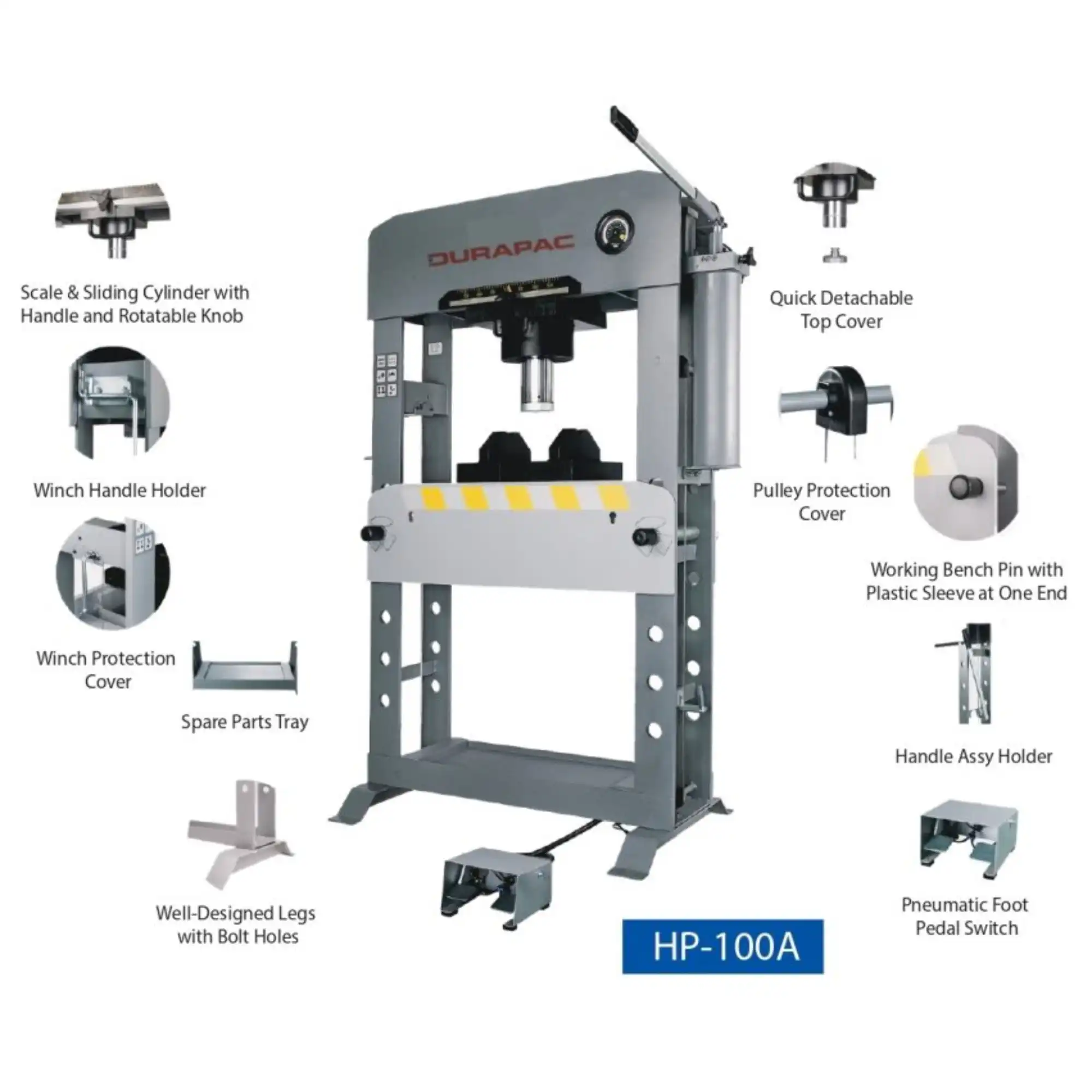

Durapac 100 Ton H-Frame Press HP-100A
The HP-Series Air Hydraulic Driven H-Frame Presses excel at handling workshop pressing tasks, including the installation or removal of bearings, gears, or other components requiring press fits.
More Information
Air/Hydraulic & Manual Pump
Both an air/hydraulic pump and a manual pump are integrated into the press.
Rolling Head
The design featuring a rolling head enables the cylinder to move sideways and lock securely in place.
Force Gauge
The equipment comes with a force gauge measuring in metric tons and bars.
V-Blocks
V-blocks are included as standard accessories.
Safety Screen
For added safety, a protective screen is included to guard against impacts.
Foot Switch
Utilize the foot switch to activate the air/hydraulic pump.
|
Model Number
|
Capacity (ton)
|
Hydraulic Stroke (mm)
|
Screw Adjust (mm)
|
Pump Type
|
Air Pressure Range (bar)
|
Net Weight (kg)
|
|---|---|---|---|---|---|---|
| HP-100A | 100 | 300 | N/A | Air/Hyd. and Manual | 9 – 12 | 719 |
