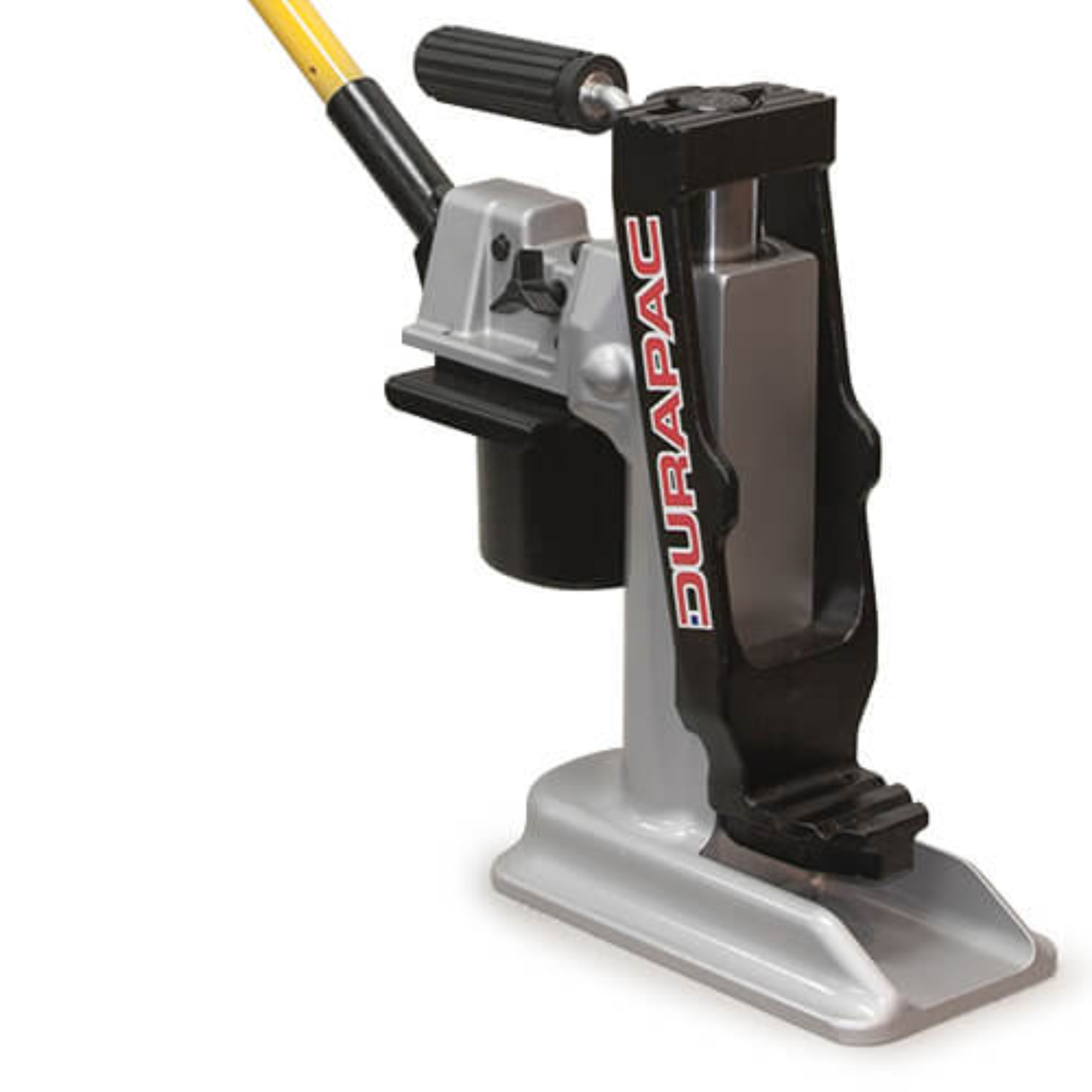

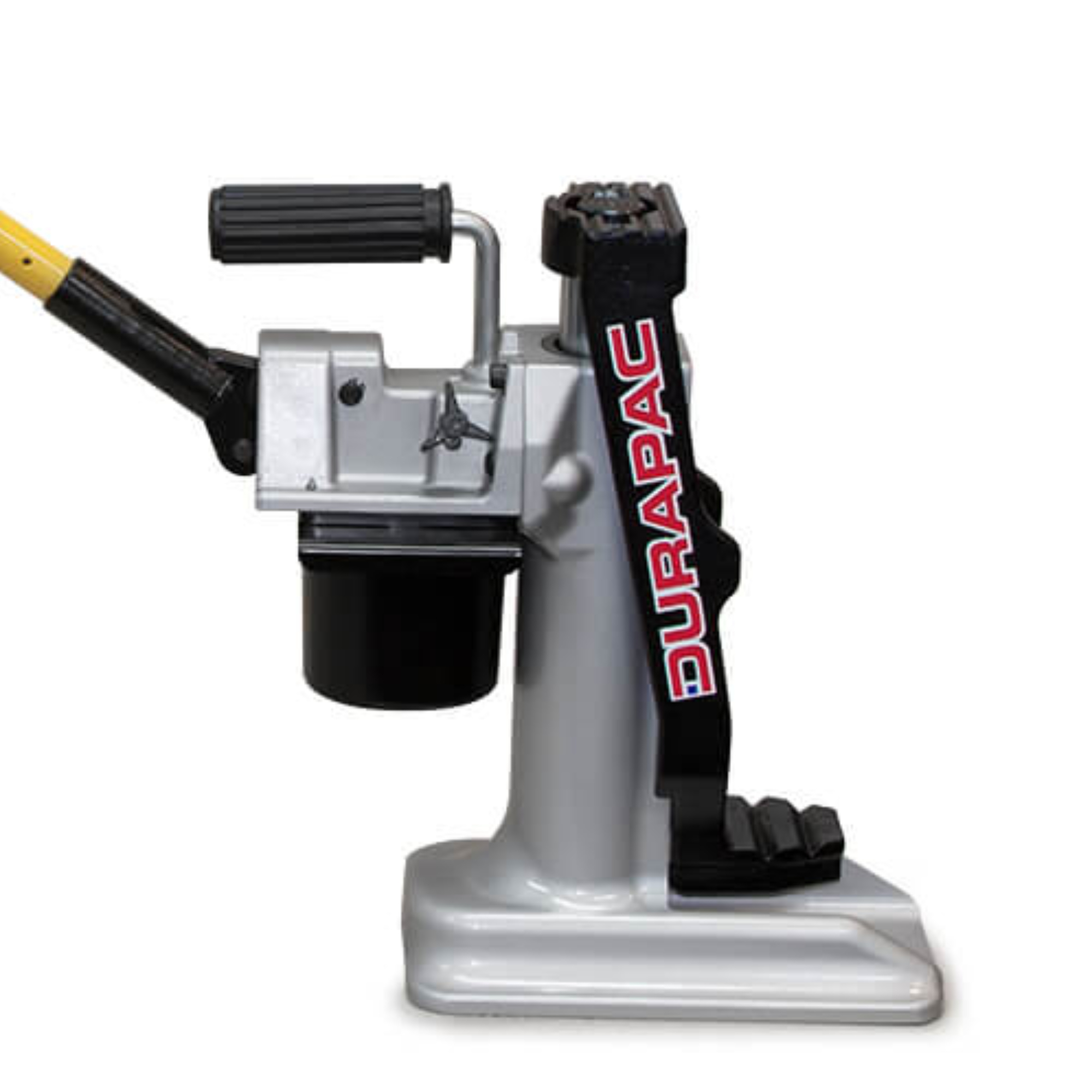

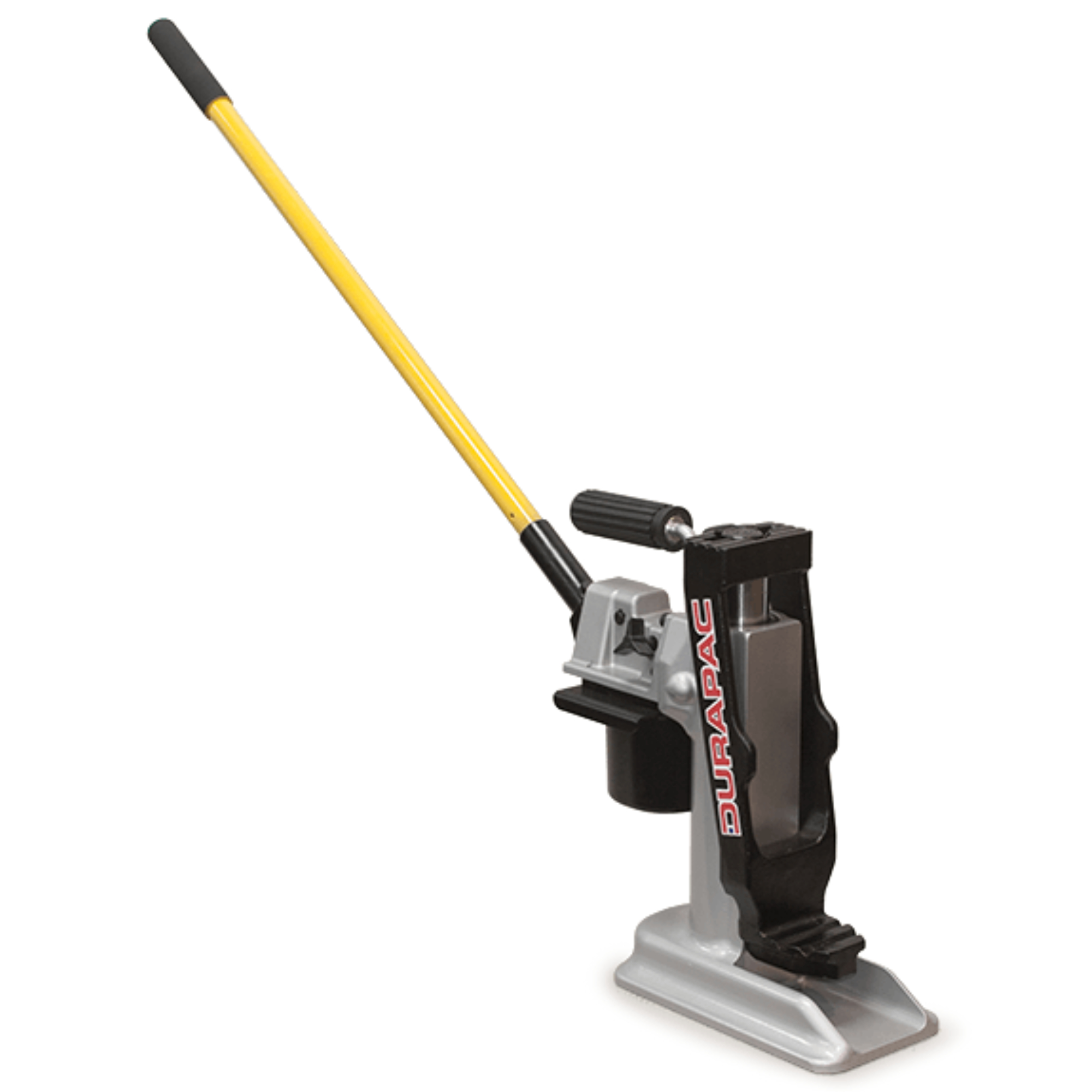

Durapac DRJ-10 Hydraulic Track Jack
The DRJ-10 Rail Jack is excellently tailored for aligning, gauging, and lifting rail or sleepers. Crafted with a forged aluminum upright base, this jack, with a capacity of 10 tons*, is engineered to be sturdy, lightweight, and minimize the chances of operator injury.
More Information
- Internal Spring Return: The spring return mechanism allows a jack with no load to be returned to the retracted position.
- Safety Pressure Relief Valve: The jack is fitted with an internal safety pressure relief valve to protect against overloading.
- Internal Oil Reservoir Bladder: The bladder system inside the aluminium protected reservoir allows the jack to be used in both the horizontal and vertical positions making it exceptionally versatile.
- Large Aluminium Base / Minimum Height: One piece of forged aluminium (7075T) base provides great support in soft ballast. The minimum base height of 50mm allows for easy positioning under the base of the rail.
- Removable Extension Handle: The 80cm handle is removable. The extension handle can withstand a maximum handle effort of 36kg.

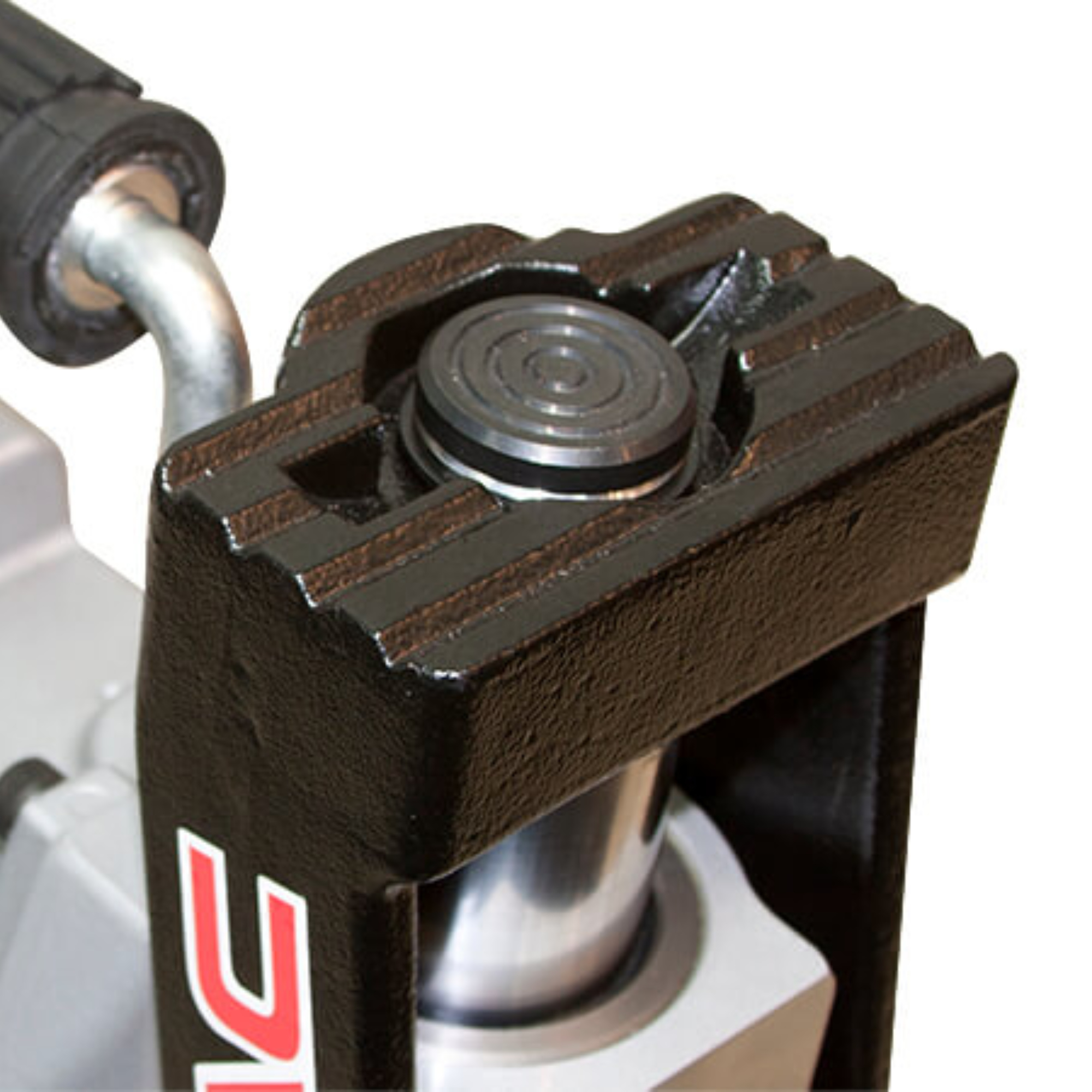

- Indexed Toe: The indexed toe minimises swivel and allows for a safe, stable platform.
|
Model No.
|
Jack Capacity ton*
|
Jack Capacity kN
|
Collapsed Height (mm)
|
Stroke (mm)
|
Extended Height (mm)
|
Travel/Pump Stroke (mm)
|
Max. Handle Effort (kg)
|
L x W x H Base Dimensions (mm)
|
L x W x H Toe Dimensions (mm)
|
Weight without Handle (kg)
|
|---|---|---|---|---|---|---|---|---|---|---|
| DRJ-10 | 10 | 83.3 | 373 | 225 | 598 | 4.5 | 36 | 280 x 152 x 50 | 66 x 79 x 30 | 20.2 |
