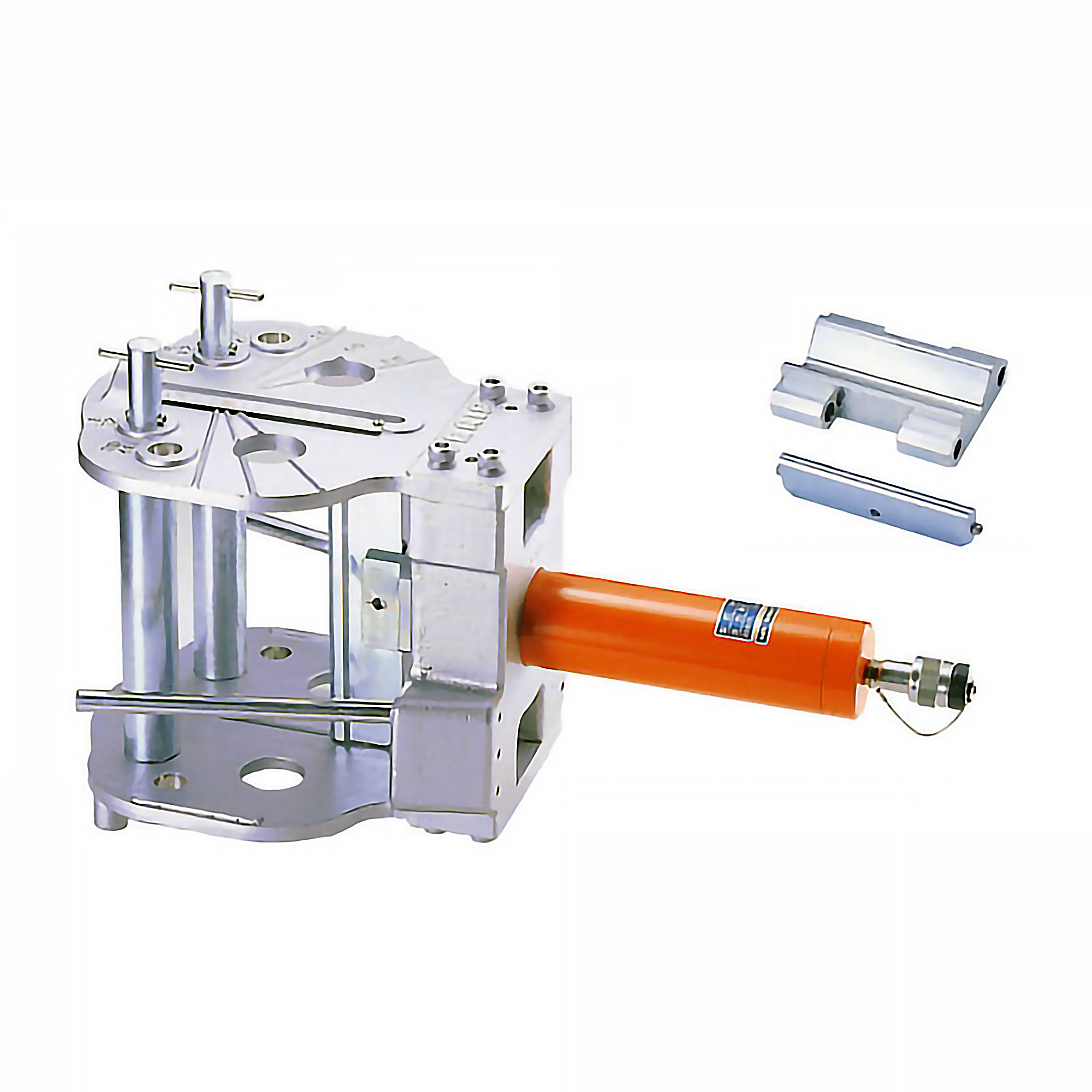

Daia B-200 Busbar Bender
The Daia B-200 Hydraulic Busbar Bender is designed to effortlessly bend copper and aluminium busbar up to a 90Ëš angle. It also has an optional bending block and former for bending repeat 90Ëš.
Made by Daia in Japan
Additional Information
More Information

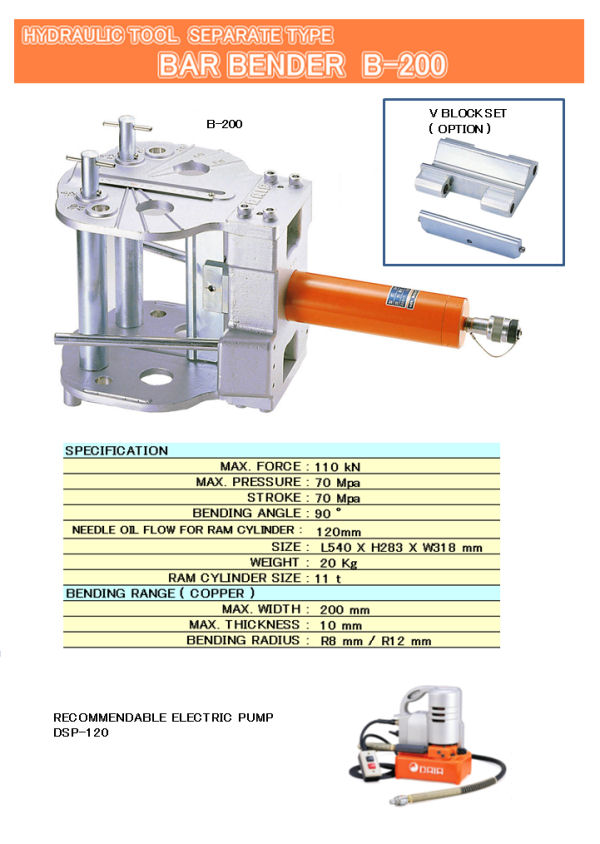

Specifications:
- Working Pressure – 700Bar
- Output (tonnes) – 10
- Net Weight (kg) – 20
- Bus Bar Capacity – 200 mm x 10mm Copper or 200mm x 16mm Aluminium
- Former Bending Radius – 8mm & 12mm (Copper) and 30mm & 48mm (Aluminium)
