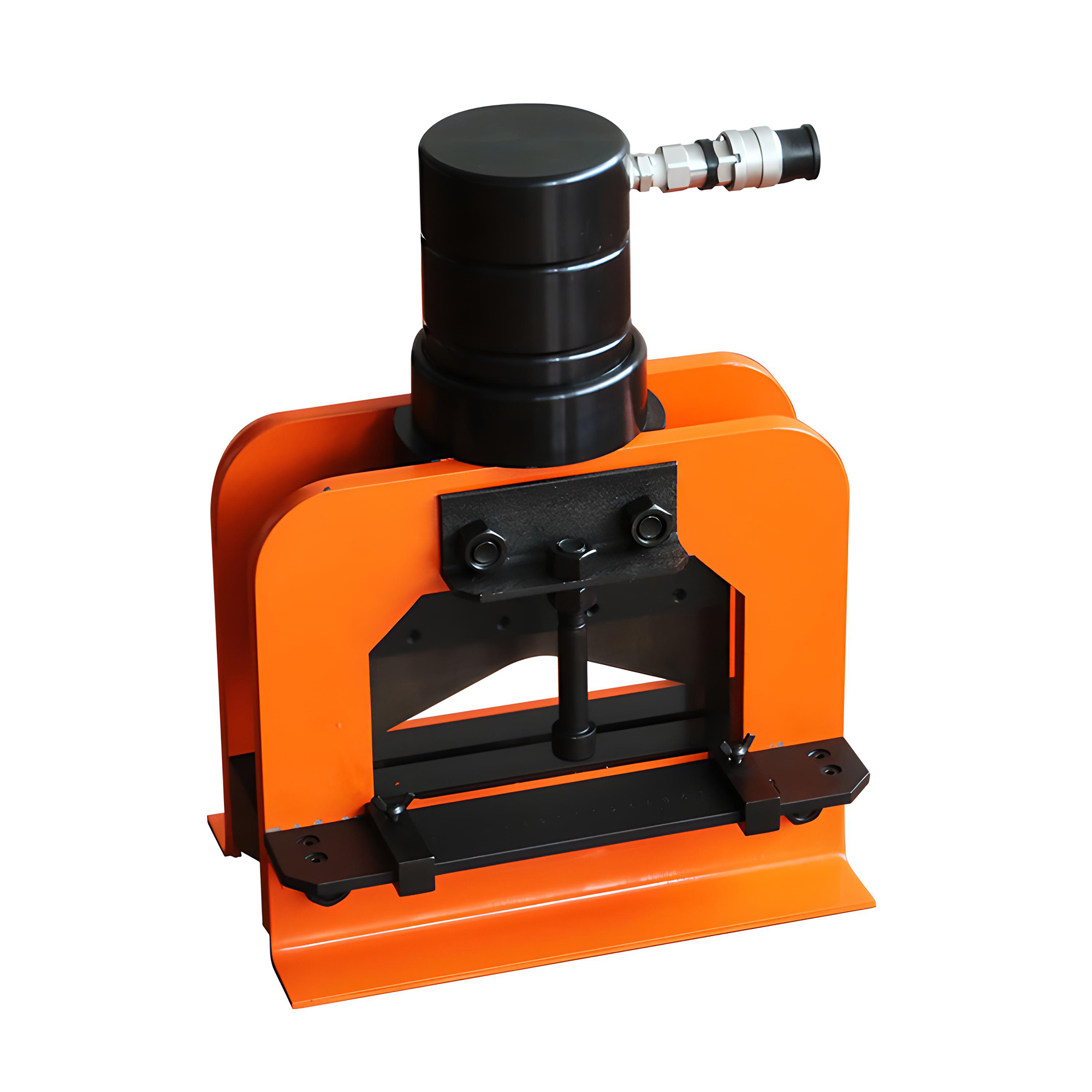

BC-200/16 hydraulic busbar cutter

Model BC-200/16
Output Force 40T
Max Cutting Thickness 16mm
Max Cutting Width 200mm
Rated Pressure 700bar
Weight 46.5Kg

Category: Brand:

More Information

• Cut Cu and Al busbar
• Quick cut with smooth cut surface, chipping, cut waste easy to recycle
• V-type blade ensure cut surface not depressed, efficient contact area of busbar
• Graduated plate on machine makes the center adjustment easy, cutting synchronously and keeping blade away from damage
• Portable for mobile operation, also suitable for workshop production work
• Equipped with quick coupler for easy disassembly
• Powered by single acting hydraulic pump (sold separately)
