Attachable Air Drive
Pneumatic Drive for Controlled Heavy Load Movement

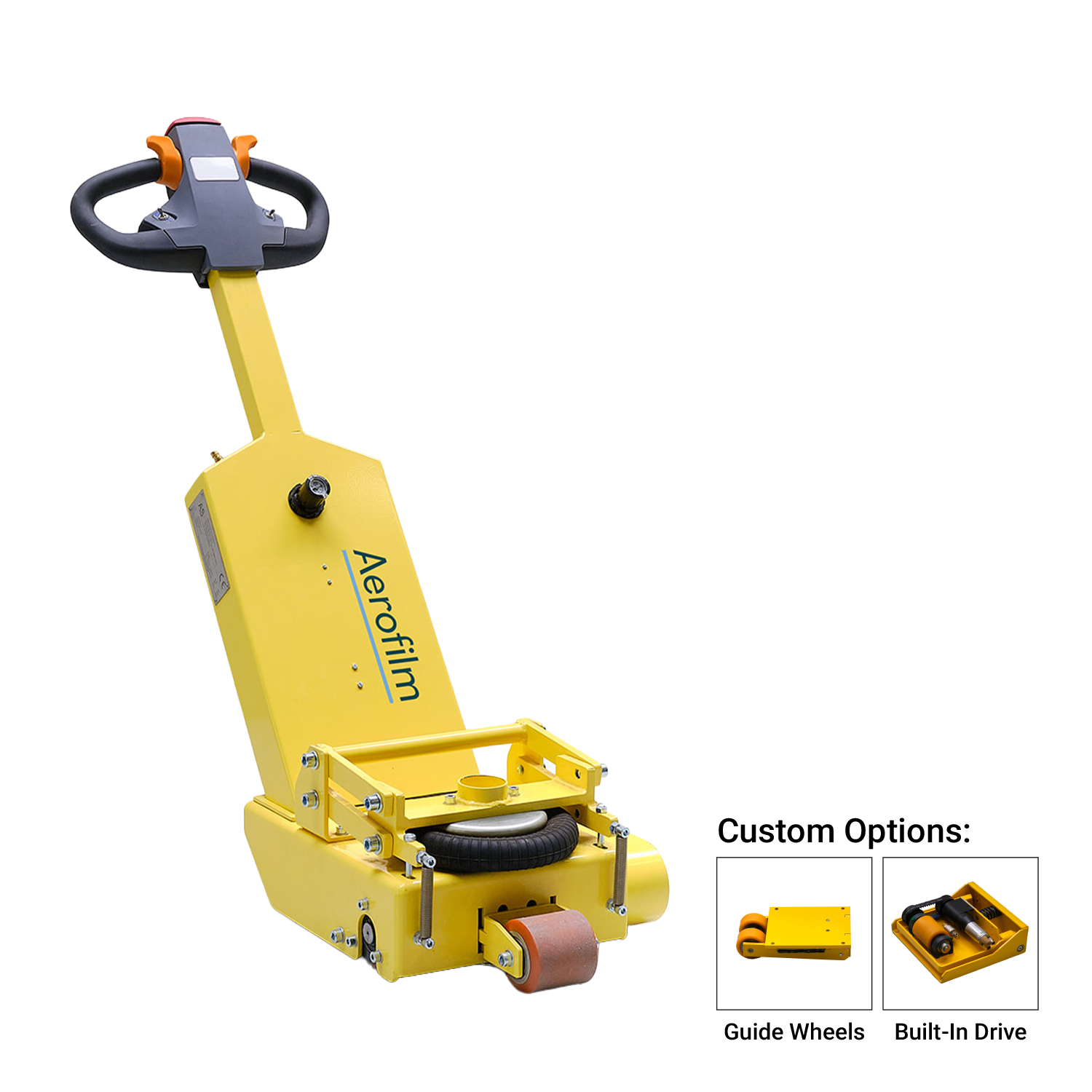

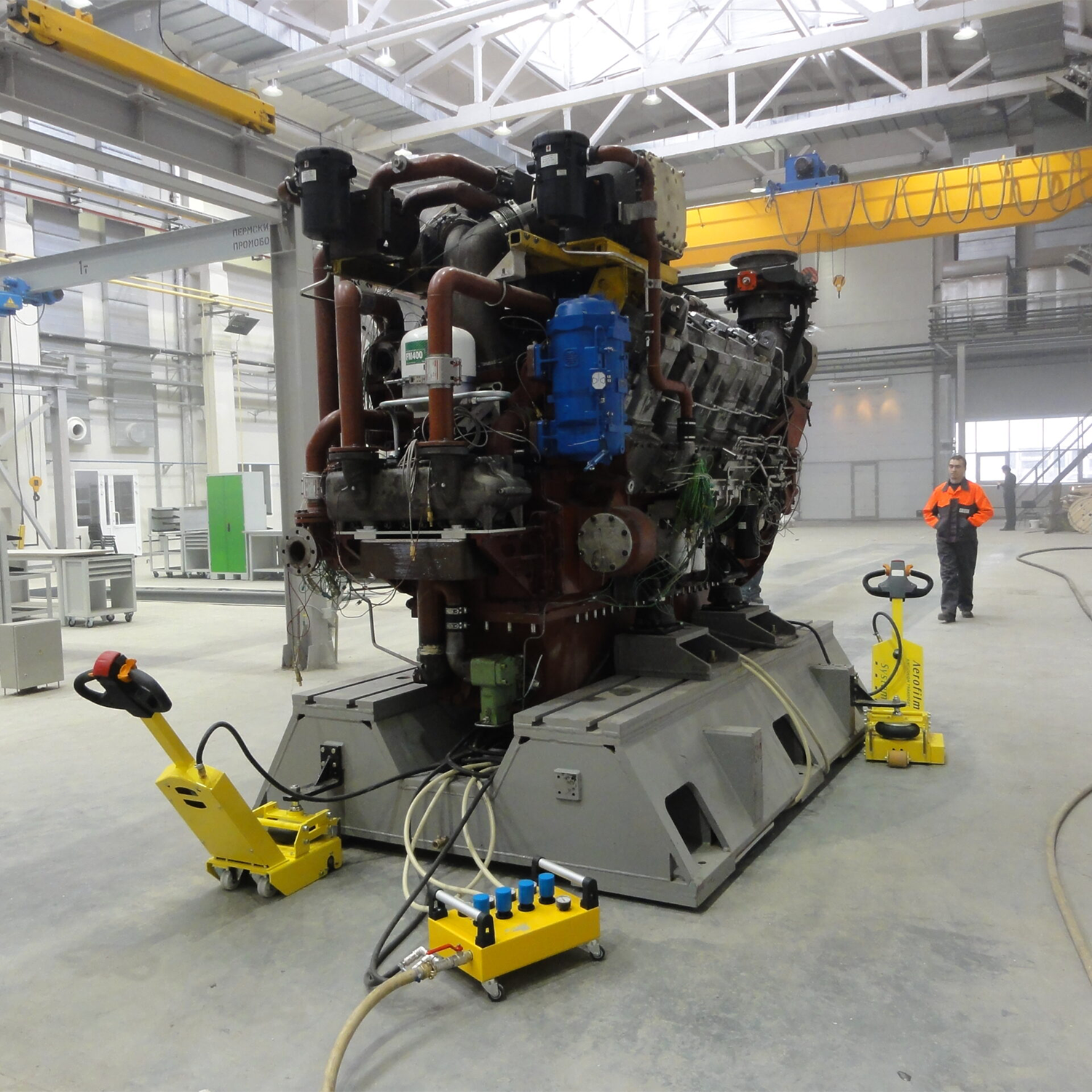

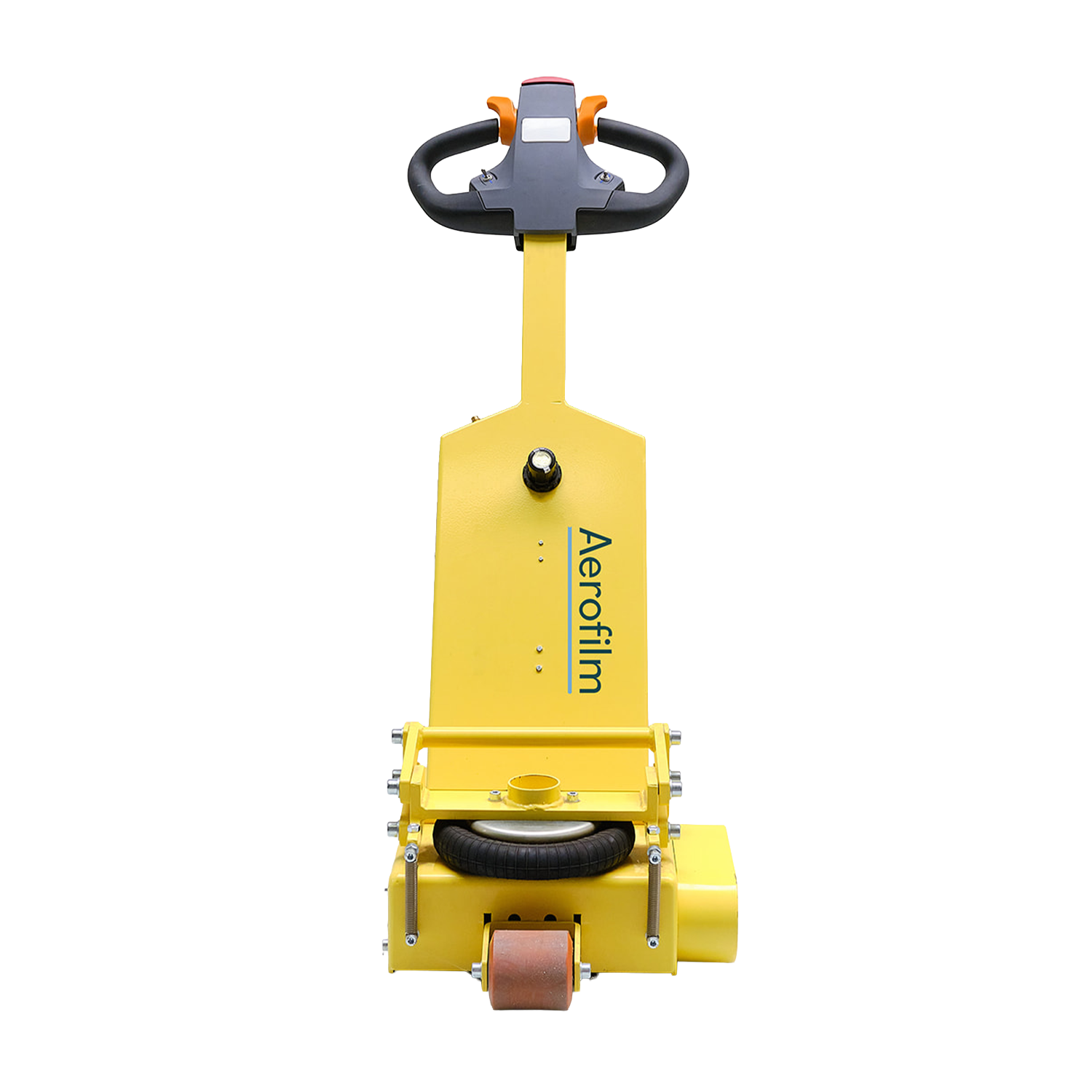

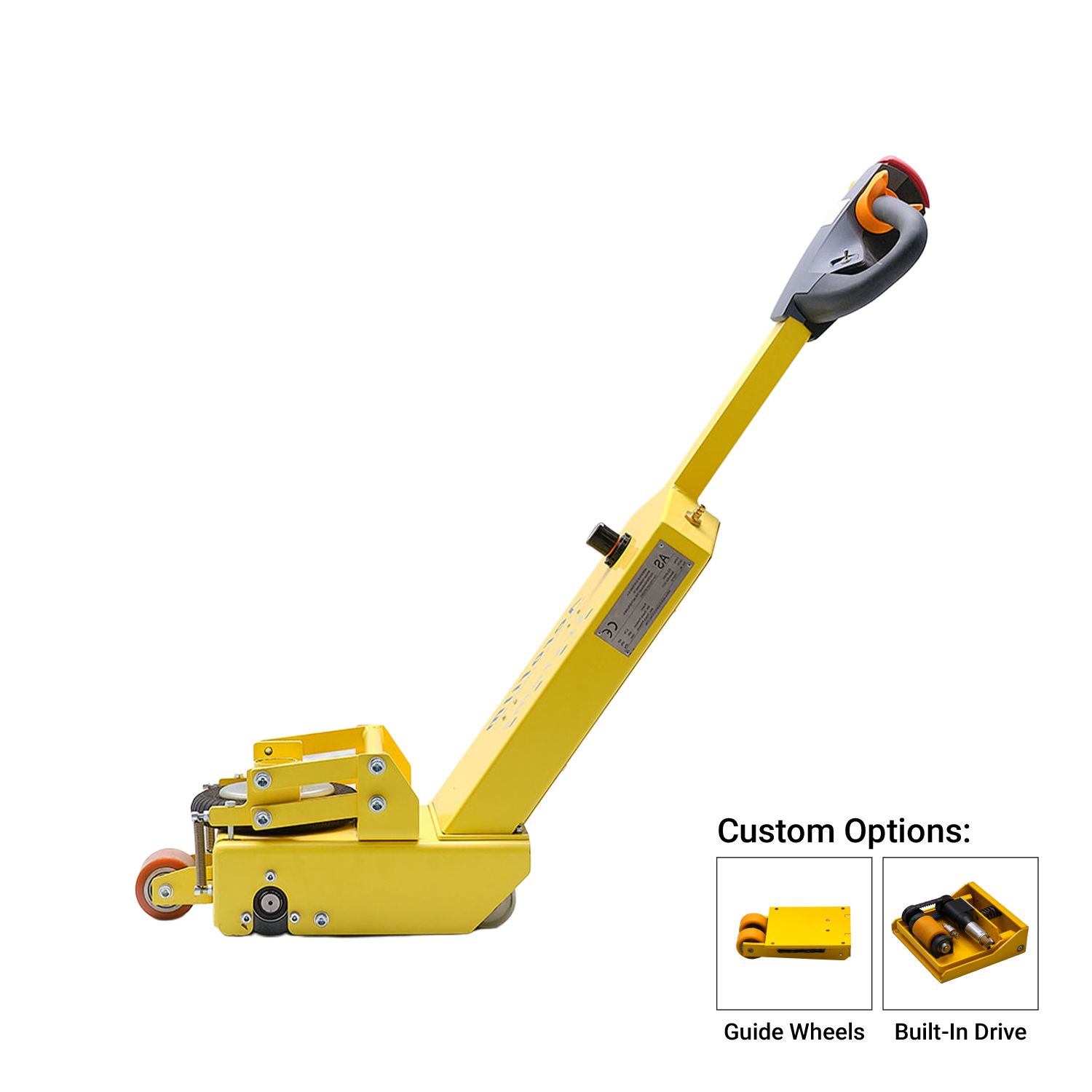

The Attachable Air Drive is a pneumatic drive designed to provide safe, controlled movement for heavy loads supported by air caster systems. Powered by the same compressed air supply as the air casters, it couples directly to the machine or load and provides greater control over steering and movement, making it particularly valuable for loads over 20,000 kg.
Available in 15-ton, 70-ton and 150-ton capacities, the drives can be linked together to double the available capacity. Designed for demanding load-handling applications, the Attachable Air Drive provides a practical solution for improving control, safety and precision when moving heavy equipment and machinery.
Capacity
Custom Options
More Information
Key Features
Attachable Air Drive

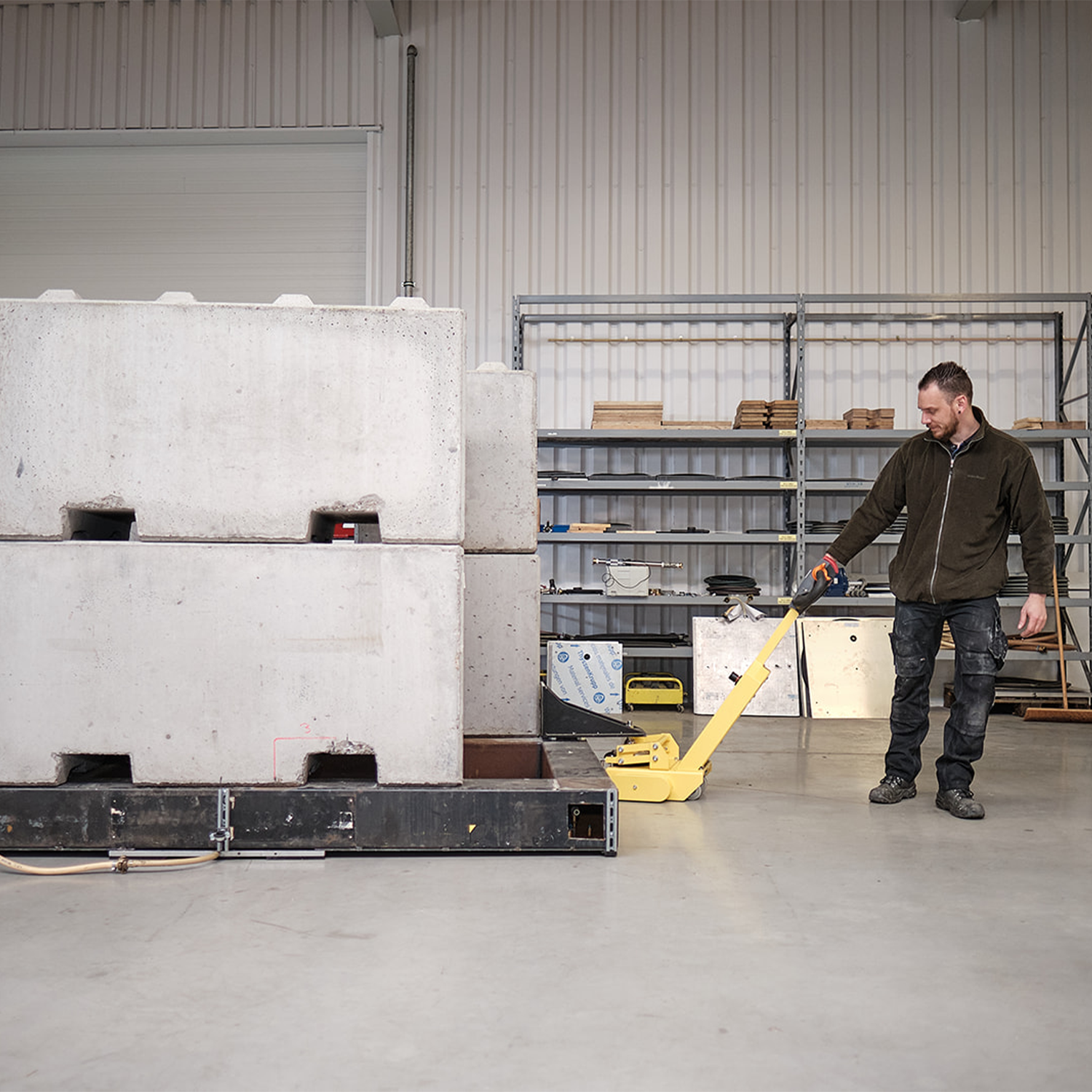

A pneumatic drive that couples to your load for safe, controlled moves on air casters. It runs on the same compressed air supply, and using two drives together doubles the capacity.
- Three sizes: loads up to 15 t, 70 t, or 150 t
- Couples directly to the machine or load
- Recommended for loads over 20,000 kg

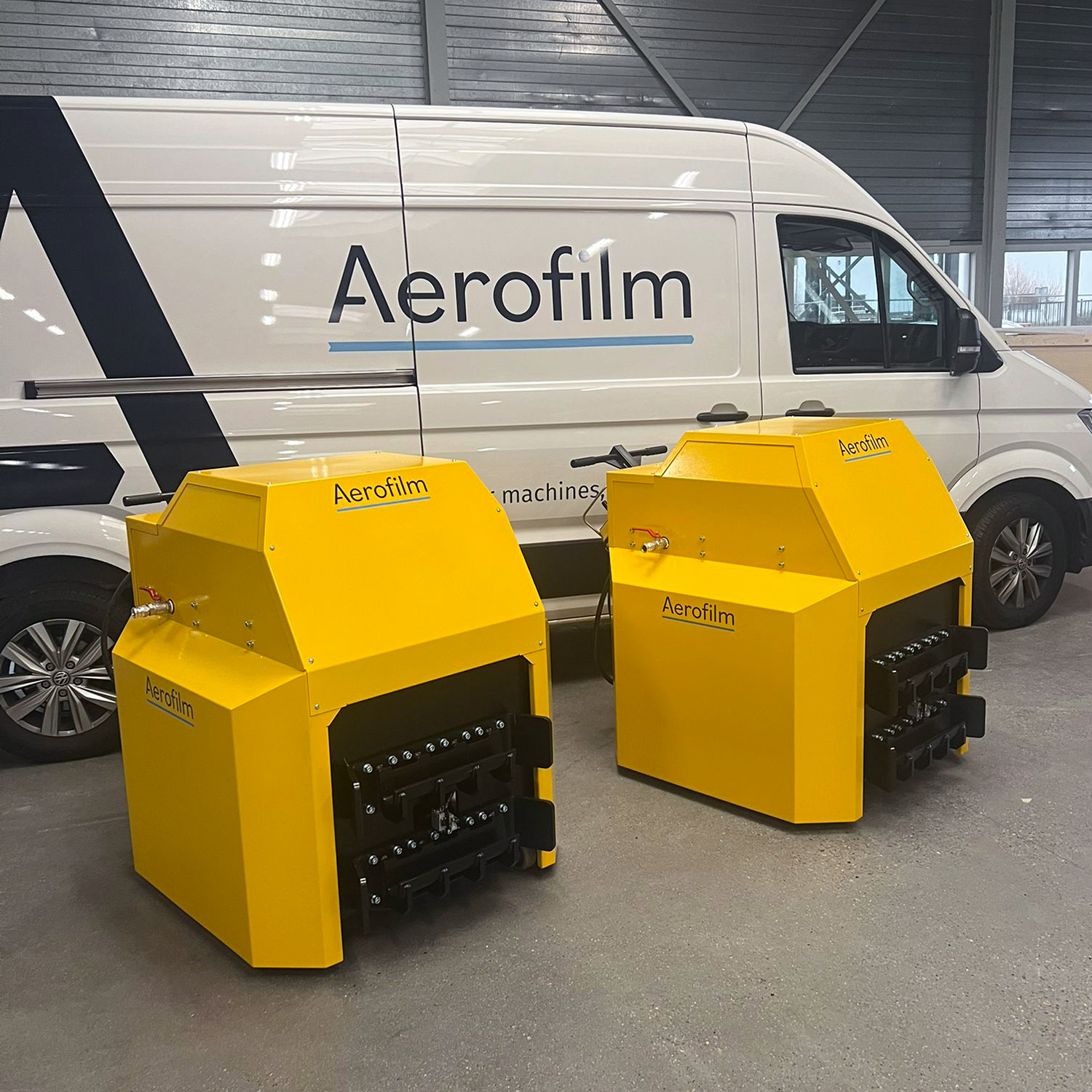

Built-in Air Drive
A lower-cost drive built into a fixed installation, ideal for loads that always move along the same route.
- Fixed to a set location
- More cost-effective than attachable drives
Guide Wheel
A stabilising guide wheel that prevents a load from drifting, allowing a single drive to be used instead of a second one.
- Prevents drifting and unexpected movement
- Adds stability and control
