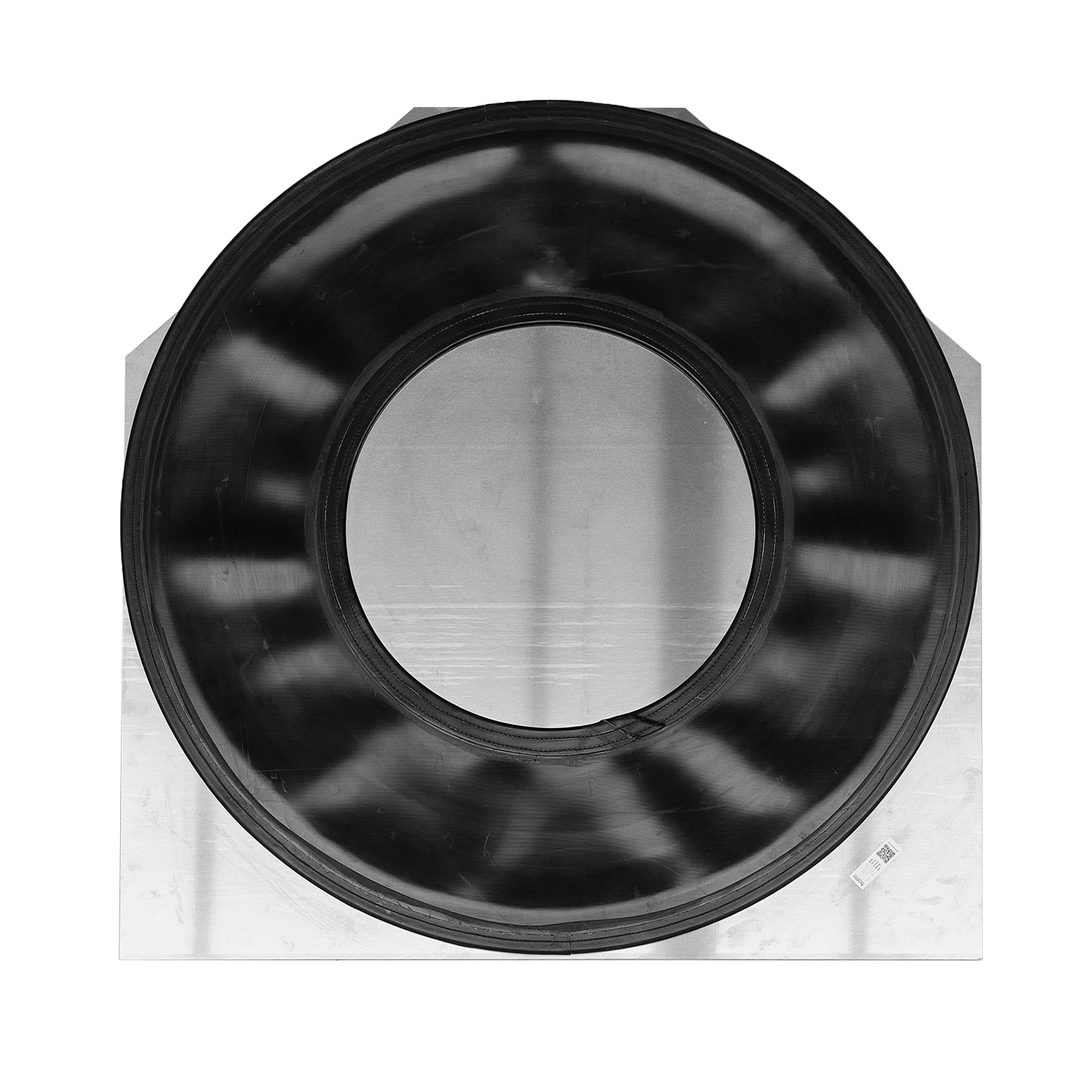

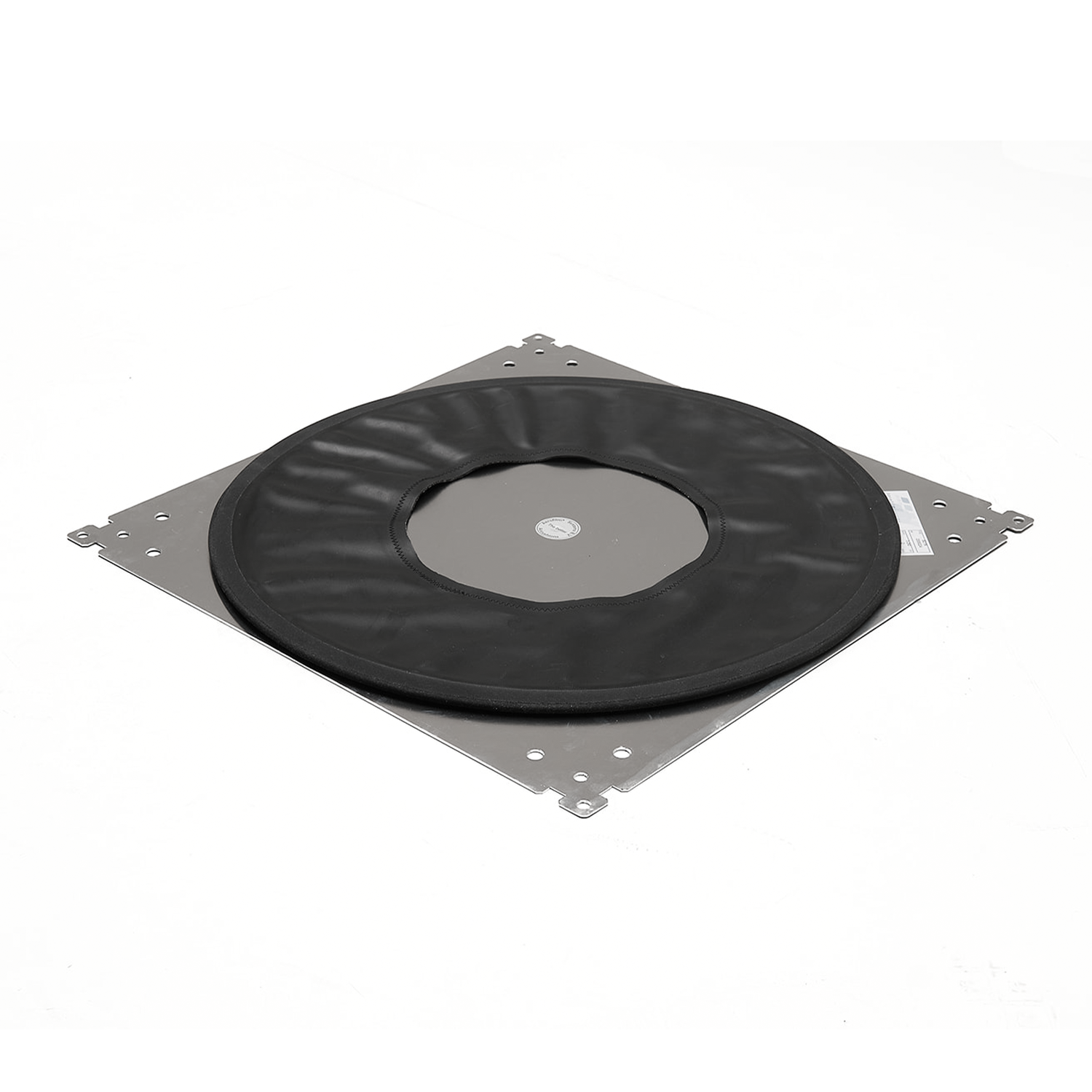

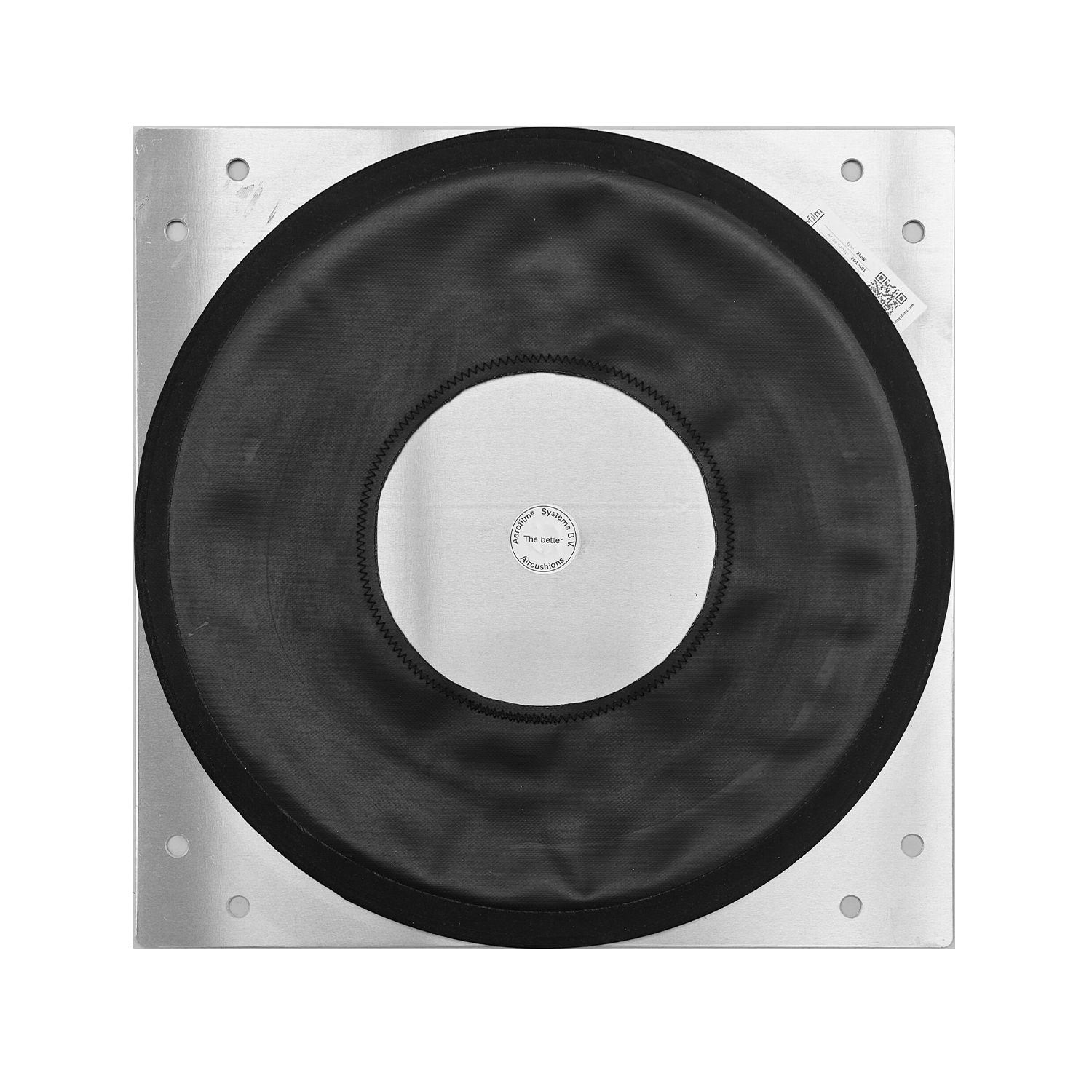

Neoprene Air Caster
Heavy-Duty Air Caster for Moving Large Loads
The Neoprene Air Caster is a robust heavy-load moving solution designed for safely and efficiently transporting machines, transformers, ships, and other oversized loads across industrial environments.
Featuring a reinforced and flexible neoprene membrane, the air caster operates at higher pressures to provide increased lifting capacity, while its durable construction delivers reliable performance in demanding conditions. Available in a range of sizes up to 1,500 mm (60 inches), it can handle loads from 500 to 80,000 kg.
Built for heavy-duty material handling, the Neoprene Air Caster combines high load capacity, increased lift, and high-temperature resistance, making it an ideal solution for industrial relocation, transformer manufacturing, machinery installation, and other applications where large loads need to be moved with precision and minimal effort.
Variations
More Information
Key features:
• Reinforced, flexible neoprene membrane for tough conditions
• Handles higher pressures, so more capacity for the same size
• Higher lift than a polyurethane caster of the same diameter
• Copes with higher temperatures
• Options: extra wear layers and coatings, stainless steel plates
| Specification | Details |
|---|---|
| Capacity | 500 to 80,000 kg / 1,100 to 175,000 lbs |
| Maximum Working Pressure | 5.4 barg / 78 psi |
| Dimensions | 200 mm to 1,500 mm / 8 inch to 60 inch |
