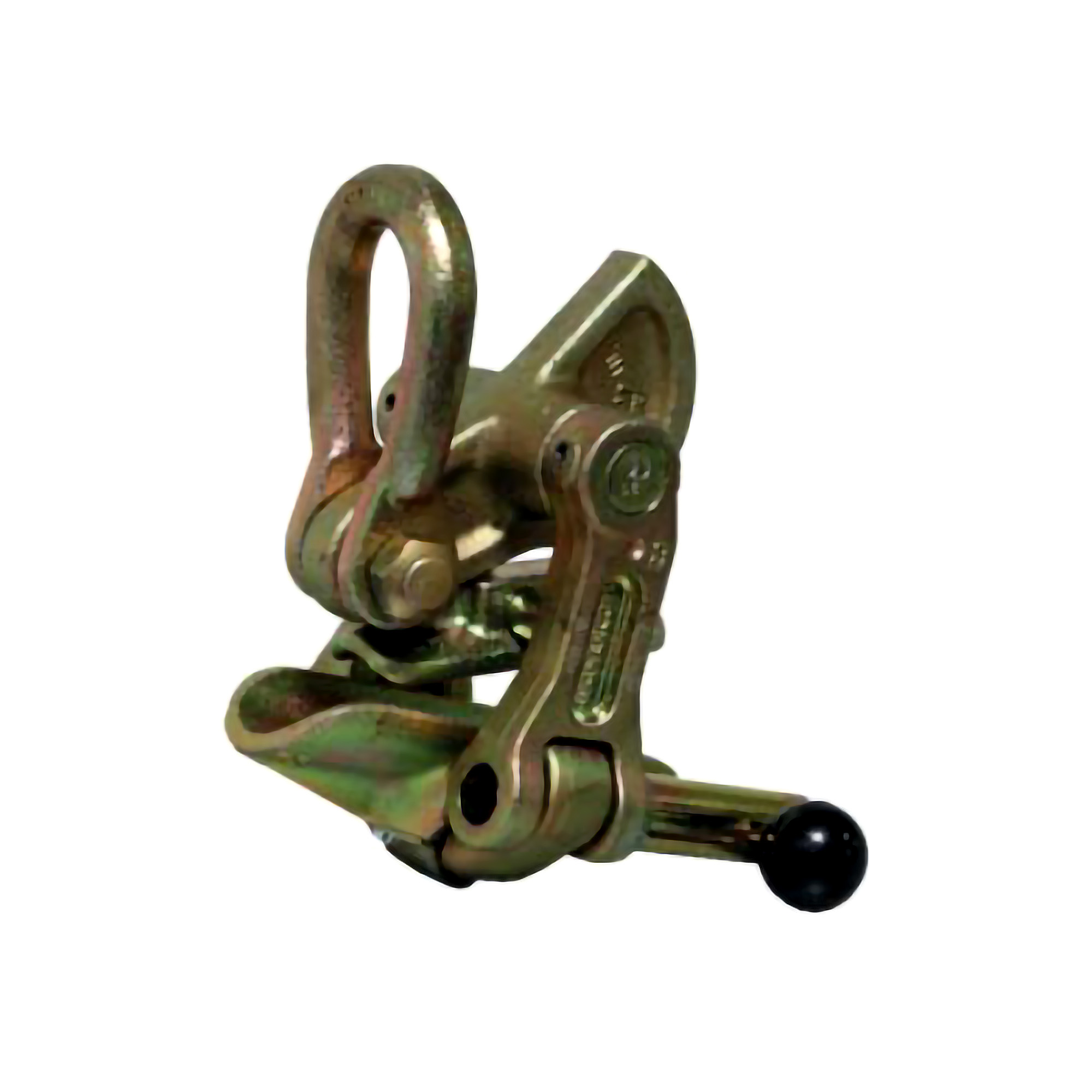

400/08 Self Gripping Clamps For Lifting Conductor in Suspension

Self-gripping clamps with interchangeable liners
suitable for lifting conductors with an overall
diameter ranging from 7 to 38 mm.
Made of hot forged, heat treated, and cadmium
plated high tensile alloy steel.
– Maximum working load 1960 daN
– Maximum safety load 3920 daN
– Maximum breaking load 9800 daN
– Weight 5.5 Kg.
