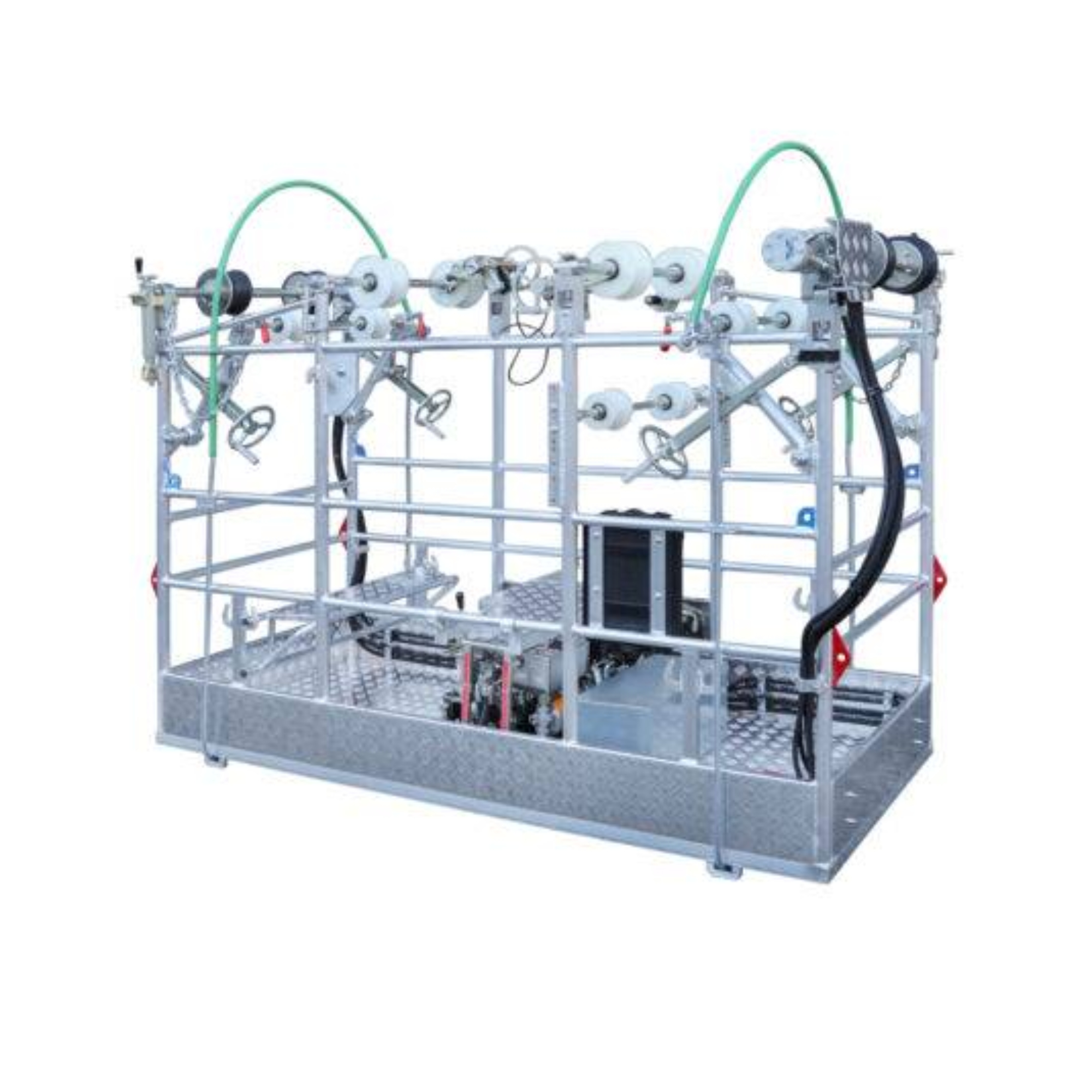

034-M-4 MOTORIZED INSPECTION TROLLEY

This model is designed for overpassing existing spacers.
Suitable for 2,3 or 4 bundled conductor configurations.
2 linemen towable trolley, with aluminum wheels mounted on four cross-arms and 1 positioning bar, anti-slip floor, n°2 stationary brakes, safety frame ropes and counter-meter device Hydraulic driven transmission, aluminum traction wheels with rubber liners.
Made of welded aluminum alloy (certified TIG system).
Features and performances:
– 4 stroke gasoline engine – 4 hp (2.95 kW);
– Max speed 30 m/min (both directions);
– Maximum slope 40% (22°).
Upon request:
– Nylon wheels;
– Earthing device;
– Openable and articulated arms;
– “Custom-made” size available;
– Lifting/positioning device Mod. DT034MDSR;
– Anchoring point in compliance with UNI EN 795:2012.
