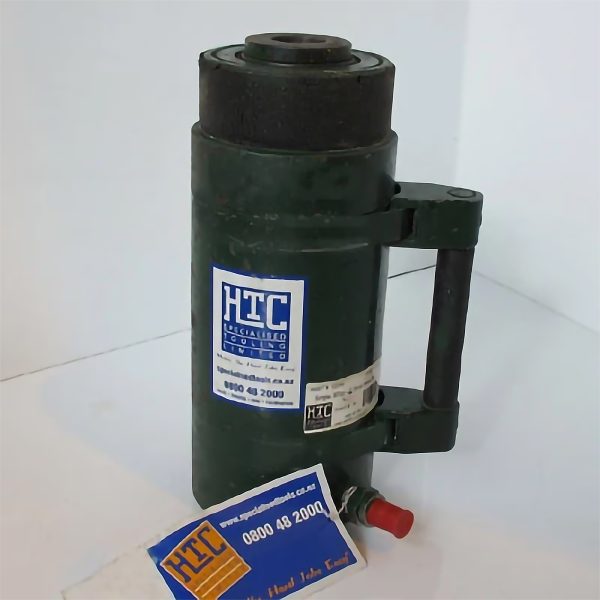

RH306 30 Ton x 152mm Stroke

RH306 30 Ton x 152mm Stroke

Hollow cylinders have the added advantage of being able to fit a shaft through the middle of the cylinder. Ideal for stress testing, bearing removal or puller applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 625cc
Cylinder effective area 40.9cm²
Closed height 247.7mm
Outside diameter 120.7mm
Piston diameter 82.6mm
Centre hole diameter 32.5mm
Weight: 17.7kg
Heavy duty spring for quick return
