Features

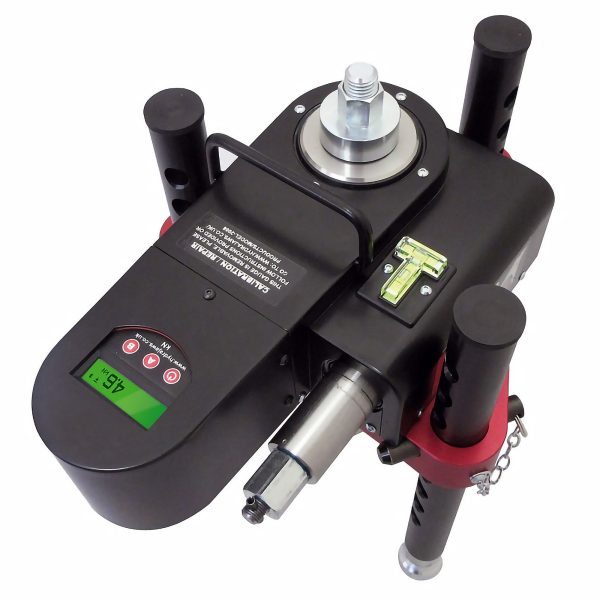

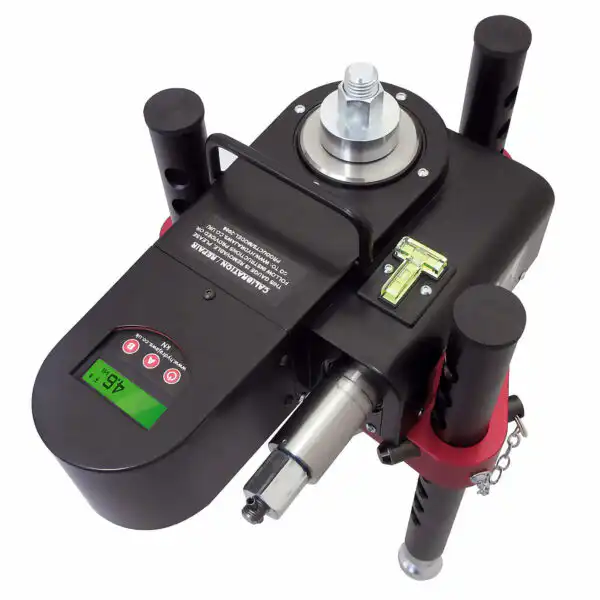

- 0-145kN Dual Scale rechargeable digital gauge compatible with the latest FREE Hydrajaws Verify PRO App (detachable for calibration, reduces carrier return costs).
- 2008 lightweight aluminium offset triangular load-spreading bridge with nine height positions. The swivel feet offer fine height adjustment.
- Load application is achieved via a 24mm ratchet handle driving a hydraulic multiplier.
- Spirit level indicates the overall balance of the test rig.
- 10mm eyehook installed for attaching a lanyard as appropriate.
- The foam filler can accommodate four rebar adaptors.
- Hydrajaws gauge calibration certificate (valid for 12 months).
- It is supplied in a wheeled robust carry case with a telescopic handle and full operating instructions.
Kit includes the following adaptors:
- 5 x threaded adaptors M20>M12, M20>M16, M20>M20, M20>M24 & M20>M30. Imperial UNC equivalent threaded stud adaptors are available.
Applications
- Proof and failure load testing of most fixing types
- Â High load expanding and resin anchors
- Â Cast in sockets and channel
- Â Holding down bolts for stanchion base plates
- Â Base plate fixings for column lighting
- Â Anchorage for crash barrier and safety fences
- Â Anchorage for stadium crush barriers
- Â Bridge parapet anchors
