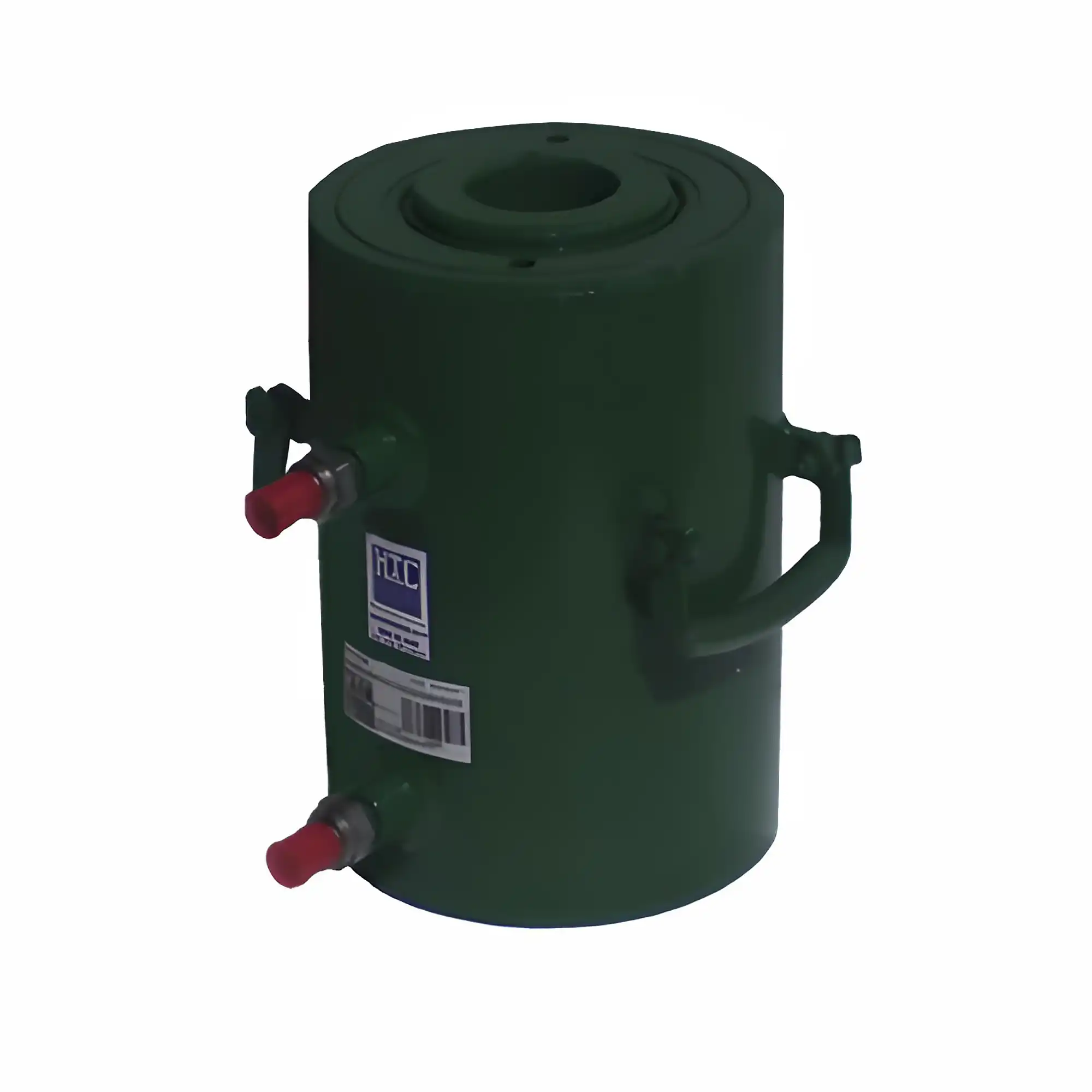

RCD1003 100 Ton x 76mm Stroke

Double acting cylinders have the advantage of a powered return as well as powered advance, giving the operator more control and the ability to use these cylinders for push and pull applications.

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

Technical information is indicative only, please confirm with our Hire Representative on hiring.

Oil capacity 345cc
Cylinder effective area ADVANCE 139cm²
Closed height 228.6mm
Outside diameter 209.55mm
Piston diameter 127mm
Centre hole diameter 79.4mm
Weight: 45kg
