Electric Hoist 200kg with 40m drop

Electric Hoist 200kg with 40m drop

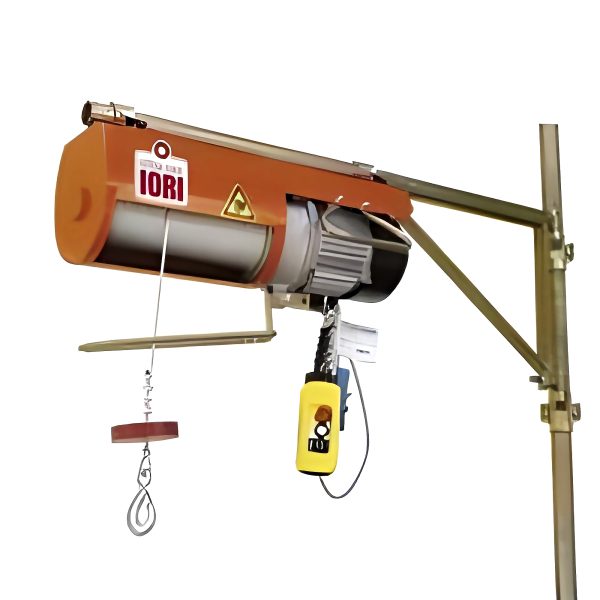

200kg Electric Hoist with 40m drop – DM200/E. Capable of lifting loads of up to 200Kg at 20m per minute to a maximum height of 40 metres. The machine is operated through a pendant control system

For Hire Rates please click the Enquire button below, or call the team on 0800 48 2000.

More Information

Rated capacity Kg 200
Mass of hoist Kg 43
Lifting speed m/min 38
Electric motor single phase
Power Kw 1,45
* Voltage V 230
*Frequency Hz 50
Shaft rotation speed 1400 rpm
Reduction ratio 1:19,0
Rotation – resistant steel rope mm 5 diameter
Number of strands n 133
Diameter of strands mm 0,33
Declared breaking load KN 17
Unit resistance N / mm² 1960
Lenght of rope m 40
Length mm 510
Width mm 300
Height mm 385
The electric motor may be manufactured with different values of frequency and voltage.
