Torque multiplier with Over-load protection
A manual torque multiplier with over-load shear pin protection, planetary gearbox, and power classes up to 10,000 Nm, driven by a torque wrench.
Additional Information
More Information

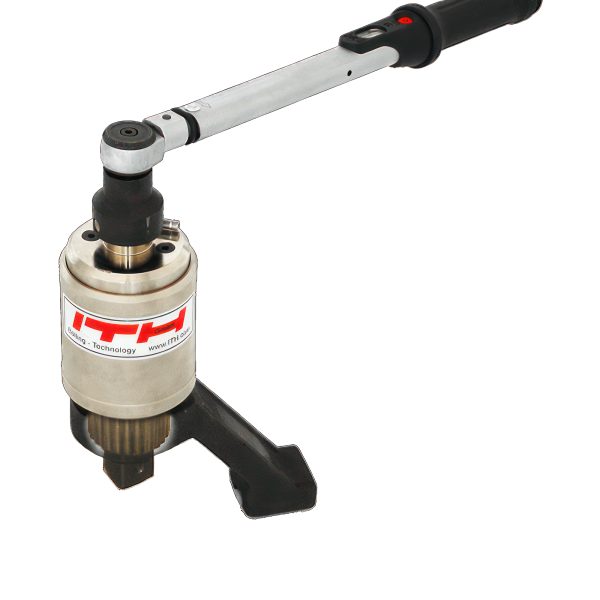

The ITH Mechanical Torque Multiplier MDS is a powerful, versatile manual tool designed for precision and reliability, driven by a handheld wrench. A built-in safety design includes over-load protection via a shear pin, protecting the unit from excessive loads. Power classes reach up to 10,000 Nm, suiting a wide range of demanding applications.
Key Features
- Over-load protection via a shear pin ensures operational safety and protects the unit from excessive loads.
- Power classes up to 10,000 Nm suit a wide range of demanding applications.
- Ready for on-site construction, with various sockets available for flexible use.
- 1/2″ square drive (above) ensures compatibility with a wide range of sockets and tools.
- 1″ or 1½″ square drive (down) accommodates hexagon sockets, hexagon drives, and more.
- Switchable backstop (L/R) allows easy switching between tightening and loosening.
- Planetary gearbox multiplies output for greater efficiency and effectiveness.
- Fine-toothed housing allows ideal 360° positioning of the reaction arm, suiting swivel foot, twin, or special reaction arms.
Typical Applications
- On-site construction requiring flexible socket configurations
- Demanding industrial bolting up to 10,000 Nm
- Applications requiring 360° reaction arm positioning
- Jobs needing both tightening and loosening capability

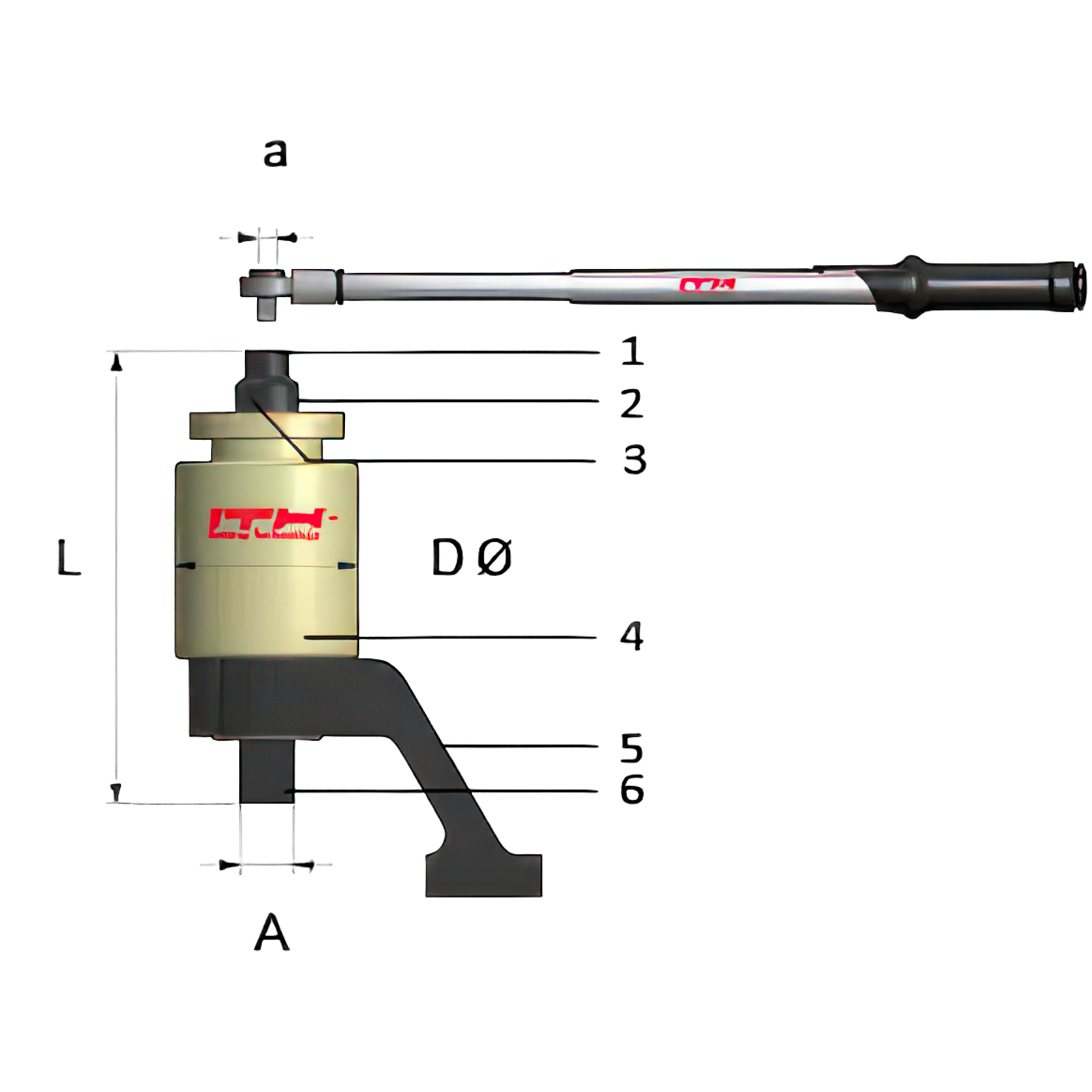

ITH Mechanical Torque Multiplier MDS Specifications
| Spec | Detail |
|---|---|
| Power Classes | Up to 10,000 Nm |
| Drive (Above) | 1/2″ square |
| Drive (Down) | 1″ or 1½″ square |
| Backstop | Switchable (L/R) |
| Gearbox | Planetary |
| Safety | Over-load protection via shear pin |
| Reaction Arm | 360° positioning; swivel foot, twin, or special arm compatible |
