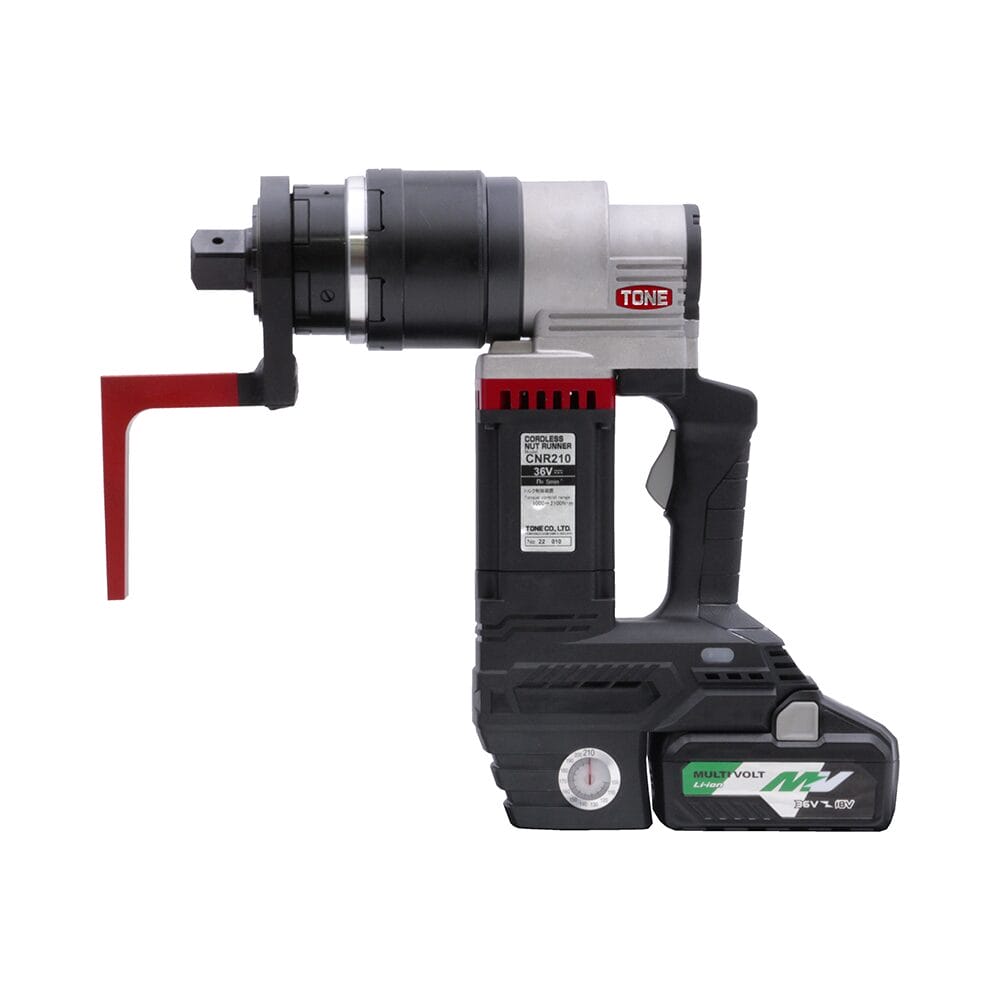

TONE Electric Cordless Nutrunner (CNR Series)
The TONE CNR Series are cordless battery nutrunners with an integrated torque controller and square drive — purpose-built for structural, civil, and infrastructure bolting where mains power isn’t available. Five models cover 150 to 2,100 N·m, all running on the HiKOKI Multi-Volt battery platform with a 40-minute charge time. Brushless DC motor, automatic torque shut-off, and ±5% repeat accuracy. Supplied with output adapter, L-shaped reaction bar, battery, charger, and metal case.
More Information
The TONE CNR Series brings square-drive cordless bolting to structural and civil applications — fully cordless, automatic torque shut-off, and the same ±5% accuracy as TONE’s wired nutrunner range. Five models cover 150 to 2,100 N·m.
Why the CNR Series
The CNR Series is TONE’s square-drive cordless nutrunner range — the counterpart to the lever-socket CNB Series, designed for applications where standard impact sockets are used rather than lever sockets. The torque controller is integrated directly into the tool body, automatic shut-off stops the tool at the preset torque value, and the brushless DC motor delivers consistent performance across the full torque range with minimal maintenance.
All five models run on the HiKOKI Multi-Volt battery platform (BSL 36B18 / BSL 36A18), with a 40-minute charge time. The square drive accepts standard impact sockets across the ¾” and 1″ drive ranges, making the CNR Series straightforward to deploy on sites already running impact socket inventory.
Key Features
- Fully cordless — no power outlet required; work anywhere on site
- Square drive — accepts standard impact sockets; ¾” for CNR30/50, 1″ for CNR80/120/210
- Integrated torque controller — no external control box; clean tool body
- Automatic shut-off — stops precisely at preset torque value every time
- Brushless DC motor — efficient, durable, and low maintenance
- Bidirectional operation — full torque control for tightening and loosening
- ±5% repeat tightening accuracy — under consistent conditions across all models
- Digitorqon compatible — supports optional DTM-series digital torque verification
- HiKOKI Multi-Volt battery platform — 40-minute charge time; BSL 36B18 and BSL 36A18 batteries
Typical Applications
- Structural steelwork and high-tension bolt installation
- Bridge and civil infrastructure construction
- Road construction and barrier systems
- Rail and railway infrastructure
- Remote or elevated worksites without reliable mains power access
- Industrial plant maintenance
Range Overview
| Model | Torque Range | Drive Size | Typical Bolt Size |
|---|---|---|---|
| CNR30 | 150 – 300 N·m | 19.0 mm (¾”) sq. | M16 |
| CNR50 | 200 – 500 N·m | 19.0 mm (¾”) sq. | M20 |
| CNR80 | 350 – 800 N·m | 25.4 mm (1″) sq. | M22 |
| CNR120 | 500 – 1,200 N·m | 25.4 mm (1″) sq. | M24 |
| CNR210 | 1,000 – 2,100 N·m | 25.4 mm (1″) sq. | M30 |
Each model supplied with output adapter, L-shaped reaction bar, bush, spirolox, battery (4.0 Ah), charger, battery cover, and metal carrying case.
📊 Specifications — TONE CNR Series Cordless Nutrunner
| Model | Torque Range (N·m) | Drive Size | No-Load Speed (rpm) | Motor | Weight (kg) | Dimensions W×D×H (mm) | Bolts per Charge (4.0 Ah) |
|---|---|---|---|---|---|---|---|
| CNR30 | 150 – 300 | 19.0 mm (¾”) sq. | 32 | Brushless DC | 4.9 | 326 × 286 × 83 | ~240 (M16 F10T) |
| CNR50 | 200 – 500 | 19.0 mm (¾”) sq. | 22 | Brushless DC | 5.5 | 331 × 299 × 83 | ~200 (M20 F10T) |
| CNR80 | 350 – 800 | 25.4 mm (1″) sq. | 17 | Brushless DC | 5.9 | 335 × 314 × 83 | ~180 (M22 F10T) |
| CNR120 | 500 – 1,200 | 25.4 mm (1″) sq. | 10 | Brushless DC | 7.4 | 349 × 329 × 83 | ~140 (M24 F10T) |
| CNR210 | 1,000 – 2,100 | 25.4 mm (1″) sq. | 5 | Brushless DC | 8.9 | 355 × 340 × 38 | ~80 (M30 F10T) |
Note: Compatible batteries are HiKOKI BSL 36B18 and BSL 36A18 only. Charger is not sold separately. Bolts per charge figures are based on F10T high-tension bolts under standard conditions — actual count will vary with bolt condition, friction, and temperature.
All models: Repeat tightening accuracy ±5% · Bidirectional (tighten/loosen) · Digitorqon compatible · Pistol-type body · HiKOKI Multi-Volt battery (BSL 36B18 / BSL 36A18) · 40 min charge time · Charger input: AC 100V 50–60 Hz · Supplied with output adapter, L-shaped reaction bar, battery, charger, and metal case
