Support Plate
Support Plates for Reliable Air Caster Systems

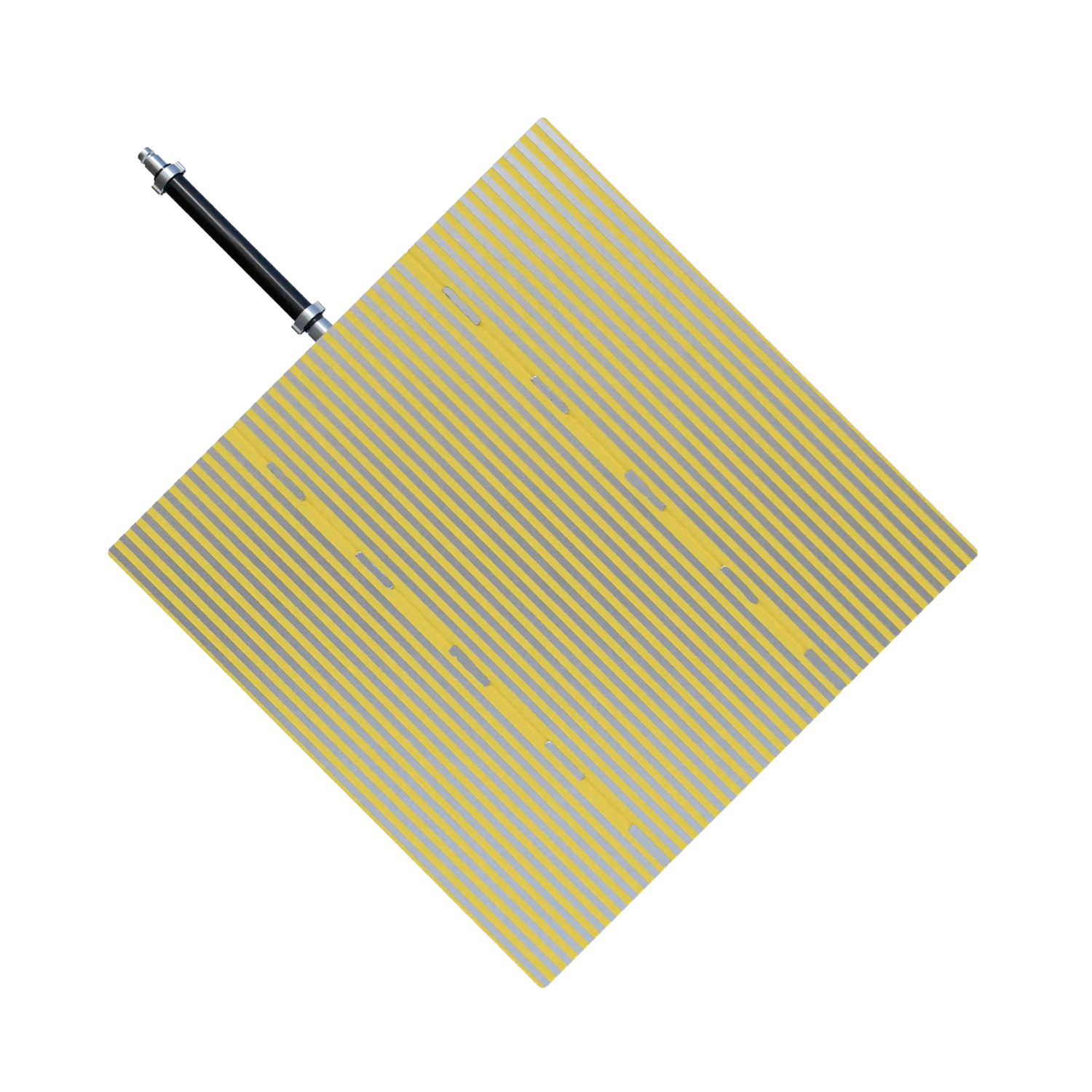

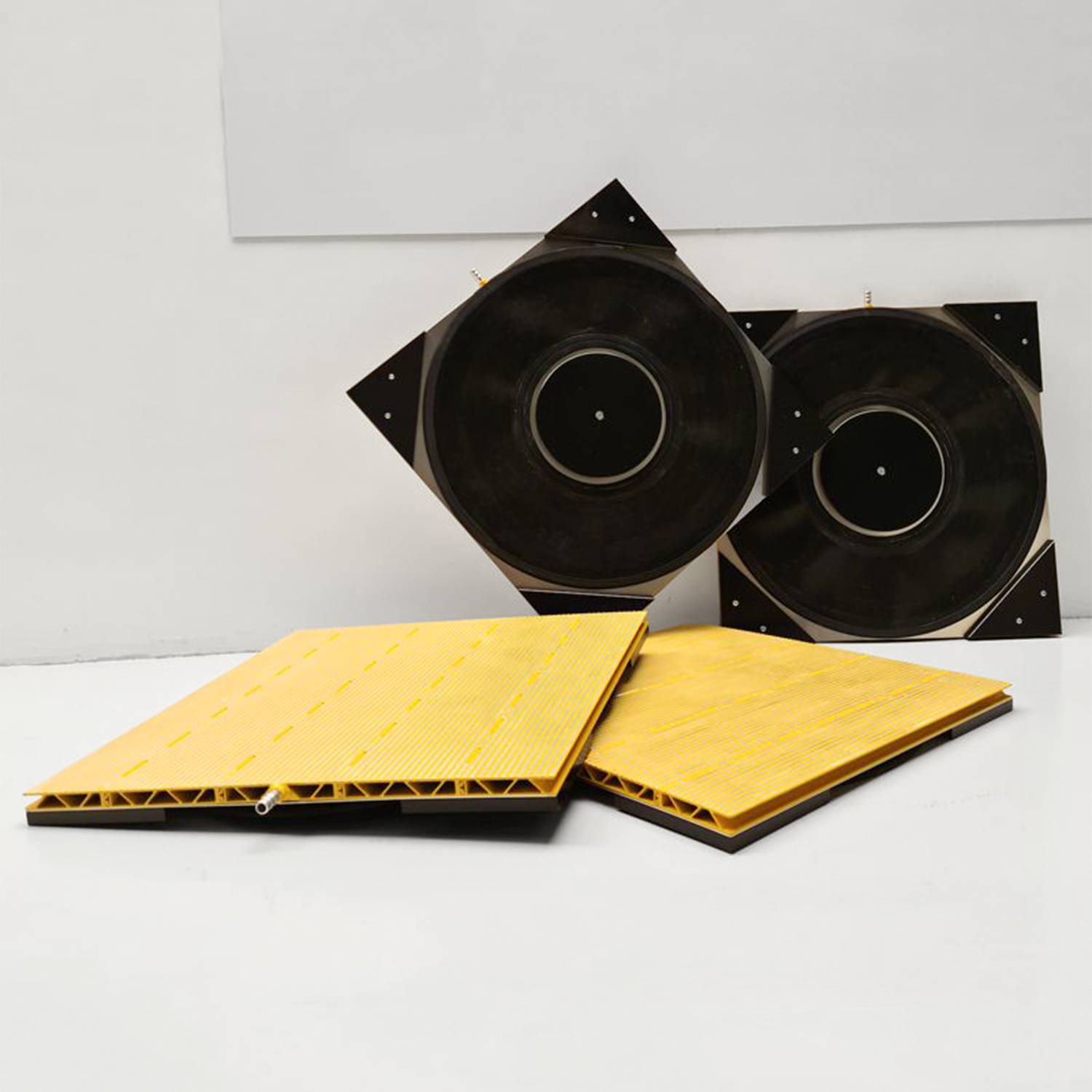

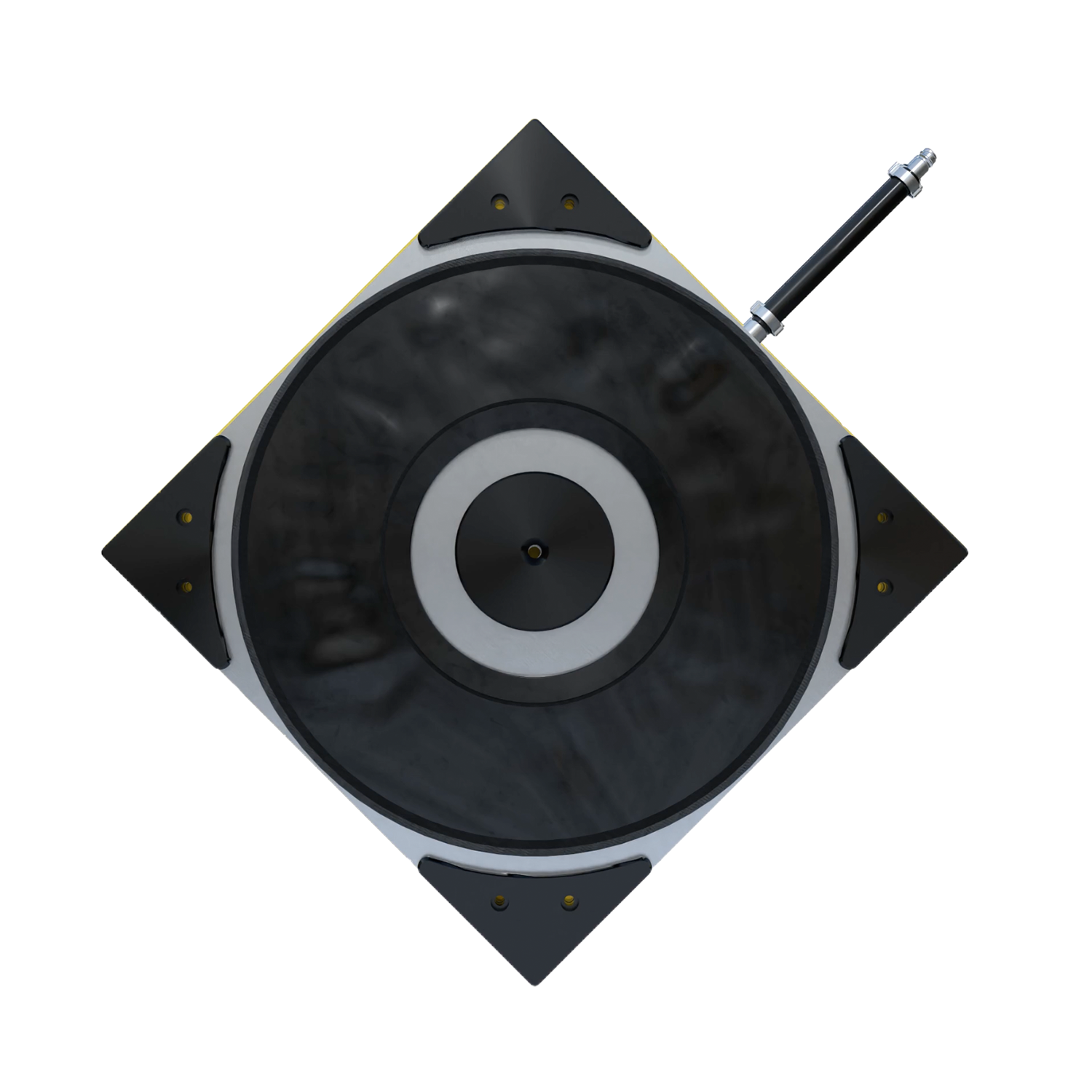

Support Plates are a key component of modular air caster systems, providing the rigidity and airflow management needed for reliable load movement. Designed to carry air from the supply to the caster while preventing deformation under load, they help maintain consistent performance during demanding material handling applications.
Available in fixed mount configurations for compact installations or slide mount options for easier caster inspection and replacement, Support Plates provide a practical solution for maintaining stability, accessibility, and dependable air caster operation.
Variations
Ultra Thin
Ultra Strong
Ultra Light
More Information
Key Features:

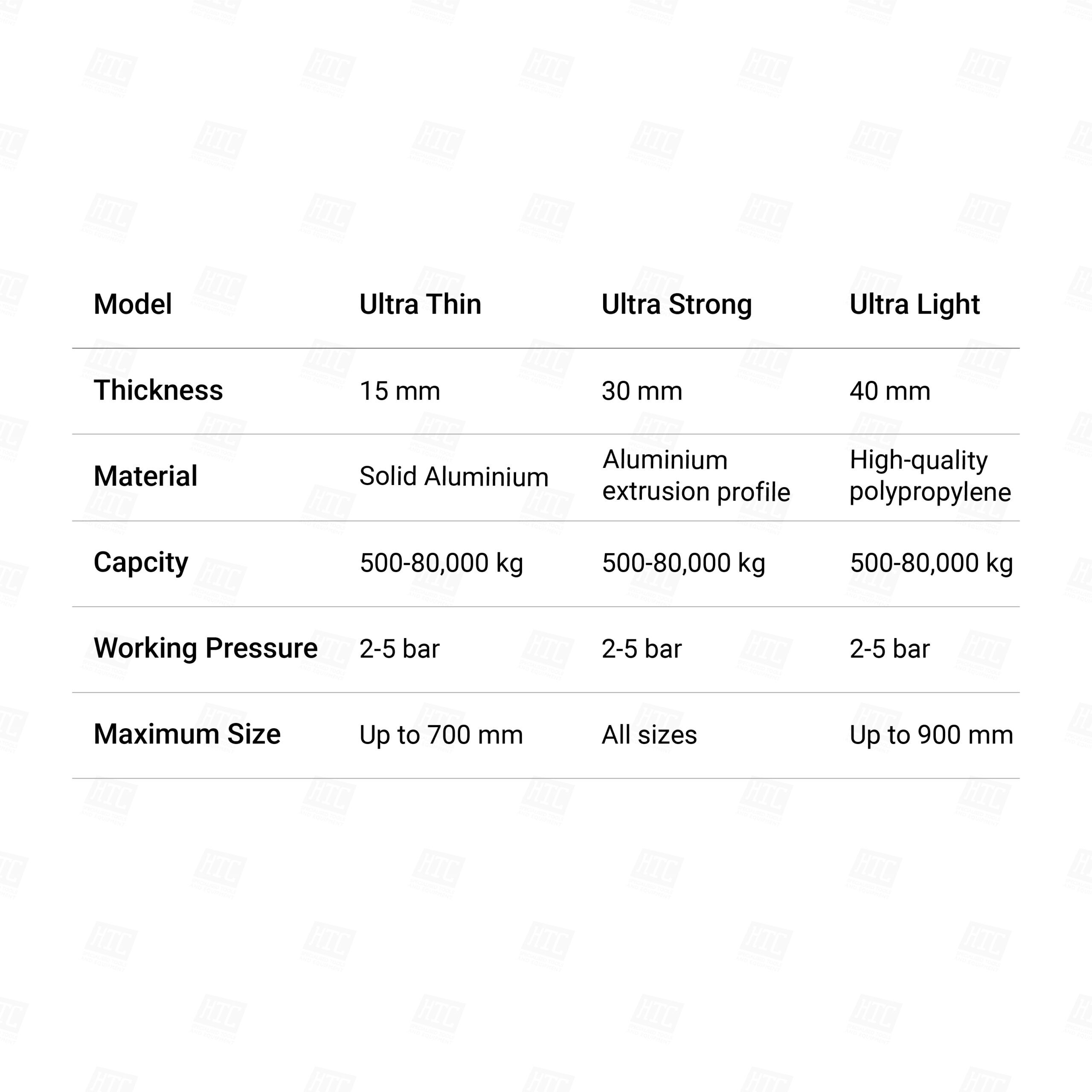

| Model | Thickness | Material |
|---|---|---|
| Ultra Thin | 15 mm | Solid aluminium |
| Ultra Strong | 30 mm | Aluminium extrusion profile |
| Ultra Light | 40 mm | High-quality polypropylene |
| Model | Capacity | Working Pressure | Maximum Size |
|---|---|---|---|
| Ultra Thin | 500 – 80,000 kg | 2 – 5 bar | Up to 700 mm |
| Ultra Strong | 500 – 80,000 kg | 2 – 5 bar | All sizes |
| Ultra Light | 500 – 80,000 kg | 2 – 5 bar | Up to 900 mm |
