Sava – Pipe Repair Plug Range
When the job demands dependable pipeline trenchless rehabilitation, localized sealing, or point repairs, the Sava Pipe Repair Plug and Packer range at HTC delivers industrial-grade performance trusted by plumbers, contractors, and civil maintenance teams.
Designed for maximum flexibility, durability, and ease of handling, these multi-size pneumatic packers feature a replaceable rubber sleeve, allowing them to exhibit excellent expansion and curing containment characteristics across pipelines for patch repairs ranging from 1 to 5 meters. They feature a highly flexible, lightweight construction engineered to easily bend and fit through standard manholes, non-corrosive metal parts to withstand harsh wastewater environments, and an integrated bypass and wheel system to simplify smooth positioning along the pipeline. Perfect for drainage and rehabilitation contractors, this specialized range is built to ensure seamless performance during demanding pipeline maintenance and no-dig repair applications.
Additional Information
More Information
Built for Trenchless Pipeline Rehabilitation & Patch Repairs
The Sava Pipe Repair Plug and Packer range is engineered to repair and seal faulty pipework from small house connections up to municipal lines. Their multi-size design accommodates localized patch repairs ranging from 1 to 5 meters, helping restoration crews work faster while reducing equipment inventory.
Manufactured with a premium replaceable rubber sleeve and non-corrosive metal parts, these packers are built to withstand demanding pipeline conditions while remaining lightweight and highly flexible for seamless insertion through manholes, sharp bends, and tight cleanouts.

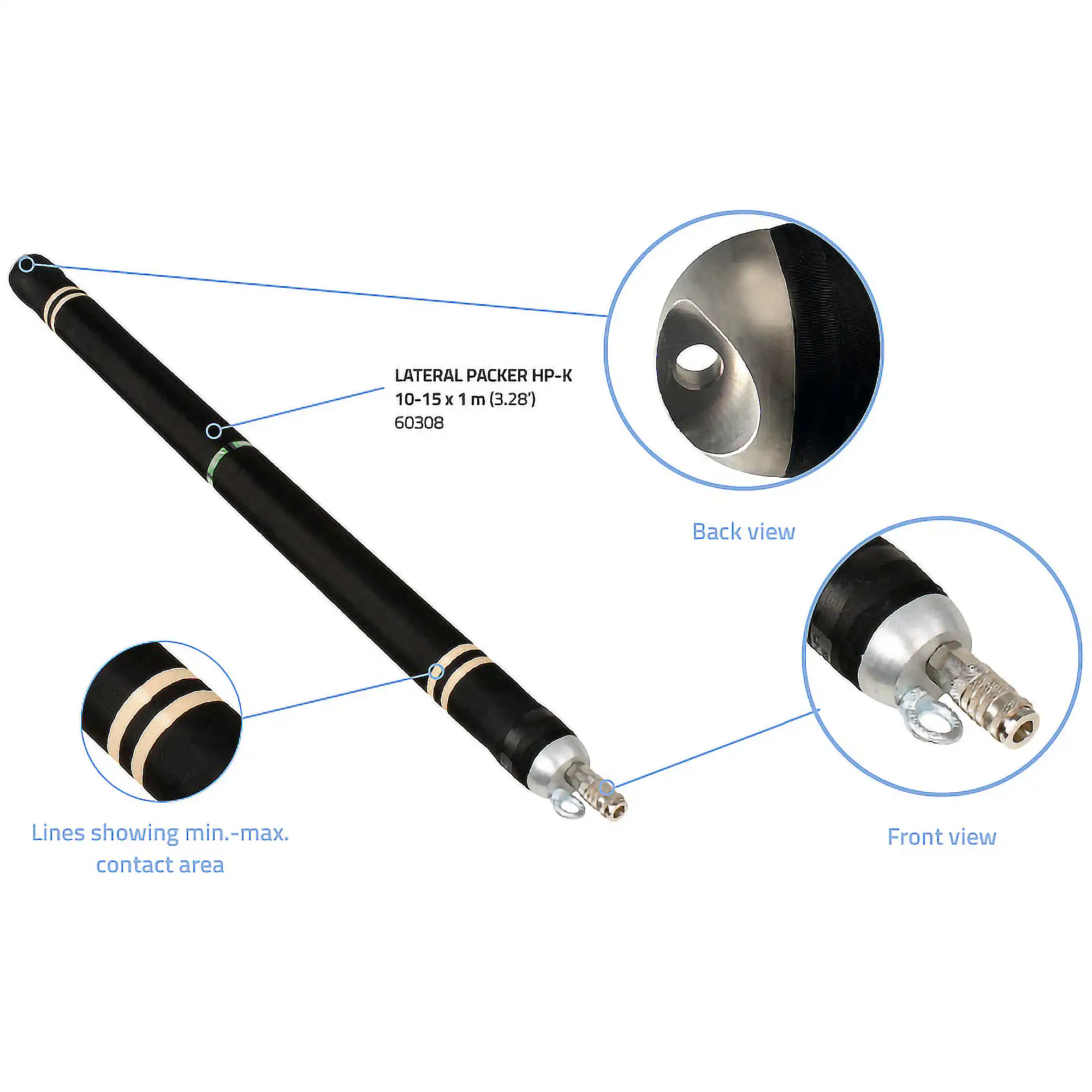

Packer Designs – What’s the Difference?
| Feature | Lateral Packers (HP-K) | Flexible Long & Bypass Packers |
| Primary Application | Optimized for trenchless repairs in smaller diameter pipelines, specifically inside residential and commercial house connection networks. | Engineered for standard main lines and extensive patch applications stretching between 1 and 5 meters in length. |
| Ideal Applications | House connection installations and lateral line repairsNavigating tight bends and multi-angle junctionsSmall-diameter localized pipe sealing | Long-distance localized main-line point repairsCuring repairs where continuous fluid bypass is mandatoryPrecision remote mapping in deep sewer pipelines |
| Design & Capabilities | Their bodies are intentionally rounded on both ends to simplify manual handling, tracking, and smooth insertion into tight, twisting lines. | Come standard with an integrated bypass channel to handle live water flows during the rehabilitation window, paired with a heavy-duty wheel system to facilitate flawless rolling deployment along the pipe. |
Key Features
-
Wide Repair Coverage Multi-size outer expansion profiles allow a single packer to conform to variable pipe internal diameters and patch lengths up to 5 meters.
-
Replaceable Rubber Sleeve Outfitted with an easily interchangeable outer rubber sleeve, heavily extending the lifespan of the core pneumatic structural asset.
-
Highly Flexible & Bend-Friendly Lightweight and incredibly pliable construction allows the packers to easily bend around corners and slip through standard manholes without binding.
-
Non-Corrosive Metal Parts Fabricated entirely with high-grade, corrosion-resistant metal fittings to survive constant contact with chemical grouts, resins, and aggressive wastewater.
-
Integrated Bypass & Wheel System Supports continuous flow-through capability to minimize line backup during curing, while the balanced wheel sets ensure easy, stable positioning down the pipeline.
-
Min.-Max. Contact Indicators Features clear visual indicators showing the minimum and maximum structural contact areas for foolproof positioning and safe field operation.
Available Sizes
The range provides targeted modular lengths and diameters built for residential laterals up to large civil stormwater and wastewater conduits. Standard configurations include:
-
Small Connection Diameters: Optimized for tight cleanouts and house connection lines (e.g., 70–100 mm tiers).
-
Modular Patch Lengths: Available in variable lengths supporting sectional point repairs from 0.5m, 1m, 1.5m, 2m, and up to 5 meters.
Accessories & System Components
HTC supplies a complete range of matching, professional-grade rehabilitation accessories to ensure maximum operator control:
-
Inflation Hoses: 10-meter commercial-grade air lines available in Red, Blue, and Yellow for immediate visual identification and safety monitoring.
-
Single Fitting Controllers: Precision regulated heads available in 2.5 bar and 3.0 bar formats to maintain exact target packer inflation pressures.
-
Modular Push Rods: 1.5-meter lightweight push rod segments (0.3 kg) designed to easily thread together for manual remote placement of lateral packers.
-
Poly Lift Inflation Hoses: Safety-rated vertical lift lines available in 5-meter and 10-meter variants to simplify deep manhole drop positioning and extraction.
-
Digital Display Control Units: Specialized control modules integrated with a safety PFI relay for climate-controlled or specialized heat-curing packer systems.
The Sava Pipe Repair Plug & Packer range is suitable for:
-
Trenchless no-dig pipeline patch repairs
-
House connection and lateral drainage line rehabilitation
-
Municipal sewer joint sealing and crack remediation
-
Wastewater main line structural lining containment
-
Industrial plant process line no-dig structural repairs
-
Restricted access vault and manhole localized line sealing
Why Choose HTC?
As New Zealand’s specialists in pipeline sealing and testing equipment, HTC Specialised Tools supplies proven Sava solutions backed by local support and industry expertise. Whether you need a compact isolation plug or a large-scale bypass solution for municipal infrastructure, HTC can help specify the right setup for your application.
