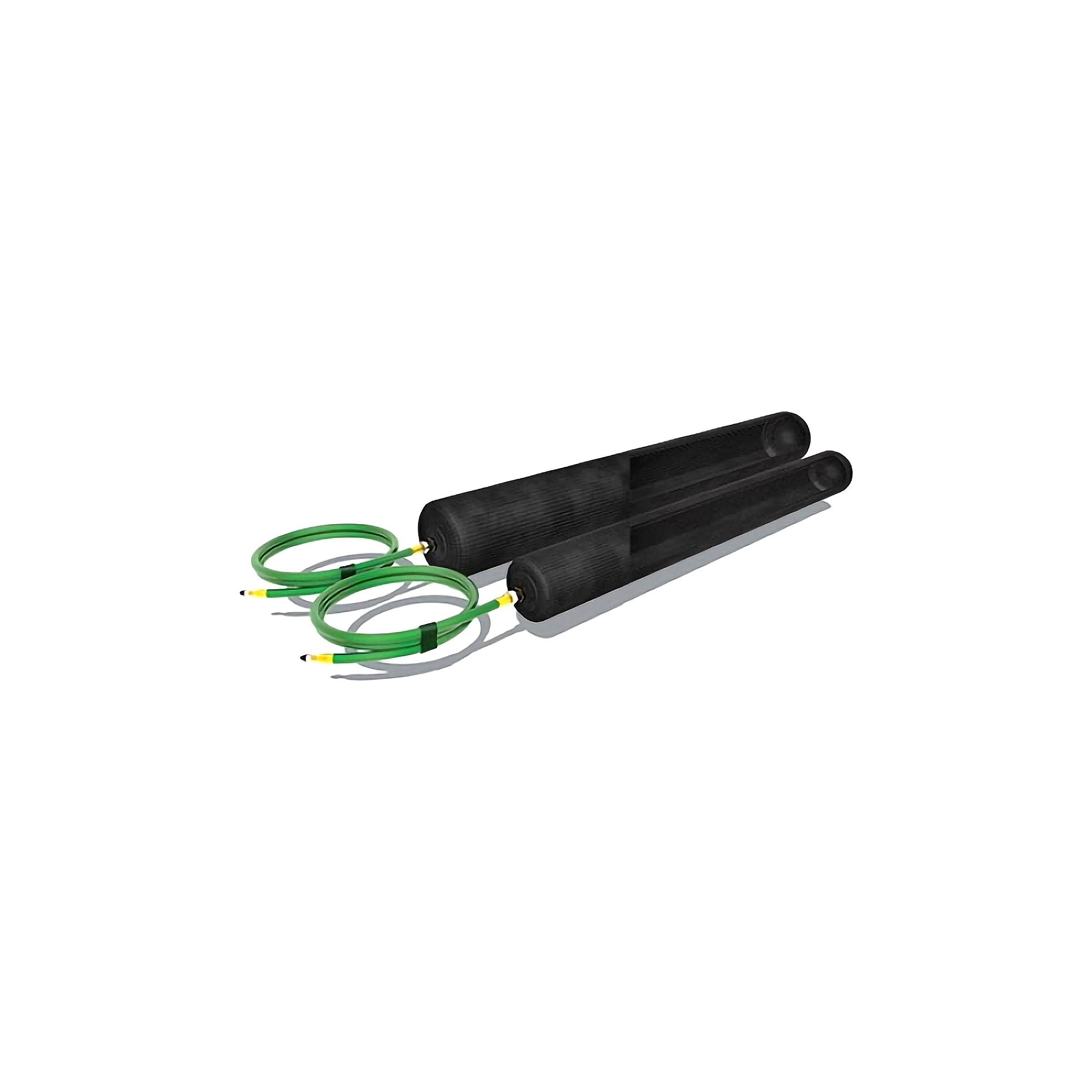

Sava – Long Plugs – PLUGY DC
When the job demands dependable pipe isolation, testing, or flow stopping simultaneously in both main and lateral lines, the Sava PLUGY DC long-plug range at HTC delivers industrial-grade performance trusted by plumbers, contractors, and maintenance teams.
Designed for flexibility, durability, and ease of handling, these multi-size pneumatic long plugs ensure efficient sealing of both the connection and the main pipe at the same time across pipeline diameters from 50 mm up to 150 mm. They feature a unique two-part inflation sequence where the upper part inflates first to prevent liquid spills before the remaining body completely stops the flow, a TR 15 inflation valve, and come equipped with a 100 cm long supply hose to simplify manipulation. Perfect for plumbers, this specialized range is engineered to provide reliable control during demanding pipeline maintenance and lateral repair applications.
Additional Information
More Information
PLUGY DC – Handling & Sealing Sequence
The unique construction of PLUGY DC blocking plugs incorporates a specialized two-part inflation sequence to ensure a completely secure and spill-free operation.
-
Phase 1: Upper Part Inflation – The plug is first inserted into the middle of the connection. In the first phase of the process, the upper plug part is inflated to completely prevent liquid spills from escaping the lateral line.
-
Phase 2: Complete Flow Stopping – In the second phase, the remaining lower body of the plug is inflated to seal the main pipe and completely stop the flow.
This specialized handling sequence makes them ideal for connection repairs, localized leak detection, line isolation, and demanding lateral maintenance works.
Key Features
-
Simultaneous Sealing Specifically engineered to form an efficient, synchronous seal across both the junction connection and the main pipeline.
-
Two-Phase Spill Prevention Unique inflation sequence seals the upper section first to isolate wastewater and prevent messy liquid spills before full line blockage.
-
Integrated Supply Hose Every plug comes equipped with a 100 cm long supply hose to simplify deep-set manipulation, positioning, and retrieval within the pipe infrastructure.
-
Standard Valve Interface Outfitted with a reliable TR 15 inflation valve thread size, requiring a standard inflation pressure of 2.5 bar.
-
Proven Back-Pressure Resistance Engineered to deliver dependable back-pressure containment (up to 2.2 bar depending on plug size) when measured in a dry iron pipe.
Available Sizes
The range provides extensive overlapping pipeline coverage spanning from 50 mm up to 150 mm. Available coverage ranges include:
-
50–75 mm
-
75–100 mm
-
100–150 mm
-
150 mm (single-size configuration)
Accessories & System Components
HTC also supplies a complete range of compatible accessories to improve operator control and simplify deployment on the job:
-
Inflation Hoses: 6 mm diameter flexible utility inflation hoses, available in 2-meter (0.2 kg) and 5-meter (0.5 kg) lengths.
-
Hand Pump: A lightweight 0.8 kg manual hand pump for precise, hassle-free on-site pneumatic plug inflation.
The Sava PLUGY DC range is suitable for:
-
Simultaneous main and lateral pipe sealing
-
Commercial and residential plumbing junction repairs
-
Spill-sensitive wastewater line isolation
-
Connection leak detection and pressure testing
-
Municipal utility and lateral line maintenance
