Sava – High Performance Plugs – PLUGY HPF & PLUGSY HPF
When the job demands dependable pipe isolation, testing, or flow stopping under more demanding conditions, the Sava PLUGY HPF & PLUGSY HPF high-performance range at HTC delivers industrial-grade performance trusted by contractors, utilities, and civil infrastructure teams.
Designed for maximum strength, durability, and safety, these multi-size pneumatic pipe plugs are made from a high-quality rubber mixture with additional built-in aramid reinforcement, allowing them to ensure reliable functioning and withstand higher back pressures across all types of pipelines from 100 mm up to 2400 mm. They feature an extra-strong aramid reinforcement construction, a wider range of large bypass flows (including 4″, 6″, and 8″ openings) on the PLUGSY models, and heavy-duty eyebolts with quick coupling to simplify manipulation. Perfect for flow stopping and pipe tightness testing, this specialized range is also available in oil-resistant versions for demanding pipeline maintenance applications.
Additional Information
More Information
Built for High-Performance & Demanding Pipe Applications
The Sava PLUGY HPF and PLUGSY HPF range is engineered to seal and test pipework from 100mm through to 2400mm diameter. Their overlapping multi-size design means fewer plugs are required on-site, helping crews work faster while reducing equipment inventory.
Manufactured from a high-quality rubber mixture with additional built-in aramid reinforcement, these plugs are specially designed to withstand higher back pressures and perform reliably under the most demanding conditions. Despite their heavy-duty construction, they remain highly flexible for seamless deployment and insertion into the pipeline network.
| Feature | PLUGY HPF – Blocking Plugs | PLUGSY HPF – Bypass Plugs |
| Primary Function | Designed for complete pipe sealing and isolation under high-pressure conditions. | Includes an integrated bypass, allowing high-capacity flow-through capability or fluid diversion while maintaining a secure pneumatic seal. |
| Ideal Applications | High back-pressure flow stoppingPipe maintenance and repair in demanding environmentsReliable leak detection and line isolationPipe tightness testing | Pipeline tightness testing with high-volume flow-throughLarge-scale temporary bypass operationsControlled drainage and diversion in municipal linesHigh-pressure flow management during utility works |
| Design & Capabilities | Robust aramid-reinforced construction ensures maximum safety and stability when blocking high-volume flows. | Bypass sizes are available in a wider range of large diameters, including 1″, 2″, 4″, 6″, and 8″ openings depending on the plug size, supporting high-volume flow management during critical operations. |
Key Features
-
Wide Pipe Coverage One plug covers multiple pipe sizes, reducing the overall number of plugs needed on-site.
-
Extra Strong Aramid Reinforcement Heavy-duty aramid cord reinforcement improves durability, structural strength, and pressure resistance.
-
Higher Back-Pressure Rating Specially engineered to withstand significantly higher back pressures than standard pneumatic plugs.
-

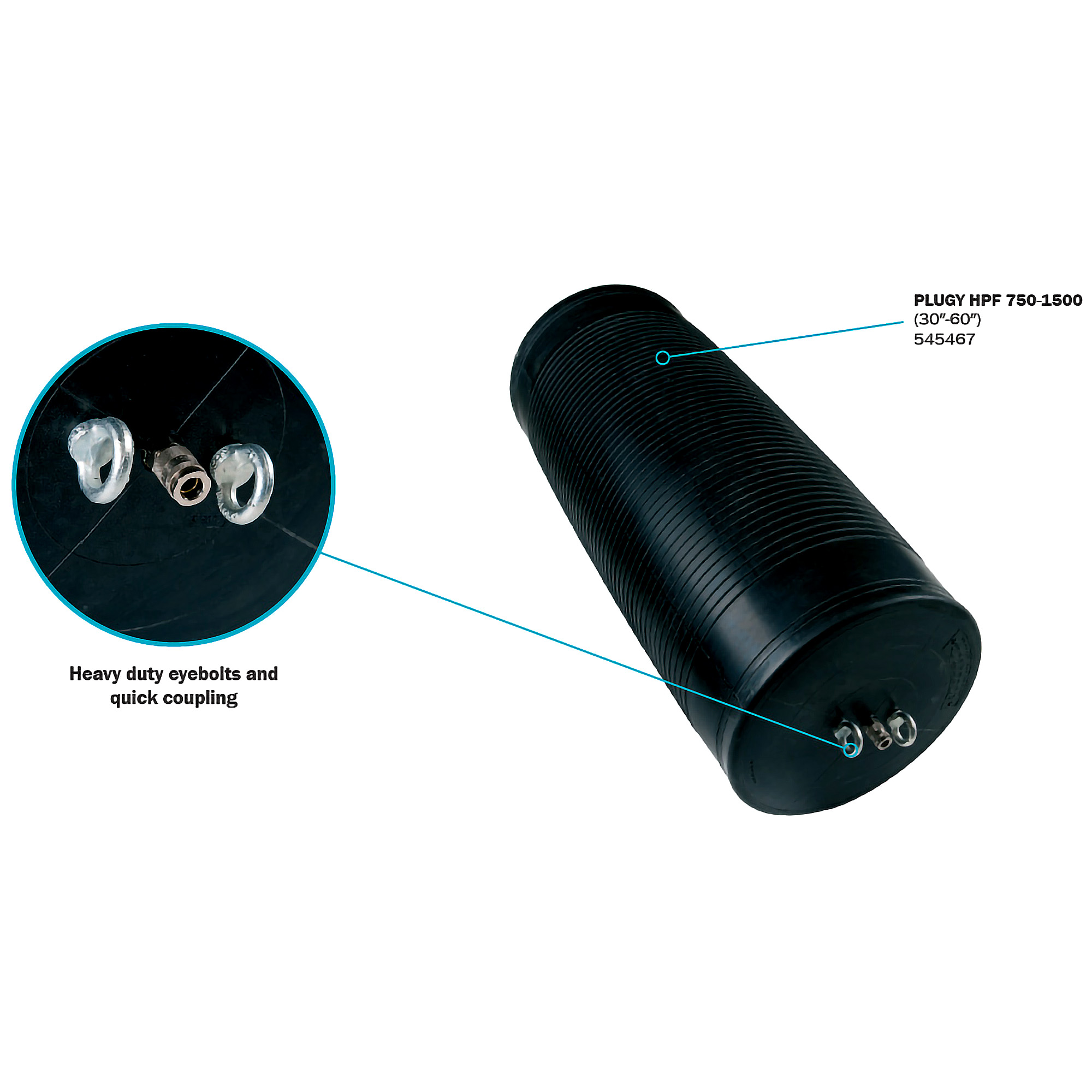

Heavy-Duty Eyebolts & Quick Coupling Equipped with robust eyebolts and high-grade quick coupling connections to simplify manipulation and safe positioning.
-
A Wider Range of Bypass Flows PLUGSY models offer large bypass configurations up to 8 inches to handle high-flow utility and municipal environments.
-
Oil-Resistant Options Available Suitable for specialized industrial, chemical, and petrochemical environments where oil or hydrocarbon resistance is required.
-
Ideal for Tightness Testing Delivers the reliable pneumatic sealing required for rigorous pipe tightness testing and flow stopping.
Available Sizes
The range includes solutions for small utility pipelines all the way up to massive civil, industrial, and municipal infrastructure. Available coverage ranges include:
-
100–200mm
-
150–300mm
-
200–400mm
-
350–600mm
-
500–800mm
-
500–1000mm
-
600–1200mm
-
750–1500mm
-
800–1800mm
-
1000–2400mm
Accessories & System Components
HTC also supplies a complete range of compatible, high-performance accessories to ensure safe operation:
-
Inflation Hose HPF NW10 (10m, Blue): Heavy-duty hose designed for plug sizes up to 500–1000mm (Type 27).
-
Inflation Hose HPF NW12 (10m, Blue): High-capacity inflation hose rated for larger plug sizes from 600–1200mm and up (Type 57).
-
Single Fitting Controllers: Calibrated pressure controllers available in 3.0 bar (Type 27), 2.5 bar (Type 57), 1.5 bar (Type 57), and 1.0 bar (Type 57) options to accurately match your specific plug’s required inflation pressure.
The Sava PLUGY HPF & PLUGSY HPF range is suitable for:
-
High back-pressure flow stopping
-
Pipe tightness testing and leak detection
-
Large-scale civil engineering and construction projects
-
Municipal sewer and main stormwater network upgrades
-
Water infrastructure maintenance and pipe rehabilitation
-
Industrial shutdowns and specialized plant line isolation
