Sava – Gas Plugs – PLUGY G & PLUGSY GM
When the job demands dependable pipe isolation, testing, or flow stopping in pipelines and gas pipelines with a restricted inlet area, the Sava PLUGY G & PLUGSY GM gas-plug range at HTC delivers industrial-grade performance trusted by contractors, utilities, and gas maintenance teams.
Designed for flexibility, durability, and ease of handling, these multi-size pneumatic gas plugs feature an innovative design and high flexibility that simplify handling and insertion across varying pipe diameters from 50 mm up to 500 mm. They feature a special elliptical shape that requires a very small insertion diameter, a special end cap for easier insertion, and integrated inflation and measuring connections to simplify manipulation. Perfect for utility crews, this specialized range is also available in oil-resistant versions for demanding pipeline maintenance applications.
Additional Information
More Information
Built for Restricted Inlet Pipe & Gas Applications
The Sava PLUGY G and PLUGSY GM range is engineered to seal and test pipelines and gas pipelines from 50mm through to 500mm diameter. Their overlapping multi-size design means fewer plugs are required on-site, helping crews work faster while reducing equipment inventory.
Manufactured with a highly flexible rubber sleeve and an innovative design, these plugs feature a special elliptical shape. This allows them to pass through very small insertion diameters and narrow openings while remaining highly adaptable for complex utility and gas network maintenance.

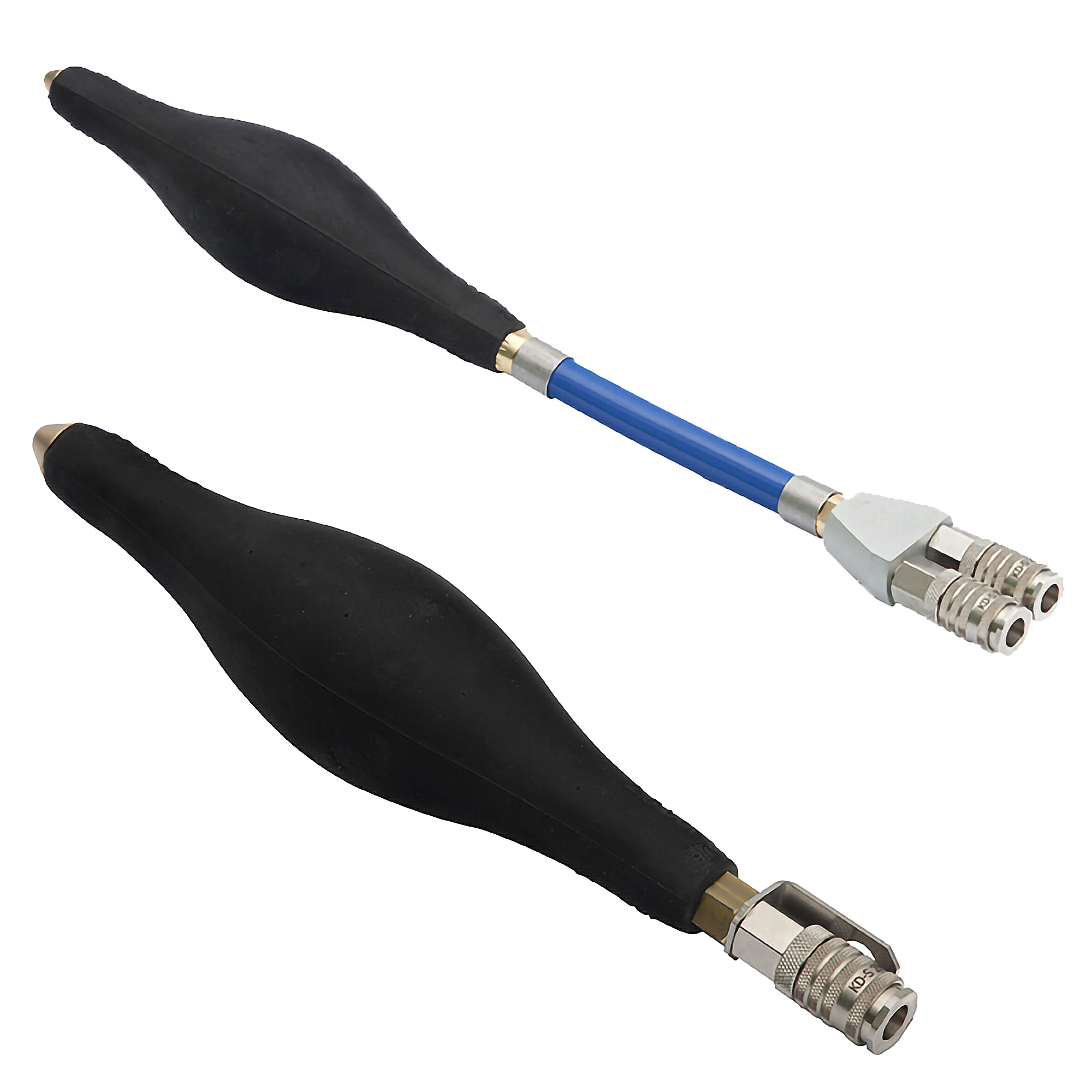

PLUGY G vs PLUGSY GM – What’s the Difference?
| Feature | PLUGY G – Blocking Plugs | PLUGSY GM – Bypass Plugs |
| Primary Function | Designed for complete pipe sealing and isolation in specialized lines. | Includes an integrated bypass, allowing flow-through capability or pressure monitoring while maintaining a secure pneumatic seal. |
| Ideal Applications | Gas and utility pipeline maintenance and repairLeak detection in restricted networksLine isolation with tight or narrow entry pointsGeneral pipeline sealing operations | Pipeline testing with flow-through or gas measuringTemporary bypass operations in restricted linesControlled drainage and sampling applicationsUtility and municipal gas infrastructure maintenance |
| Design & Capabilities | Highly flexible construction and minimized deflated diameters allow for quick deployment even in the most difficult access environments. | Bypass sizes are available in 5mm and 7mm openings depending on the model size, supporting safe monitoring during critical operations. |
Key Features
-
Special Elliptical Shape Unique configuration optimized to slip into specialized and tight profile pipelines smoothly.
-
Very Small Insertion Diameter Engineered specifically to compress down cleanly, requiring minimal clearance to enter the pipeline inlet.
-
Special End Cap Outfitted with a specialized front nose cap that dramatically simplifies handling and forward insertion past sharp edges.
-
Highly Flexible Rubber Sleeve Premium, high-compliance rubber compounds ensure excellent stretching and a gas-tight seal against the pipe walls.
-
Oil-Resistant Options Available Suitable for demanding industrial and petrochemical environments where chemical, hydrocarbon, or gas residue resistance is required.
Available Sizes
The range includes multi-size solutions tailored for restricted-entry municipal, utility, and industrial pipelines. Available coverage ranges include:
-
50–80mm
-
80–130mm
-
100–160mm
-
150–210mm
-
200–315mm
-
315–500mm
Accessories & System Components
HTC supplies a complete range of color-coded and pressure-matched accessories to keep field technicians safe:
-
Color-Coded Inflation Hoses: 10-meter heavy-duty inflation hoses available in Red, Blue, and Yellow for clear line identification on-site.
-
Poly Lift Inflation Hoses: Safety-rated lift hoses available in 5-meter and 10-meter lengths to facilitate remote vertical deployment.
-
Single Fitting Controllers: Calibrated pressure controllers available in specific 1.5 bar, 2.0 bar, 2.5 bar, and 3.0 bar variants to prevent over-inflation.
The Sava PLUGY G & PLUGSY GM range is suitable for:
-
Gas infrastructure maintenance
-
Restricted access pipeline sealing
-
Utility and municipal pipeline testing
-
Industrial plant shutdown and line isolation
-
Leak detection and specialized pressure monitoring
-
High-flexibility pipeline rehabilitation works
