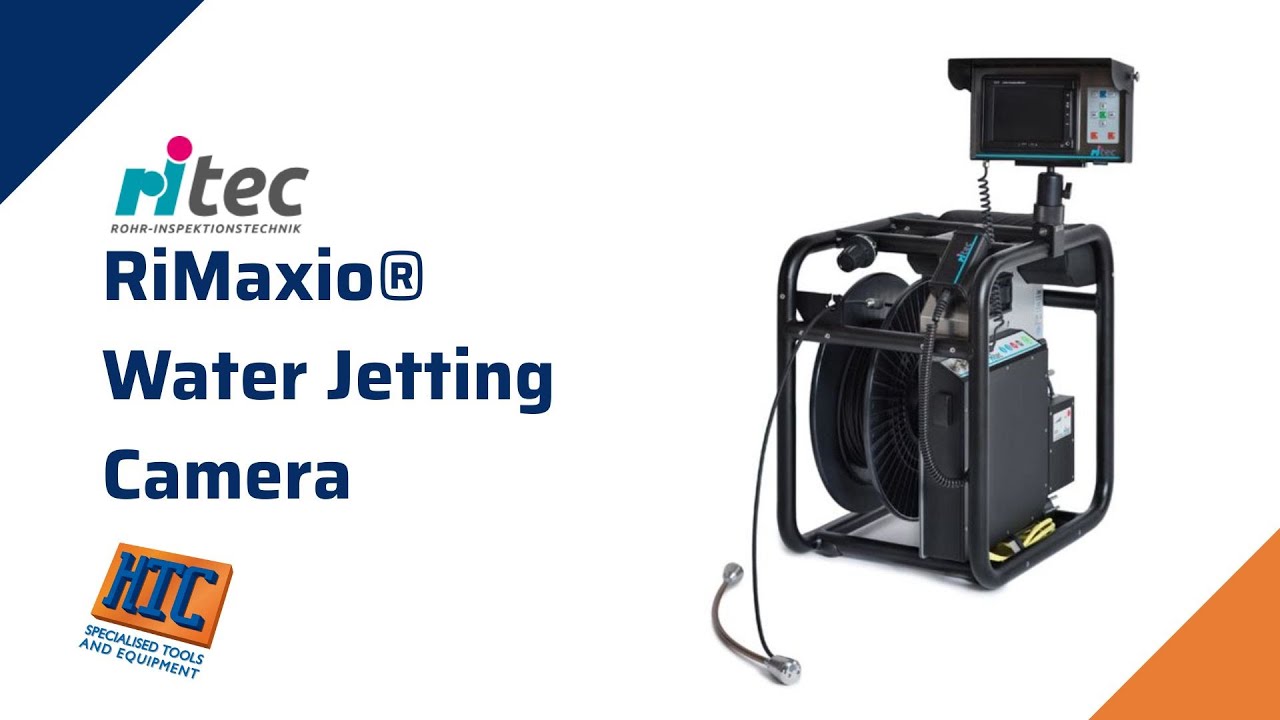

RiMaxio® cleaning and inspection system

RiMaxio® cleaning and inspection system

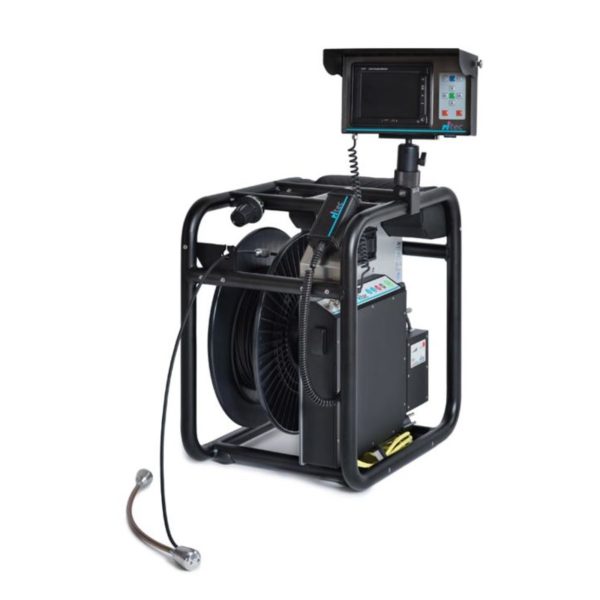

The mobile high-pressure water jetting camera is ideally suited for pipe inspection and effective cleaning under camera observation inside and outside buildings. You simply start the pipe cleaning from a manhole or inspection opening.

Category: Brand:
Enquire Now
Save or Print Page

More Information

  • Max. length of cable : 60 m
  • DN 50 – DN 200

Descrip­tion

  • Steerable high pressure jet camera through controllable nozzles via remote control
  • For cleaning and inspection from DN 50 – DN 200
  • Compact system
  • 45° bendable from DN 50
  • 87° bendable from DN 70
  • Turn off able 45° from DN 50
  • Turn off able 87° from DN 90
  • 60 m camera cable
  • Meter counter
  • All-round protection and high stability by circular cage
  • Simple handling
  • High grade wheel disc brake
  • High stability
  • Bag for small parts

Acces­sory (Optional)

  • 10.1″ monitor with integrated hard disk, data transferable via USB
  • TFT-monitor 5.6″
  • TFT-monitor 5.6″ with video and picture memory on SD memory card
  • Locating transmitter
  • Accumulator, operating time up to 7 hrs., in light lithium technique – Made in Germany
  • Transport trolley
