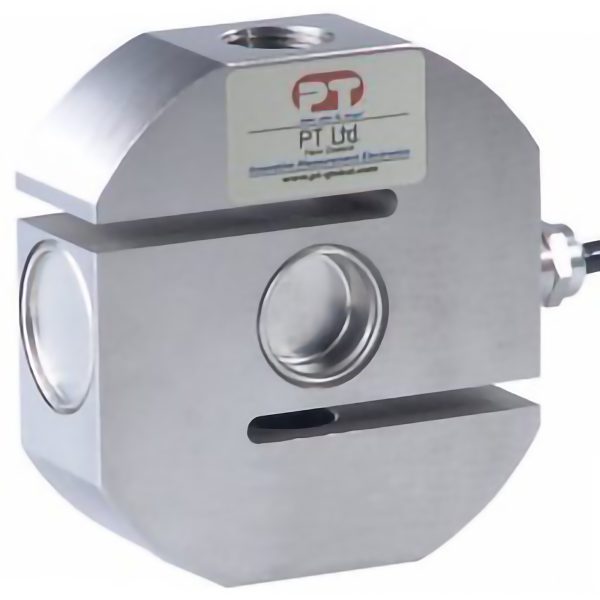

S Type Tension meters – LCSST ‘S’ Type

The LCSST is a compact stainless steel S-type load cell suitable for both tension and compression weighing.

Ideal for harsh environments, it’s fully welded stainless steel and sealed to IP67. Suitable for asphalt, concrete, and aggregate batching plants. Other popular uses include power line tensioning, underground cable pulling and hanging tanks, hoppers, and silos. High protection is complemented by an accuracy of 0.02% combined error and an output of 2mV/V.

Available in six capacities from 500kg to 7500kg all with metric threads and generous cable length.
