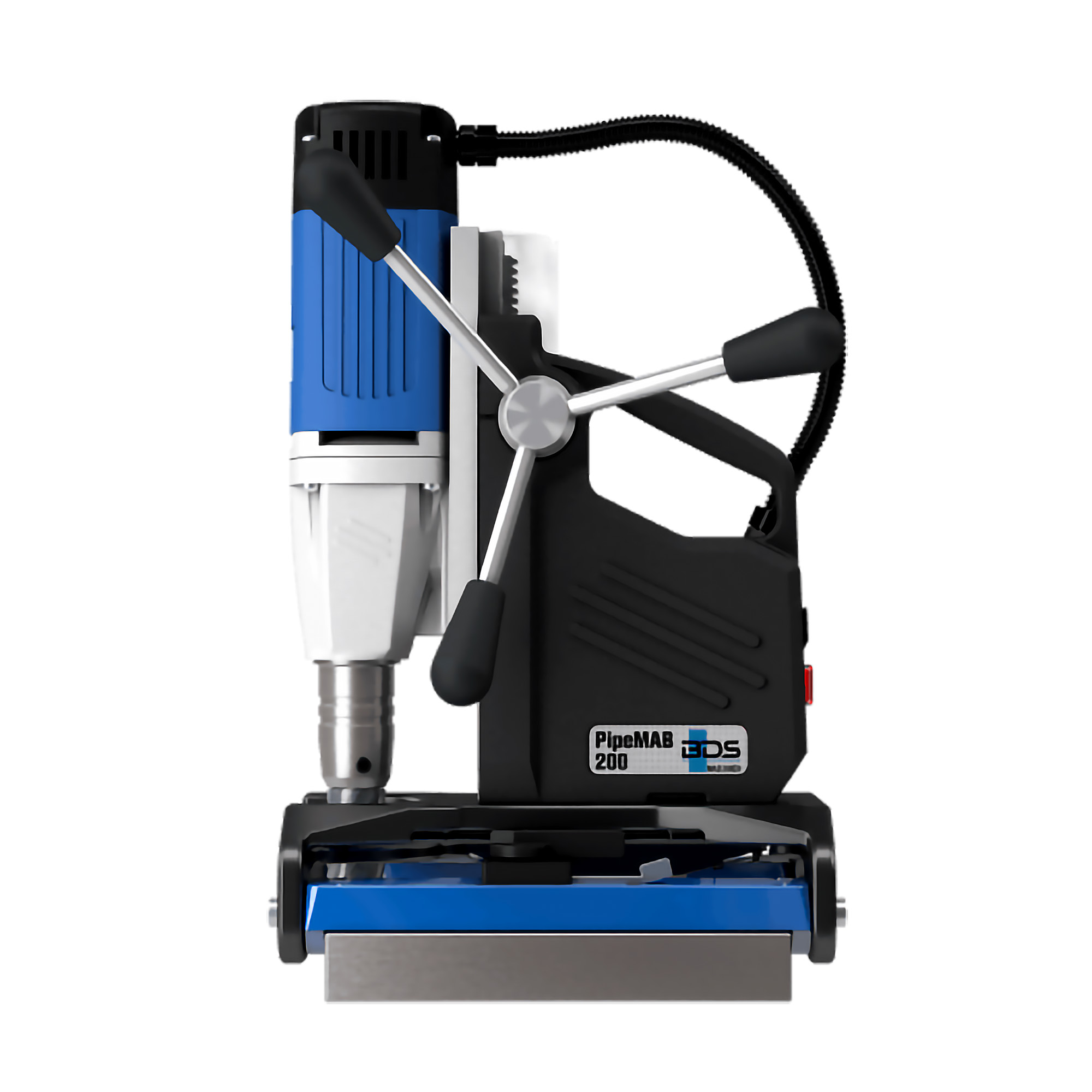

PipeMAB 200 Pipe Drilling Machine With Special Magnetic System
The patented pipe magnetic clamping system with two permanent magnets automatically adapts to the pipe diameter with powerful magnetic adhesion force up to 1020kg (20 mm material thickness).
- The swivel arrangement of the permanent magnets allows pivoting to conform to any pipe 75 mm (3″”) diameter or larger, on straight surfaces as well as inside and outside of the curve surfaces.
- Result: Fast, accurate and safe drilling with the BDS PipeMAB series.
More Information
- Ideal for drilling on curved & flat surfaces
- Patented shallow-field magnetic technology
- Permanent magnet, independent of electricity
- Suitable for pipes 75 mm (3”) or larger
- German-made lightweight and compact machine
- Strong grip for material as thin as 3 mm
- Elongated tool holder for maximum utilization of the machines’ stroke
- Made in Germany
- Core Drilling 35Â mm
- Cutting Depth 40 mm
- Powerful Motor 1050Â Watt
- Weight 16Â Kg
